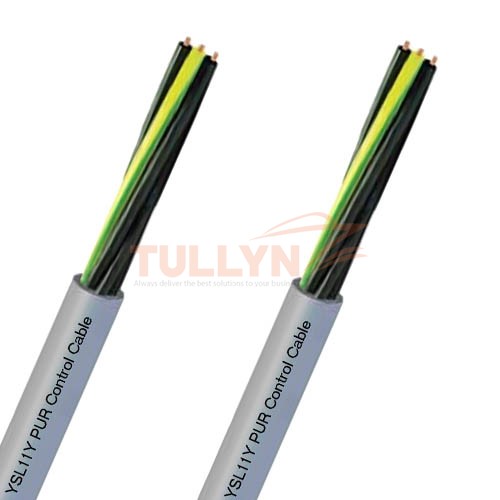

YSL11Y PUR Sheathed Control Cable
YSL11Y PUR Sheathed Control Cable Application
The specially Flexible Oil & Tear Resistant PUR Sheathed Control Cable, YSL11Y provides an excellent chemical and abrasion resistance as well as being tear resistant and halogen-free with low flame propagation. For use in harsh environments.
This YSL11Y Flexible PUR Control Cable is also intended for use in heavy-duty industrial applications where flexibility and heavy wear and tear are required. The PUR sheath makes this cable ideal for use in the machine tool, plant manufacturing, and power circuits because of it’s extreme durability.
Flexible Oil & Tear Resistant PUR Sheathed Control Cable YSL11Y Construction
| Conductor: | Bare, flexible stranded copper |
| Stranding: | According to VDE 0295 class 5, IEC 60228 |
| Insulation: | Black PVC, number coded, G / Y earth |
| Outer Sheath: | PUR Grey, RAL 7001, microbe and hydrolysis resistant,adhesion free, flame retardant |
YSL11Y PUR Sheathed Control Cable Technical Data
| Voltage: | Working:300/500V Test:2000V |
| Temperature Range: | Flexing:-5°C to +70°C Static:-40°C to +70°C |
| Bending Radius: | 12.5 x Ø |
Flexible Oil & Tear Resistant PUR Sheathed Control Cable Specification
| Number of cores and | Approx. outside diameter | Copper weight | Approx. weight |
| mm2 per conductor | mm | kg/km | kg/km |
| 2 x 0.5 | 5.9 | 10 | 39 |
| 3 G 0.5 | 6.2 | 14 | 46 |
| 4 G 0.5 | 6.9 | 19 | 56 |
| 5 G 0.5 | 7.4 | 24 | 65 |
| 7 G 0.5 | 9.1 | 34 | 92 |
| 12 G 0.5 | 11.3 | 58 | 149 |
| 18 G 0.5 | 13.2 | 86 | 207 |
| 25 G 0.5 | 15 | 120 | 274 |
| 34 G 0.5 | 18.7 | 163 | 392 |
| 41 G 0.5 | 20 | 197 | 458 |
| 2 X 0.75 | 6.4 | 14 | 48 |
| 3 G 0.75 | 6.8 | 22 | 58 |
| 4 G 0.75 | 7.4 | 29 | 67 |
| 5 G 0.75 | 8.6 | 36 | 88 |
| 7 G 0.75 | 10 | 50 | 119 |
| 12 G 0.75 | 12.4 | 86 | 193 |
| 18 G 0.75 | 14.4 | 130 | 269 |
| 25 G 0.75 | 17.2 | 180 | 378 |
| 34 G 0.75 | 20.4 | 245 | 508 |
| 41 G 0.75 | 22 | 295 | 598 |
| 2 x 1.0 | 6.8 | 19 | 57 |
| 3 G 1.0 | 7.2 | 29 | 69 |
| 4 G 1.0 | 8.2 | 38 | 90 |
| 5 G 1.0 | 9 | 48 | 107 |
| 7 G 1.0 | 11.1 | 67 | 151 |
| 12 G 1.0 | 13.2 | 115 | 233 |
| 18 G 1.0 | 15.4 | 173 | 328 |
| 25 G 1.0 | 19 | 240 | 479 |
| 34 G 1.0 | 21.8 | 326 | 616 |
| 41 G 1.0 | 23.4 | 394 | 727 |
| 2 x 1.5 | 7.4 | 29 | 73 |
| 3 G 1.5 | 8.3 | 43 | 96 |
| 4 G 1.5 | 9 | 58 | 118 |
| 5 G 1.5 | 9.8 | 72 | 140 |
| 7 G 1.5 | 12.2 | 101 | 197 |
| 12 G 1.5 | 14.5 | 173 | 309 |
| 18 G 1.5 | 17.6 | 259 | 458 |
| 25 G 1.5 | 20.7 | 360 | 635 |
| 34 G 1.5 | 24.6 | 490 | 851 |
| 41 G 1.5 | 26.3 | 590 | 1003 |
| 3 G 2.5 | 9.7 | 72 | 142 |
| 4 G 2.5 | 11 | 96 | 184 |
| 5 G 2.5 | 12.1 | 120 | 220 |
| 7 G 2.5 | 14.2 | 168 | 294 |
| 12 G 2.5 | 17.8 | 288 | 489 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
