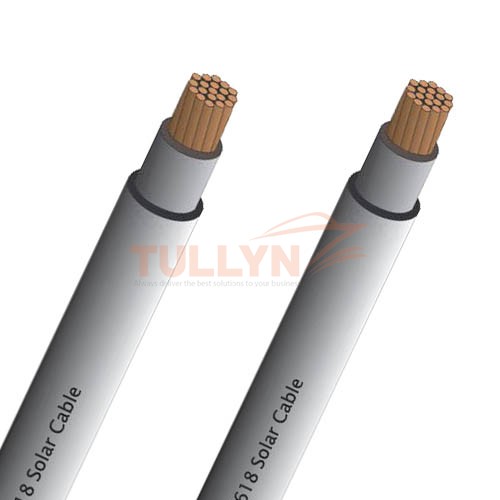

UL/EN 2000V AC Dual Insulation Solar Cable
UL/EN 2000V AC Dual Insulation Solar Cable Application
UL/EN 2000V AC Dual Insulation Solar Cable is specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.
UL/EN 2000V AC Dual Insulation Solar Cable is of EN50618 approval, Electron-beam cross-linked compounds dual insulated.This cable is UV, ozone and hydrolysis resistant and High temperature resistant.the materials do not melt or flow, has Good cold flexibility and has a very long service life >25 years at 90 °C. This solar cable is compatible with all popular connectors.
UL/EN 2000V AC Dual Insulation Solar Cable Standards
| Fire Performance | IEC 60332-1; UL 1581 1060 / VW1 |
| Smoke Emission | IEC 61034; EN 61034-2 |
| Low fire load | DIN 51900 |
| Approvals | EN50618; TÜV 2 PfG 1169/08.2007 PV1-F; TÜV 2 PfG 1990/05.2012 PV 1500 DC-F; UL 4703 PV wire; |
| Application standards | NEC 2008 /UL PV wire; UNE 21123; UNE 20.460-5-52, UTE C 32-502 |
UL/EN 2000V AC Dual Insulation Solar Cable Construction
| Conductor | Tinned fine copper strands acc. to VDE 0295 /IEC 60228, Class 5 |
| Insulation | XLPO, flame retardant, halogen free, electron-beam cross-linked |
| Sheath | XLPO, flame retardant, halogen free, electron-beam cross-linked, UV and ozone resistant, Black |
UL/EN 2000V AC Dual Insulation Solar Cable Technical Data
| Rated Voltage | EN 50618:2014 / 1500V DC UL4703 / 2000V AC |
| Operating temperature | –40 °C up to +120 °C –40 °F up to +248 °F |
| Max. short circuit temp. | –40 °C up to +90 °C –40 °F up to +194 °F |
| Bending radius | Fixed installation: >4 × OD Occasionally moved:>5 × OD |
UL/EN 2000V AC Dual Insulation Solar Cable Specification
| UL | Section Size | Conductor OD | Sheath OD | Weight | Conductor Resistance |
| AWG | mm2 | mm | mm | kg / kM | Ω/km |
| 14 | 2.5 | 2.05 | 6.85 | 65 | 8.21 |
| 12 | 4 | 2.55 | 7.05 | 76 | 5.09 |
| 10 | 6 | 3.1 | 7.6 | 97 | 3.39 |
| 8 | 10 | 4.1 | 9.7 | 162 | 1.95 |
Options:
200m/roll or 250m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
Photographs are not to scale and do not represent detailed images of the respective products.
