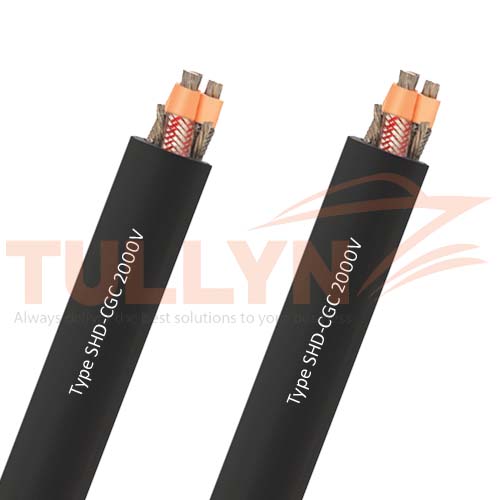

Type SHD-CGC Round Mining Portable Power Cable 2kV
Type SHD-CGC Round Mining Portable Power Cable 2kV Application
These SHD-CGC heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor and metallic shielding are required.
Type SHD-CGC cables are suitable for use in industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable, power cable for mobile and portable electrical equipment at a continuous conductor temperature of 90°C. Type SHD-CGC cables are suitable for use on three-phase AC systems where 3 or 4 conductors are needed and grounding is required. Excellent flexibility, resistance to oils, solvents, ozone, aging, and abrasion.
This portable mining cable has excellent impact and abrasion resistance, and withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals, Indent printed for easy identification Rope lay stranding for maximum flex life, cable core bound for superior flexibility and toughness.
Type SHD-CGC Round Mining Portable Power Cable 2kV Standard
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA-C22.2 No.96
Type SHD-CGC Round Mining Portable Power Cable 2kV Construction
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow insulation, located in the center of the cable. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
Type SHD-CGC Round Mining Portable Power Cable 2kV Specification
| Construction | Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Overall Diameter Height×Width |
Nominal Weight |
Ampacity |
| No. of cores× AWG/kcmil |
AWG/kcmil | AWG/kcmil | mm | mm | kg/km | A |
| 3×6 | 8 | 8 | 1.5 | 16.8×42.4 | 1340 | 79 |
| 3×4 | 7 | 8 | 1.5 | 18.3×47.5 | 1750 | 104 |
| 3×3 | 6 | 6 | 1.5 | 19.8×52.8 | 2080 | 120 |
| 3×2 | 5 | 6 | 1.5 | 21.6×56.6 | 2415 | 138 |
| 3×1 | 4 | 6 | 2 | 24.4×63.5 | 3110 | 161 |
| 3×1/0 | 3 | 5 | 2 | 25.6×67.8 | 3675 | 186 |
| 3×2/0 | 2 | 5 | 2 | 27.7×68.1 | 4375 | 215 |
| 3×3/0 | 1 | 5 | 2 | 30.0×79.2 | 5230 | 249 |
| 3×4/0 | 1/0 | 5 | 2 | 31.5×83.8 | 6315 | 287 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
