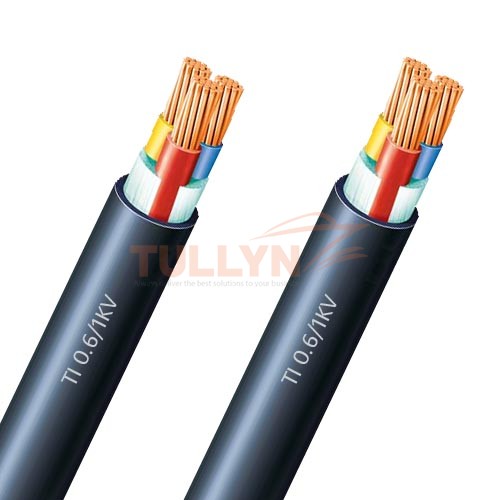

TI Unarmored Marine Power&Control Cable 0.6/1KV
TI Unarmored Marine Power&Control Cable Application
TI Unarmored marine cable suitable for marine application including ship wiring and shipboard cable where do not need armor protection. This cable is flame retardant. The other color of sheath and insulation may apply when purchaser required. Stranded tinned annealed copper wire as per IEC 60228, Class 2 may be applicable when purchaser required.
G/Y means green base color with a yellow stripe.
Control cable (2C, 3C, and 4C) shall be identified by the number printing.
Design Guide: IEC 60092-350 and IEC 60092-353
Insulation material: IEC 60092-351, XLPE Sheath material: IEC 60092-359, SHF1
Flame retardant: IEC60332-1 and IEC 60332-3 Category A
Halogen content: IEC60754-1, 0.5%↓ Smoke emission: IEC 61034, 60%↑
TI Unarmored Marine Power&Control Cable Construction
| Conductor: | Stranded plain annealed copper wires as per IEC 60228, class 2. |
| Insulation: | XLPE as per IEC60092-351 |
| Cabling: | Insulated conductors shall be cabled. Flame retardant and non-hygroscopic fillers may be used. Suitable tapes may be applied on the cabled core. |
| Sheath: | SHF1 as per IEC60092-359 |
| Colour: | Black |
| Core Identification: | 1 Core – Black 2 Core – Black and Light Blue 3 Core – Black, Brown and Light Blue 4 Core – Black, Blue, Brown, and White 5 Core and Above – White and numbered |
TI Unarmored Marine Power&Control Cable Specification
One Core Specification
| No of Cores |
Nominal area |
Max. Conductor dia. |
Nominal Overall diameter |
Tolerance of OD |
Min. Conductor resistance (at 20°C) |
Cable weight |
| Ea | mm² | mm | mm | ±mm | Ω/km | Kg/km |
| 1 | 1.5 | 1.7 | 5.3 | 0.5 | 12.1 | 40 |
| 1 | 2.5 | 2.1 | 5.7 | 0.5 | 7.41 | 60 |
| 1 | 4 | 2.7 | 6.3 | 0.5 | 4.61 | 70 |
| 1 | 6 | 3.3 | 6.8 | 0.5 | 3.08 | 100 |
| 1 | 10 | 4.2 | 7.8 | 0.6 | 1.83 | 140 |
| 1 | 16 | 5.3 | 9 | 0.6 | 1.15 | 210 |
| 1 | 25 | 6.6 | 10.7 | 0.7 | 0.727 | 320 |
| 1 | 35 | 7.9 | 12.1 | 0.7 | 0.524 | 420 |
| 1 | 50 | 9.1 | 13.6 | 0.8 | 0.387 | 550 |
| 1 | 70 | 11 | 15.8 | 0.8 | 0.268 | 780 |
| 1 | 95 | 12.9 | 17.9 | 0.9 | 0.193 | 1050 |
| 1 | 120 | 14.5 | 19.9 | 0.9 | 0.153 | 1310 |
| 1 | 150 | 16.2 | 21.9 | 1 | 0.124 | 1600 |
| 1 | 185 | 18 | 24.3 | 1.1 | 0.0991 | 2000 |
| 1 | 240 | 20.6 | 27.6 | 1.2 | 0.1754 | 2600 |
| 1 | 300 | 23.1 | 30.4 | 1.3 | 0.0601 | 3230 |
Please Note:
More Specifications, please check with our sales.
Photographs are not to scale and do not represent detailed images of the respective products. The above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
