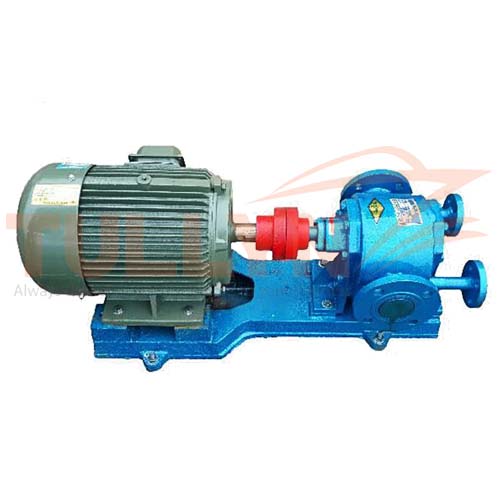

RCB Series High Viscosity Oil Transfer Gear Pump
RCB Series High Viscosity Oil Transfer Gear Pump Application
RCB Series High Viscosity Oil Transfer Gear Pump applies to transport the medium without causticity and without solid grains and with freezing nature under the normal temperature: Especially for the cases, outdoor installation in chilliness distinct and insulation demand in certain craftwork course. The medium temperature can reach up to 250 ℃, the viscid dimension is 5~1500cst.
It can transport heavy oil, asphalt, glue, colophony scour etc. This High Viscosity Oil Transfer Gear Pump is popular in many industries, such as chemical materials, filling of medicine, food service, cosmetic, pesticide, detergent, dyeing and finishing, brewing, resin, gel, etc.
There are a hollow sandwich and flange with inlet and outlet set on the body of the pump. It used for heating or cooling and keeping heat for liquid and pump when delivering the heat-conducting oil, steam and hot water.
RCB Series High Viscosity Oil Transfer Gear Pump Specification
| Model | Flow Capacity | Discharge Pressure |
Suction Vacuum |
Port size |
Motor | ||
| m3/h | L/min | Mpa | m | mm | KW | Model | |
| RCB-1 | 1 | 16.6 | 0.36 | 3 | Φ25 | 1.5 | Y90L-4 |
| RCB-1 | 1 | 16.6 | 0.8 | 3 | Φ25 | 1.5 | Y90L-4 |
| RCB-2 | 2 | 33.3 | 0.36 | 3 | Φ25 | 1.5 | Y90L-4 |
| RCB-2 | 2 | 33.3 | 0.8 | 3 | Φ25 | 2.2 | Y100L1-4 |
| RCB-3 | 3 | 50 | 0.36 | 3 | Φ25 | 1.5 | Y100L-6 |
| RCB-3 | 3 | 50 | 0.8 | 3 | Φ25 | 2.2 | Y112M-6 |
| RCB-5 | 5 | 83.3 | 0.36 | 3 | Φ40 | 2.2 | Y100L-4 |
| RCB-5 | 5 | 83.3 | 0.8 | 3 | Φ40 | 4 | Y112M-4 |
| RCB-6 | 6 | 100 | 0.36 | 3 | Φ40 | 2.2 | Y100L-4 |
| RCB-6 | 6 | 100 | 0.8 | 3 | Φ40 | 4 | Y112M-4 |
| RCB-8 | 8 | 133 | 0.36 | 3 | Φ50 | 4 | Y132M1-6 |
| RCB-8 | 8 | 133 | 0.8 | 3 | Φ50 | 5.5 | Y132M2-6 |
| RCB-10 | 10 | 167 | 0.36 | 3 | Φ50 | 4 | Y112M-4 |
| RCB-10 | 10 | 167 | 0.8 | 3 | Φ50 | 5.5 | Y132S-4 |
| RCB-12 | 12 | 200 | 0.36 | 3 | Φ55 | 4 | Y132M-6 |
| RCB-12 | 12 | 200 | 0.8 | 3 | Φ55 | 5.5 | Y132M2-6 |
| RCB-18 | 18 | 300 | 0.36 | 3 | Φ55 | 5.5 | Y132S-4 |
| RCB-18 | 18 | 300 | 0.8 | 3 | Φ55 | 7.5 | Y132M-4 |
| RCB-18 | 18 | 300 | 0.36 | 3 | Φ70 | 5.5 | Y132M2-6 |
| RCB-18 | 18 | 300 | 0.8 | 3 | Φ70 | 7.5 | Y160M-6 |
| RCB-29 | 29 | 483.3 | 0.36 | 3 | Φ70 | 7.5 | Y132M-4 |
| RCB-29 | 29 | 483.3 | 0.8 | 3 | Φ70 | 11 | Y160M-4 |
| RCB-38 | 38 | 633 | 0.36 | 3 | Φ100 | 11 | Y160L-6 |
| RCB-38 | 38 | 633 | 0.8 | 3 | Φ100 | 15 | Y180L-6 |
| RCB-58 | 58 | 960 | 0.36 | 3 | Φ100 | 18.5 | Y180M-4 |
| RCB-58 | 58 | 960 | 0.8 | 3 | Φ100 | 22 | Y180L-4 |
| RCB-45 | 45 | 750 | 0.36 | 3 | Φ100 | 18.5 | Y200L-6 |
| RCB-45 | 45 | 750 | 0.8 | 3 | Φ100 | 30 | Y225M-6 |
| RCB-65 | 65 | 1083 | 0.36 | 3 | Φ100 | 30 | Y200L-4 |
| RCB-65 | 65 | 1083 | 0.8 | 3 | Φ100 | 37 | Y200L-4 |
| RCB-72 | 72 | 1200 | 0.28 | 3 | Φ150 | 37 | Y280S-8 |
| RCB-96 | 96 | 1600 | 0.28 | 3 | Φ150 | 45 | Y280S-6 |
| RCB-110 | 110 | 1800 | 0.28 | 3 | Φ200 | 55 | Y315S-8 |
| RCB-150 | 150 | 2500 | 0.28 | 3 | Φ200 | 75 | Y315S-6 |
| RCB-228 | 228 | 3800 | 0.28 | 3 | Φ250 | 90 | Y315L-8 |
| RCB-324 | 324 | 5400 | 0.28 | 3 | Φ250 | 110 | Y315L-6 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
