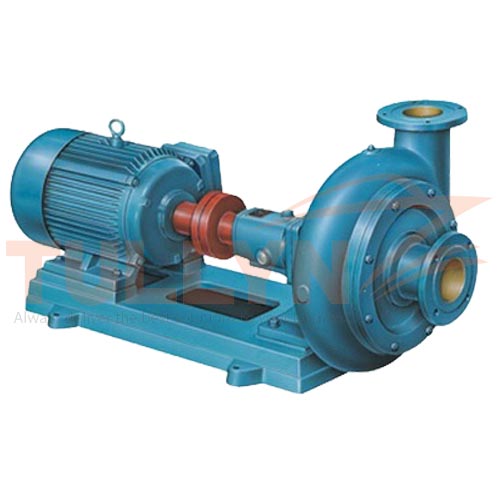

PW Series Horizontal Centrifugal Sewage Water Pump
PW Series Horizontal Centrifugal Sewage Water Pump Application
PW Series Horizontal Centrifugal Sewage Water Pump is suitable for use with clean water that does not contain abrasive particles or other similar water liquid. It is widely used in domestic water, automatic boosting, water tower supply, well water lifting, solar hot water boosting.
PW sewage pumps are horizontal and cantilever centrifugal sewage pumps, which suitable for transfer sewage below 80 cent-degrees; excellent design allows the PW pump to pump any solids that pass through the pump suction, even stringy, fibrous or tramp material.
PW type pump is single stage, single suck, horizontal cantilever centrifugal sewage pump. They are applicable to transport liquids which contain fiber and other suspending substances and whose temperature doesn’t exceed 80 centigrade. PW pump transport sewage and waste residue for civil, industrial, mining, toilet.
PW Series Horizontal Centrifugal Sewage Water Pump Specification
| Model | Power | Max.Flow | Max. Head | Head Range | Max.Suction | |
| KW | HP | (m3/h) | (m) | (m) | (m) | |
| PW250(220V-60Hz) | 0.25 | 0.34 | 2.2 | 30 | 1-26 | 8 |
| PW370(220V-60Hz) | 0.37 | 0.5 | 2.4 | 36 | 1-32 | 8 |
| PW550(220V-60Hz) | 0.55 | 0.75 | 3 | 42 | 1.5-38 | 8 |
| PW750(220V-60Hz) | 0.75 | 1 | 3.4 | 50 | 1.5-4.6 | 8 |
| PW250(220V-60Hz) | 0.25 | 0.34 | 2.2 | 30 | 1-26 | 8 |
| PW370(220V-60Hz) | 0.37 | 0.5 | 2.4 | 36 | 1-32 | 8 |
| PW550(220V-60Hz) | 0.55 | 0.75 | 3 | 42 | 1.5-38 | 8 |
| PW750(220V-60Hz) | 0.75 | 1 | 3.4 | 50 | 1.5-46 | 8 |
| PW250(110V/220V-60Hz) | 0.25 | 0.34 | 2.2 | 30 | 1-26 | 8 |
| PW370(110V/220V-60Hz) | 0.37 | 0.5 | 2.4 | 36 | 1-32 | 8 |
| PW550(110V/220V-60Hz) | 0.55 | 0.75 | 3 | 42 | 1.5-38 | 8 |
| PW750(110V/220V-60Hz) | 0.75 | 1 | 3.4 | 50 | 1.5-46 | 8 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
