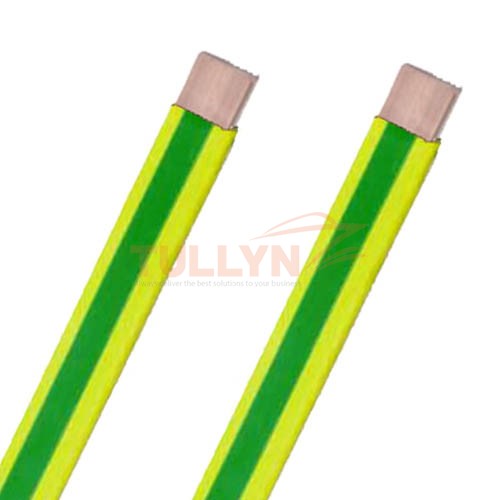

PVC Coated Copper Grounding Tape Green/Yellow
Green Yellow PVC Coated Copper Grounding Tape Application
Copper Tape is by far the most important component of any earth or structural lightning protection system.PVC Coated Copper Grounding Tape is designed for use as the conductor in earthing and lightning protection systems.
PVC Coated Copper Grounding Tape is used as earthing and lightning for electrical transmission and distribution, power generator and electronic applications.PVC Coated Copper Grounding Tape is mainly used as down conductors on a building’s structural lightning protection system. The copper is manufactured to BS EN 13601 and is annealed for ease of use.
This Green/Yellow earthing tape is made to match the most common building materials and provide an aesthetic finish to the external lightning protection system. All PVC coverings are UV established although some discoloration may occur over time.
Green/Yellow PVC Coated Copper Earthing Tape Construction
| Conductor material: | Bare copper tape |
| Sheath: | PVC |
Green/Yellow PVC Coated Copper Earthing Tape Physical Properties
| Thickness of PVC sheath | 2.0mm |
| Electrical resistance of copper at 20°C | 0.0176Wmm2/m |
| Copper melting point | 1083°C |
| Current density at which the conductor temperature rises from 40°C to 150°C in a time of 1 s if all heat is retained in conductor |
140A/mm2 |
Green/Yellow PVC Coated Copper Grounding Tape Specification
| Colour | Dimensions | Cross Section Area / Thickness | Weight Per Metre | Standard Coil Size |
| Green/Yellow | 12.5mm x 1.5mm | 18.75mm2 | 0.21kg | 100m |
| Green/Yellow | 25mm x 3mm | 75mm2 | 0.77kg | 25m & 50m |
| Green/Yellow | 25mm x 6mm | 150mm2 | 1.33kg | 40m |
| Green/Yellow | 50mm x 3mm | 150mm2 | 1.33kg | 40m |
| Green/Yellow | 50mm x 6mm | 300mm2 | 2.68kg | 20m |
25m/roll or 50m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
