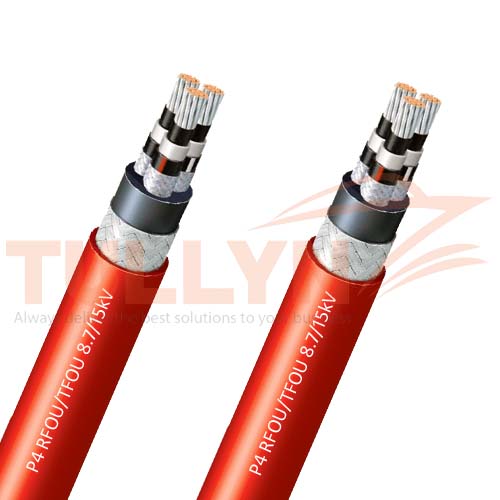

P4 RFOU/TFOU 8.7/15kV Offshore Cable
P4 RFOU/TFOU 8.7/15kV Offshore Cable Application
P4 RFOU/TFOU 8.7/15kV Offshore Cables are partially water blocked, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.
These P4 RFOU/TFOU 8.7/15kV cables are flame retardant, low smoke, halogen free and mud resistant. This Cable is intended for fixed installation for energy transmission or power feeder with a rated voltage of 6/10KV. These cables can be installed on drilling ships, drilling platforms ( jack up, semi-submersible), Production Platforms ( TLP, semi-submersible, SPAR, fixed platforms) and FPSO/FSO.
P4 RFOU/TFOU 8.7/15kV Offshore Cable Standards
| Design | IEC60092-354 |
| Conductor | IEC60228 |
| Insulation | IEC60092-351 |
| sheathed | IEC60092-359 |
| Flame Retardant | IEC 60332-1,IEC60332-3-22 |
| Smoke Density | IEC61034 |
P4 RFOU/TFOU 8.7/15kV Offshore Cable Construction
| Classification | Code | Construction details |
| Conductor | Tinned Annealed Stranded Copper Wire | |
| Conductor Screening | Semiconducting tape | |
| Insulation | R/T | EP Rubber/XLPE |
| Insulation Screening | Semiconducting material and tinned copper wire braid | |
| Filler | Water blocking fillers, if required | |
| Bedding | Halogen free compound, PETP wrapping tape will be applied over the bedding, if required | |
| Inner Sheath | F | Halogen free thermosetting compound |
| Armor | O | Tinned Copper wire braided |
| Outer Sheath | U | Halogen-free Thermosetting compound SHF2 |
P4 RFOU/TFOU 8.7/15kV Offshore Cable Electrical Characteristics
| Nominal Cross Section Area | mm² | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
| Nominal Conductor Diameter | mm | 5.2 | 6.5 | 7.4 | 8.7 | 10.3 | 12.2 | 13.8 |
| Maximum DC Resistant@20℃ | Ω/km | 1.16 | 0.734 | 0.529 | 0.391 | 0.27 | 0.195 | 0.154 |
| Continuous Current Rating@45℃1 Core | A | 96 | 127 | 157 | 196 | 242 | 293 | 339 |
| Continuous Current Rating@45℃3 Core | A | 67 | 89 | 110 | 137 | 169 | 205 | 237 |
| Short Circuit Current 1s | A | 2290 | 3580 | 5010 | 7150 | 10020 | 13590 | 17170 |
| Operating Voltage | KV | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 |
| Nominal Cross Section Area | mm² | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
| Nominal Conductor Diameter | mm | 15.1 | 17.0 | 19.6 | 21.9 | 24.5 | 27.5 | 32.3 |
| Maximum DC Resistant@20℃ | Ω/km | 0.126 | 0.1 | 0.0762 | 0.0607 | 0.0475 | 0.0369 | 0.0286 |
| Continuous Current Rating@45℃1 Core | A | 389 | 444 | 522 | 601 | 690 | 780 | 890 |
| Continuous Current Rating@45℃3 Core | A | 272 | 311 | 365 | 421 | 483 | 546 | 623 |
| Short Circuit Current 1s | A | 21460 | 26470 | 34340 | 42930 | 57230 | 71540 | 90140 |
| Operating Voltage | KV | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 | 8.7/15 |
Ambient Temperature Correction Factors
| Ambient Temperature Correction Factors | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Rating Factor | 1.1 | 1.05 | 1.0 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
P4 RFOU/TFOU 8.7/15kV Offshore Cable Dimensions and Weight
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
| (mm²) | mm | mm | kg/km |
| 1×25 | 4.5 | 28.4 | 1305 |
| 1×35 | 4.5 | 29.3 | 1430 |
| 1×50 | 4.5 | 30.7 | 1620 |
| 1×70 | 4.5 | 32.4 | 1900 |
| 1×95 | 4.5 | 34.4 | 2250 |
| 1×120 | 4.5 | 36.6 | 2625 |
| 1×150 | 4.5 | 38.1 | 2940 |
| 1×185 | 4.5 | 40.6 | 3545 |
| 1×240 | 4.5 | 43.4 | 4220 |
| 1×300 | 4.5 | 46.3 | 5070 |
| 1×400 | 4.5 | 50.2 | 5760 |
| 1×500 | 4.5 | 53.6 | 6880 |
| 1×630 | 4.5 | 57.9 | 8460 |
| 3×25 | 4.5 | 55.3 | 4725 |
| 3×35 | 4.5 | 57.5 | 5215 |
| 3×50 | 4.5 | 60.6 | 5960 |
| 3×70 | 4.5 | 64.4 | 7035 |
| 3×95 | 4.5 | 68.7 | 8370 |
| 3×120 | 4.5 | 72.7 | 9745 |
| 3×150 | 4.5 | 76.8 | 11140 |
| 3×185 | 4.5 | 84.2 | 13490 |
| 3×240 | 4.5 | 90.6 | 15860 |
| 3×300 | 4.5 | 96.6 | 18320 |
| 3×240 | 3.4 | 79.5 | 13300 |
| 3×300 | 3.4 | 85 | 16300 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
