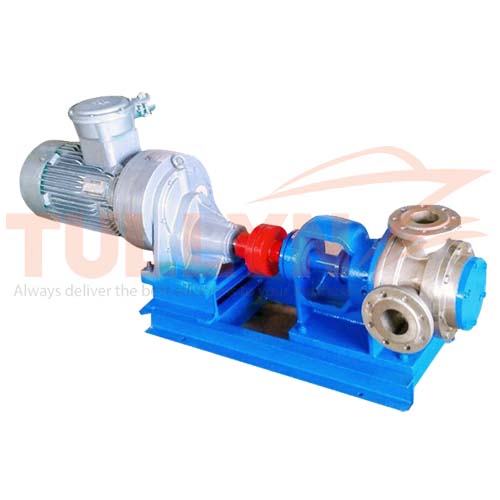

NYP Type High Viscosity Stainless Steel Internal Gear Pump
NYP Type High Viscosity Stainless Steel Internal Gear Pump Application
NYP Type High Viscosity Stainless Steel Internal Gear Pump is a sort of new positive displacement pump, which is designed to use in the different fields, such as petroleum, chemical industry, paint, medicine, and so on. It is widely applied to many kinds of media with the different trait and viscosity value because of unique structure and selected materials.
NYP gear pump is a kind of internal gear oil pump, which is very special for the high viscosity liquid. This pump has the same rotary direction of the internal gear and external gear, resulting in low noise, little wear(anti-abrasion), and long operation life.
The pump is mainly used as a supply pump for non-corrosive oil at a temp below 120 C degree, viscosity range 1 to 300,000cst.
(1) Oil industry(high thick oil, like crude oil, heavy oil etc)
(2) Chemical industry(emulsion, resin, glue etc high viscosity chemical liquid)
(3) Coating industry( Paint, coating etc)
(4) Grease industry(butter, fat etc)
(5) Medicine industry(medicine liquid)
(6) Food industry(honey, syrup, molasses, cream, yogurt etc)
NYP Type High Viscosity Stainless Steel Internal Gear Pump Specification
| Model | Dia | Displace-ment | Viscosity | Speed | Differential pressure | Connection form |
|||
| (mm) | (L/100rev) | (cSt) | (r/min) | (MPa) | |||||
| 0.4 | 0.6 | 0.8 | 1 | ||||||
| Shaft power (kw)/Capacity(L/min) | |||||||||
| NYP0.78 | 15 | 0.78 | 20 | 1390 | 0.17/9.3 | 0.23/9.0 | 0.28/8.8 | 0.32/8.6 | G1/2′ |
| NYP0.78 | 15 | 0.78 | 60 | 1390 | 0.18/9.5 | 0.24/9.2 | 0.28/9.0 | 0.33/8.9 | G1/2′ |
| NYP0.78 | 15 | 0.78 | 200 | 1390 | 0.31/10.4 | 0.35/10.2 | 0.39/10.0 | 0.43/9.9 | G1/2′ |
| NYP0.78 | 15 | 0.78 | 600 | 1390 | 0.39/10.4 | 0.44/10.3 | 0.48/10.3 | 0.52/10.2 | G1/2′ |
| NYP0.78 | 15 | 0.78 | 2000 | 910 | 0.23/6.8 | 0.27/6.8 | 0.30/6.8 | 0.33/6.7 | G1/2′ |
| NYP0.78 | 15 | 0.78 | 6000 | 720 | 0.24/5.4 | 0.31/6.1 | 0.30/6.8 | 0.40/6.8 | G1/2′ |
| NYP2.3 | 25 | 2.3 | 20 | 1400 | 0.38/28.4 | 0.49/27.5 | – | – | G1′ |
| NYP2.3 | 25 | 2.3 | 60 | 1400 | 0.59/29.2 | 0.65/28.8 | – | – | G1′ |
| NYP2.3 | 25 | 2.3 | 200 | 1400 | 0.61/30.0 | 0.72/29.6 | – | – | G1′ |
| NYP2.3 | 25 | 2.3 | 600 | 1400 | 0.92/31.9 | 0.96/31.7 | – | – | G1′ |
| NYP2.3 | 25 | 2.3 | 2000 | 910 | 0.61/19.9 | 0.68/19.7 | – | – | G1′ |
| NYP2.3 | 25 | 2.3 | 6000 | 720 | 0.77/16.32 | 0.83/16.2 | – | – | G1′ |
| NYP3.6 | 40 | 3.6 | 20 | 1450 | 0.69/46.7 | 0.94/45.9 | 1.18/45 | 1.44/43.4 | Flange |
| NYP3.6 | 40 | 3.6 | 60 | 1450 | 0.81/47.5 | 1.09/46.7 | 1.37/45.9 | 1.57/44.7 | Flange |
| NYP3.6 | 40 | 3.6 | 200 | 1450 | 1.06/49.7 | 1.31/49.2 | 1.56/48.8 | 1.79/47.3 | Flange |
| NYP3.6 | 40 | 3.6 | 600 | 1450 | 1.45/49.9 | 1.61/49.6 | 1.77/49.3 | 1.93/49 | Flange |
| NYP3.6 | 40 | 3.6 | 2000 | 960 | 1.28/34.3 | 1.41/33.8 | 1.54/33.7 | 1.65/33.6 | Flange |
| NYP3.6 | 40 | 3.6 | 6000 | 640 | 1.08/23.0 | 1.18/22.9 | 1.28/22.9 | 1.37/22.8 | Flange |
| NYP3.6 | 40 | 3.6 | 20000 | 583 | 1.22/20.5 | 1.24/20.4 | 1.25/20.4 | 1.38/20.3 | Flange |
| NYP3.6 | 40 | 3.6 | 60000 | 455 | 0.84/16.3 | 0.91/16.2 | 0.98/16.1 | 1.01/16 | Flange |
| NYP7.0 | 40 | 7 | 20 | 1450 | 1.36/98.1 | 1.8/96 | 2.0/94.7 | 2.4/93 | Thread |
| NYP7.0A | 40 | 7 | 60 | 1450 | 1.45/99 | 1.9/97 | 2.2/96.4 | 2.6/95 | Thread |
| NYP7.0A | 40 | 7 | 200 | 1450 | 1.62/99.8 | 2.0/98 | 2.3/97.5 | 2.7/97 | Thread |
| NYP7.0A | 40 | 7 | 600 | 960 | 1.4/62 | 1.6/65 | 1.8/44 | 2.0/64 | Thread |
| NYP7.0A | 40 | 7 | 2000 | 960 | 1.8/67 | 2.0/66 | 2.3/65 | 2.6/65 | Thread |
| NYP7.0A | 40 | 7 | 6000 | 640 | 1.5/44.5 | 1.7/44 | 1.8/44 | 2.0/44 | Thread |
| NYP7.0A | 40 | 7 | 20000 | 583 | 1.6/40.5 | 1.9/40 | 2.1/40 | 2.2/40 | Thread |
| NYP7.0A | 40 | 7 | 60000 | 455 | 1.46/31.5 | 1.8/31 | 1.9/31 | 2.0/31 | Thread |
| NYP24 | 50 | 24 | 20 | 720 | 1.8/165 | 2.3/161 | 2.8/158 | 3.4/155 | Flange |
| NYP24 | 50 | 24 | 60 | 720 | 2.0/166 | 2.6/164 | 3.1/162 | 3.7/158 | Flange |
| NYP24 | 50 | 24 | 200 | 610 | 1.9/143 | 2.5/141 | 3.0/139 | 3.5/136 | Flange |
| NYP24 | 50 | 24 | 600 | 541 | 2.1/127 | 2.6/125 | 3.0/124 | 3.5/122 | Flange |
| NYP24 | 50 | 24 | 2000 | 475 | 2.2/112 | 2.6/111 | 2.9/110 | 3.4/109 | Flange |
| NYP24 | 50 | 24 | 6000 | 357 | 2.0/85 | 2.3/84 | 2.6/83 | 2.9/83 | Flange |
| NYP24 | 50 | 24 | 20000 | 303 | 1.9/72 | 2.2/72 | 2.4/72 | 2.6/71 | Flange |
| NYP24 | 50 | 24 | 60000 | 228 | 1.6/54 | 1.8/54 | 2.0/54 | 2.3/54 | Flange |
| NYP52 | 50 | 52 | 20 | 720 | 4.3/362 | 5.8/355 | 6.9/348 | 8.1/340 | Thread |
| NYP52A | 50 | 52 | 60 | 720 | 4.7/364 | 6.2/358 | 7.3/352 | 7.5/346 | Thread |
| NYP52A | 50 | 52 | 200 | 610 | 4.6/309 | 5.9/304 | 6.9/300 | 8.0/294 | Thread |
| NYP52A | 50 | 52 | 600 | 541 | 4.9/275 | 6.0/271 | 6.8/268 | 7.8/264 | Thread |
| NYP52A | 50 | 52 | 2000 | 475 | 5.0/243 | 5.9/238 | 6.6/237 | 7.6/235 | Thread |
| NYP52A | 50 | 52 | 6000 | 357 | 4.1/184 | 4.9/182 | 5.3/181 | 6.2/180 | Thread |
| NYP52A | 50 | 52 | 20000 | 303 | 3.8/157 | 4.6/156 | 5.1/155 | 5.6/155 | Thread |
| NYP52A | 50 | 52 | 60000 | 228 | 3.1/119 | 3.7/118 | 4.0/118 | 4.5/118 | Thread |
| NYP80 | 80 | 80 | 20 | 615 | 5.2/471 | 6.9/461 | 8.5/451 | 10.0/433 | Flange |
| NYP80 | 80 | 80 | 60 | 615 | 5.5/474 | 7.2/465 | 8.8/457 | 10.5/448 | Flange |
| NYP80 | 80 | 80 | 200 | 544 | 5.7/421 | 7.2/414 | 8.6/408 | 10.1/401 | Flange |
| NYP80 | 80 | 80 | 600 | 479 | 6.0/372 | 7.3/367 | 8.5/362 | 9.8/356 | Flange |
| NYP80 | 80 | 80 | 2000 | 417 | 6.5/326 | 7.7/322 | 8.9/319 | 10.1/315 | Flange |
| NYP80 | 80 | 80 | 6000 | 305 | 5.6/239 | 6.6/237 | 7.5/326 | 8.4/233 | Flange |
| NYP80 | 80 | 80 | 20000 | 228 | 5.5/180 | 6.4/179 | 6.9/178 | 7.7/177 | Flange |
| NYP80 | 80 | 80 | 60000 | 188 | 5.5/149 | 6.1/149 | 6.7/149 | 7.2/148 | Flange |
| NYP111 | 80 | 111.4 | 20 | 615 | 6.7/660 | 9.2/647 | 11.2/634 | 13.6/622 | Flange |
| NYP111A | 80 | 111.4 | 60 | 615 | 6.9/664 | 9.4/652 | 11.5/642 | 13.9/631 | Flange |
| NYP111A | 80 | 111.4 | 200 | 544 | 7.1/589 | 9.3/580 | 11.0/573 | 13.2/563 | Flange |
| NYP111A | 80 | 111.4 | 600 | 479 | 7.3/521 | 9.5/514 | 11.1/508 | 13.1/502 | Flange |
| NYP111A | 80 | 111.4 | 2000 | 417 | 7.7/455 | 9.7/450 | 11.0/447 | 12.7/442 | Flange |
| NYP111A | 80 | 111.4 | 6000 | 305 | 6.9/335 | 8.4/332 | 9.4/331 | 10.6/328 | Flange |
| NYP111A | 80 | 111.4 | 20000 | 228 | 6.3/251 | 7.5/250 | 8.2/249 | 9.2/248 | Flange |
| NYP111A | 80 | 111.4 | 60000 | 188 | 6.2/209 | 7.1/208 | 7.6/208 | 8.5/207 | Flange |
| NYP160 | 100 | 160 | 20 | 600 | 8.9/930 | 12.1/916 | 15.3/902 | 17.5/888 | Flange |
| NYP160 | 100 | 160 | 60 | 600 | 9.4/935 | 12.6/922 | 15.8/910 | 19.0/898 | Flange |
| NYP160 | 100 | 160 | 200 | 550 | 12.3/866 | 15.3/859 | 18.3/852 | 21.3/845 | Flange |
| NYP160 | 100 | 160 | 600 | 480 | 10.2/754 | 12.8/747 | 15.4/740 | 18.0/737 | Flange |
| NYP160 | 100 | 160 | 2000 | 355 | 9.1/560 | 11.1/556 | 13/552 | 15.1/548 | Flange |
| NYP160 | 100 | 160 | 6000 | 319 | 10.0/505 | 11.7/502 | 13.5/500 | 15.2/497 | Flange |
| NYP220 | 125 | 220 | 20 | 430 | 8.8/902 | 11.9/880 | 15.0/858 | 18.0/836 | Flange |
| NYP220 | 125 | 220 | 60 | 430 | 9.0/909 | 12.0/890 | 15.0/871 | 18.0/852 | Flange |
| NYP220 | 125 | 220 | 200 | 355 | 8.5/753 | 11.1/739 | 13.7/726 | 16.3/713 | Flange |
| NYP220 | 125 | 220 | 600 | 320 | 9.4/682 | 11.8/671 | 14.1/660 | 16.5/649 | Flange |
| NYP220 | 125 | 220 | 2000 | 254 | 9.1/544 | 11.0/537 | 13.0/530 | 15.1/523 | Flange |
| NYP220 | 125 | 220 | 6000 | 244 | 10.1/483 | 11.9/478 | 13.6/473 | 15.4/468 | Flange |
| NYP220 | 125 | 220 | 20000 | 160 | 9.1/347 | 10.5/345 | 11.9/343 | 13.3/341 | Flange |
| NYP220 | 125 | 220 | 60000 | 117 | 8.4/256 | 9.4/255 | 10.4/254 | 11.4/253 | Flange |
| NYP320 | 125 | 320 | 20 | 430 | 13.0/1306 | 18.0/1270 | 22.0/1235 | 26.0/1200 | Flange |
| NYP320 | 125 | 320 | 60 | 430 | 13.0/1316 | 18.5/1285 | 22.0/1255 | 26.5/1225 | Flange |
| NYP320 | 125 | 320 | 200 | 355 | 11.8/1091 | 15.5/1068 | 19.1/1046 | 22.8/1024 | Flange |
| NYP320 | 125 | 320 | 600 | 320 | 13.2/987 | 16.5/968 | 19.7/950 | 22.9/932 | Flange |
| NYP320 | 125 | 320 | 2000 | 284 | 14.2/881 | 17.4/867 | 20.6/854 | 23.8/841 | Flange |
| NYP320 | 125 | 320 | 6000 | 222 | 13.7/693 | 16.2/684 | 18.7/675 | 21.2/666 | Flange |
| NYP320 | 125 | 320 | 20000 | 168 | 13.2/529 | 15.3/525 | 17.3/522 | 19.4/519 | Flange |
| NYP320 | 125 | 320 | 60000 | 125 | 12.0/397 | 13.7/396 | 15.3/395 | 16.9/394 | Flange |
| NYP650 | 150 | 650 | 20 | 315 | 19.0/1921 | 26.0/1857 | 33.0/1794 | – | Flange |
| NYP650 | 150 | 650 | 60 | 315 | 20.0/1940 | 26.4/1886 | 33.2/1832 | – | Flange |
| NYP650 | 150 | 650 | 200 | 284 | 17.9/1756 | 24.0/1711 | 30.4/1666 | – | Flange |
| NYP650 | 150 | 650 | 600 | 253 | 17.6/1572 | 22.7/1534 | 28.9/1500 | – | Flange |
| NYP650 | 150 | 650 | 2000 | 196 | 15.7/1225 | 20.6/1201 | 24.5/1176 | – | Flange |
| NYP650 | 150 | 650 | 6000 | 160 | 16.0/1008 | 19.8/993 | 22.3/978 | – | Flange |
| NYP650 | 150 | 650 | 20000 | 117 | 13.6/745 | 16.5/738 | 19.2/731 | – | Flange |
| NYP650 | 150 | 650 | 60000 | 100 | 15.0/645 | 17.2/643 | 19.5/640 | – | Flange |
| NYP727 | 150 | 727 | 20 | 315 | 21.5/2135 | 29.4/2058 | 37.3/1980 | – | Flange |
| NYP727 | 150 | 727 | 60 | 315 | 22.4/2157 | 29.8/2090 | 37.3/2026 | – | Flange |
| NYP727 | 150 | 727 | 200 | 280 | 19.6/1928 | 26.7/1874 | 33.5/1820 | – | Flange |
| NYP727 | 150 | 727 | 600 | 245 | 19.6/1696 | 25.1/1652 | 31.2/1611 | – | Flange |
| NYP727 | 150 | 727 | 2000 | 200 | 18.7/1394 | 23.3/1363 | 28.5/1334 | – | Flange |
| NYP727 | 150 | 727 | 6000 | 170 | 19.2/1195 | 23.3/1175 | 27.9/1155 | – | Flange |
| NYP727 | 150 | 727 | 20000 | 125 | 17.0/888 | 20.1/878 | 23.3/868 | – | Flange |
| NYP727 | 150 | 727 | 60000 | 100 | 16.8/720 | 19.5/717 | 22.3/713 | – | Flange |
| NYP1670 | 200 | 1670 | 20 | 250 | 38.0/3852 | 52.0/3690 | 66.0/3529 | – | Flange |
| NYP1670 | 200 | 1670 | 60 | 250 | 40.0/3900 | 54.0/3763 | 68.0/3626 | – | Flange |
| NYP1670 | 200 | 1670 | 200 | 225 | 37.5/3535 | 50.0/3424 | 62.5/3313 | – | Flange |
| NYP1670 | 200 | 1670 | 600 | 195 | 37.0/3079 | 48.0/2990 | 58.6/2900 | – | Flange |
| NYP1670 | 200 | 1670 | 2000 | 160 | 35.0/2547 | 44.0/2485 | 53.0/2422 | – | Flange |
| NYP1670 | 200 | 1670 | 6000 | 135 | 34.6/2177 | 42.0/2138 | 50.0/2100 | – | Flange |
| NYP1670 | 200 | 1670 | 20000 | 112 | 35.0/1830 | 41.5/1810 | 48.0/1790 | – | Flange |
| NYP1670 | 200 | 1670 | 60000 | 85 | 36.0/1405 | 35.7/1400 | 40.6/1392 | – | Flange |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
