NTSCGEWOU EPR PCP High Voltage Reeling Cable
NTSCGEWOU EPR PCP High Voltage Reeling Cable Application
NTSCGEWOU H.V. flexible reeling cables are used in power supplies for connecting large equipment which may be moved from location to location for extremely high mechanical loads excavators, spreaders, loading bridges, portal cranes, construction equipment as well as for supplying power to heavy duty hoisting equipment, transport and conveyor systems, power supplies for building mains network sections in cases of power failure and similar applications.
NTSCGEWOU cables are suitable for installation in dry, moist and wet rooms as well as for outdoor installations and applications in locations with an associated explosion hazard, and building sites, in industrial workshops, open-face mining, in quarries. Trailing cables are primarily used in smelting foundries, limestone plants, sand and gravel excavation, container terminals, docks, and harbors, in brown coal excavation, salt and ore mining as in heavy industrial applications.

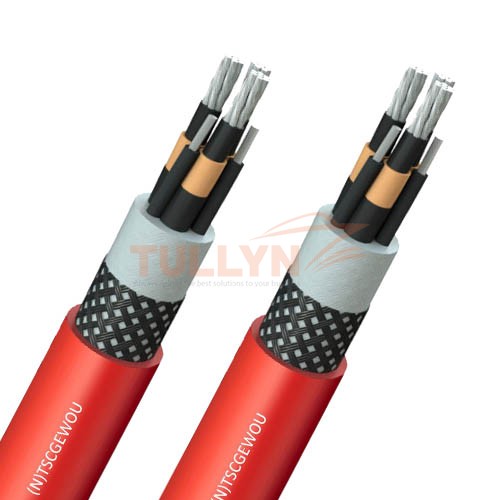

NTSCGEWOU EPR PCP High Voltage Reeling Cable Construction
| Conductor &earth conductor | Electrolytic copper tinned, very finely stranded, class FS (DIN VDE 0295) |
| Insulation | High-grade special compound based on high-quality EPR (at least 3GI3) improved mechanical and electrical characteristics(DIN VDE 0207, Part 20) |
| Field control | For designs from 3 to 30 kV: inner semiconductive layer of EPR, outer semi-conductive layer of modified NBR, capable of being stripped when cold and thus extremely easy to prepare (EasyStrip design) |
| Core identification | From 3.6/6 kV: natural colcoloredsulation with black semiconductive layer |
| Core arrangement | Laid up with length of lay 7 x D(core diameter), three core diameter, earth conductor split into 3 parts |
| Sheath system | double layer inner sheath Special compound based on EPR, quality at least 5GM3, also served as water barrier Colour: red Anti-torsion braid: reinforced braid made of polyester threads, in a vulcanized bond between the sheaths. Resulting in high strength of the sheath system. |
| Marking | NTSCGEWOEU (number of cores) x (cross-section) (rated voltage) (year of manufacture) (serial number) |
NTSCGEWOU EPR PCP High Voltage Reeling Cable Technical Data
| Standards | DIN VDE 0250, Part 813 | ||||||
| Rated voltage (Uo/U) | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 14/25 | 18/30 |
| Maximum permissible operating voltage in AC systems (Uo/U) | 2.1/3.6 | 4.2/7.2 | 6.9/12 | 10.4/18 | 13.9/24 | 17.3/30 | 20.8/36 |
| Maximum permissible operating voltage in DC systems (Uo/U) | 2.7/5.4 | 5.4/10.8 | 9/18 | 13.5/27 | 18/36 | 22.5/45 | 27/54 |
| AC test voltage According to DIN VDE 0250, Part 813 | 6 | 11 | 17 | 24 | 29 | 36 | 43 |
| Current carrying capacity | According to DIN VDE 0298, Part 4 Higher values are permissible in specific cases.Please consult the manufacturer. | ||||||
NTSCGEWOU EPR PCP High Voltage Reeling Cable Specification
| No. Core xNominal Cross Section | Power/Earthconductor dia.* | Overall dia.ofcable Min. value* | Overall diameter of cableMax. value* | Approx. net weight(kg/km) | Max.permissibletensile force**(N) |
| 0.6/1kV NTSWOEU=NSHTOEU | |||||
| 3×70+3×35/3 | 12.0/5.0 | 39.7 | 42.7 | 3920 | 6300 |
| 3×95+3×50/3 | 14.0/6.0 | 44.3 | 47.3 | 5020 | 8550 |
| 3×120+3×70/3 | 15.8/7.2 | 51 | 55 | 6630 | 10800 |
| 3×150+3×70/3 | 17.5/7.2 | 53.9 | 57.9 | 7690 | 13500 |
| 3×185+3×95/3 | 19.7/8.1 | 58.9 | 62.9 | 9310 | 16650 |
| 3×240+3×120/3 | 22.5/9.3 | 67.4 | 71.4 | 12200 | 21600 |
| 1.8/3kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 40.4 | 43.4 | 2680 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 43 | 46 | 3150 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 46.4 | 49.4 | 3840 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 45.9 | 48.9 | 4240 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 58.5 | 62.5 | 6490 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 63.8 | 67.8 | 8010 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 67.7 | 71.7 | 9240 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 71.6 | 75.6 | 10750 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 79.4 | 83.4 | 13640 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 84.7 | 89.7 | 16230 | 18000(27000) |
| 3.6/6kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 36.1 | 39.1 | 2190 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 39.6 | 42.6 | 2710 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 42.4 | 45.4 | 3360 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 46.4 | 49.4 | 4290 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 51.4 | 55.5 | 5520 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 55 | 59 | 6680 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 58.8 | 62.8 | 7830 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 65.1 | 69.1 | 9480 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 72.5 | 76.5 | 12120 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 78.2 | 82.2 | 14580 | 18000(27000) |
| 6/10kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 37.8 | 40.8 | 2410 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 40.9 | 43.9 | 2880 | 2100(3150) |
| 3×35+3×35/3 | 8.3/5.0 | 40.9 | 43.9 | 2880 | 2100 |
| 3×50+3×25/3 | 9.9/4.2 | 43.7 | 46.7 | 3480 | 3000(4500) |
| 3×70+3×50/3 | 11.8/5.9 | 47.7 | 50.7 | 4570 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 52.8 | 56.8 | 5710 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 56.2 | 60.2 | 6830 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 61.5 | 65.5 | 8180 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 65.3 | 69.3 | 9660 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 73.8 | 77.8 | 12310 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 79.5 | 83.5 | 14780 | 18000(27000) |
| 8.7/15kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 41.1 | 44.1 | 2670 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 43.7 | 46.7 | 3130 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 47.1 | 50.1 | 3810 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 52 | 56 | 4960 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 57.2 | 61.2 | 6070 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 62.1 | 66.1 | 7480 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 65.9 | 69.9 | 8630 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 69.8 | 73.8 | 10140 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 77.3 | 81.3 | 12860 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 84.2 | 89.2 | 15730 | 18000(27000) |
| 12/20kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 44.1 | 47.1 | 2940 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 46.6 | 49.6 | 3420 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 51.8 | 55.8 | 4300 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 55.9 | 59.9 | 5300 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 59.2 | 63.2 | 6500 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 65.1 | 69.1 | 7870 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 69 | 73 | 9060 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 74.3 | 78.3 | 10850 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 80.3 | 84.3 | 13340 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 87.2 | 92.2 | 16250 | 18000(27000) |
| 14/25kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 49.6 | 53.6 | 3490 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 52.2 | 56.2 | 3990 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 55.7 | 59.7 | 4740 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 61.2 | 65.2 | 5990 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 65.5 | 69.5 | 7170 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 69 | 73 | 8410 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 74.3 | 78.3 | 9890 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 78.2 | 82.2 | 11460 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 85.5 | 90.5 | 14380 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 91.1 | 96.1 | 16970 | 18000(27000) |
| 18/30kV NTSCGEWOEU | |||||
| 3×25+3×25/3 | 7.1/4.2 | 53.1 | 57.1 | 3860 | 1500(2250) |
| 3×35+3×25/3 | 8.3/4.2 | 55.7 | 59.7 | 4390 | 2100(3150) |
| 3×50+3×25/3 | 9.9/4.2 | 59.1 | 63.1 | 5140 | 3000(4500) |
| 3×70+3×35/3 | 11.8/5.0 | 64.7 | 68.7 | 6440 | 4200(6300) |
| 3×95+3×50/3 | 13.8/5.9 | 69 | 73 | 7660 | 5700(8550) |
| 3×120+3×70/3 | 15.4/7.0 | 73.8 | 77.8 | 9160 | 7200(10800) |
| 3×150+3×70/3 | 17.2/7.0 | 77.7 | 81.7 | 10420 | 9000(13500) |
| 3×185+3×95/3 | 19.0/8.0 | 81.6 | 85.6 | 12020 | 11100(16650) |
| 3×240+3×120/3 | 21.8/9.0 | 89 | 94 | 15010 | 14400(21600) |
| 3×300+3×150/3 | 24.4/10.0 | 95.6 | 100.6 | 17900 | 18000(27000) |
Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. Photographs are not to scale and do not represent detailed images of the respective products. All pictures shown are for illustration purposes only. Actual product may vary. Other Specification will be available upon request.
