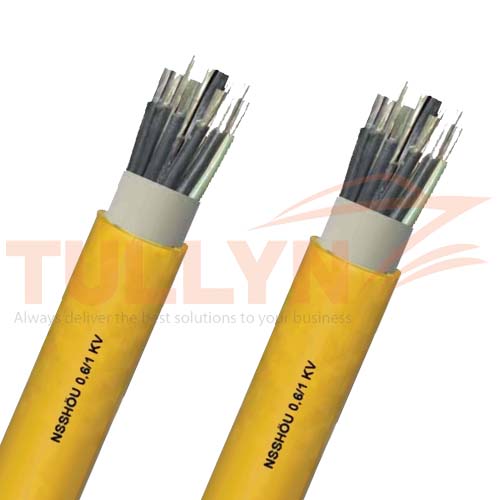

NSSHOEU Low Voltage Mining Cable 0.6/1KV
NSSHOEU Low Voltage Mining Cable 0.6/1KV Application
NSSHOEU is heavy-duty, tough rubber, flexible cables manufactured for use in Mining, Drilling and Tunnelling applications with a voltage rating of 600/1000V.
Flame-retardant, UV, abrasion, cut, notch and tear-resistant, they offer good resistance to oil and greases, and can be used as power supplies where high levels of mechanical stress and abrasion are expected.
NSSHOEU / NSSHÖU is rubber flexible cable with or without individually earth screened cores for dynamic or static applications in aggressive environments. Good resistance to oil and fats. Suitable for installation in dry, damp, wet and in hazardous environments. For power supplies where high levels of mechanical stress and abrasion are expected.
NSSHOEU / NSSHÖU Can be permanently submerged in fresh water, salt water, stormwater, oily water and sewage-contaminated water to a depth of 100 meters. Suitable for indoor and outdoor applications.
NSSHOEU /NSSHÖU Low Voltage Mining Cable 0.6/1KV Construction
| Conductor: | Flexible tinned copper conductor Cl. 5,acc to IEC 60228, DIN VDE 0295 |
| Insulation: | Rubber EPR type 3G13 acc. to DIN VDE 0207 |
| Colour cores: | acc. to DIN VDE 0293-308, HD 308 S2from 6 cores black cores with consecutive numbers acc. to EN 50334;green-yellow earth-wire from 3 cores |
| Stranding: | central support unit, cores twisted around withshort length of lay |
| Inner sheath: | rubber GM1b |
| Outer sheath: | YELLOW PCP compound 5GM5 as per DIN VDE 0207 |
NSSHOEU Low Voltage Mining Cable 0.6/1KV Technical Data
| Fixed installation: | – 40°C + 80°C |
| Flexible installation: | – 25°C + 80°C |
| Nominal voltage: | Uo/U 0.6/1 kV |
| Test voltage: | 3000 V |
| Max. operating voltage: | Uo/U = 0.7/1.2 kVUo/U = 0.9/1.8 kV |
| Insulation resistance: | > 20 MOhm x km |
| Tensile strength static: | 15 N/mm2 |
NSSHOEU Low Voltage Mining Cable 0.6/1KV Specification
| No. of cores x cross-section(n x mm2) | Outer-Øca. mm ± 10% | Cable weight approx.(kg/km) | Tensile strength(N) |
| 1×16 | 10.6 | 235 | 240 |
| 1×25 | 12.1 | 339 | 375 |
| 1×35 | 13.4 | 431 | 525 |
| 1×50 | 15.8 | 625 | 750 |
| 1×70 | 17.7 | 838 | 1050 |
| 1×95 | 19.8 | 1080 | 1425 |
| 1×120 | 21.7 | 1345 | 1800 |
| 1×150 | 24.1 | 1653 | 2250 |
| 1×185 | 26.8 | 2010 | 2775 |
| 1×240 | 29.4 | 2542 | 3600 |
| 1×300 | 33.4 | 3210 | 4500 |
| 2×1.5 | 10.9 | 172 | 45 |
| 2×2.5 | 11.8 | 208 | 75 |
| 2×4 | 13 | 240 | 120 |
| 3G1.5 | 12.2 | 155 | 68 |
| 3×2.5 | 12.2 | 216 | 113 |
| 3G2.5 | 13.2 | 217 | 113 |
| 3×4 | 13.6 | 280 | 180 |
| 3G4 | 14.3 | 304 | 180 |
| 3×6 | 14.3 | 354 | 270 |
| 3G6 | 17.4 | 354 | 270 |
| 3×10 | 17.4 | 512 | 450 |
| 3×16 | 20.3 | 785 | 720 |
| 3×25 | 24.2 | 1170 | 1125 |
| 3×35 | 26.7 | 1460 | 1575 |
| 3×50 | 31.2 | 2070 | 2250 |
| 3×70 | 36.6 | 2875 | 3150 |
| 3×95 | 42.7 | 3815 | 4275 |
| 3×120 | 46.5 | 5010 | 5400 |
| 3×150 | 52.3 | 5902 | 6750 |
| 4G1.5 | 12.1 | 212 | 90 |
| 4G2.5 | 13.1 | 235 | 150 |
| 4G4 | 14.1 | 345 | 240 |
| 4G6 | 16.2 | 450 | 360 |
| 4G10 | 18.7 | 670 | 600 |
| 4G16 | 22.9 | 1030 | 960 |
| 4G25 | 26.2 | 1475 | 1500 |
| 4G35 | 30.2 | 1920 | 2100 |
| 4G50 | 35.4 | 2620 | 3000 |
| 4G70 | 41.3 | 3745 | 4200 |
| 4G95 | 46.6 | 4820 | 5700 |
| 4G120 | 52.2 | 6308 | 7200 |
| 4G150 | 57.2 | 7568 | 9000 |
| 5G1.5 | 13 | 252 | 113 |
| 5G2.5 | 14 | 303 | 188 |
| 5G4 | 16 | 424 | 300 |
| 5G6 | 17.4 | 590 | 450 |
| 5G10 | 20.3 | 775 | 750 |
| 5G16 | 26.1 | 1310 | 1200 |
| 5G25 | 31.2 | 1999 | 1875 |
| 7G1.5 | 14 | 272 | 158 |
| 8G1.5 | 14.9 | 320 | 180 |
| 7G2.5 | 16.8 | 410 | 225 |
| 10G1.5 | 16.8 | 420 | 270 |
| 12G1.5 | 17.1 | 505 | 315 |
| 14G1.5 | 18.1 | 610 | 427 |
| 19G1.5 | 20.2 | 405 | 263 |
| 8G2.5 | 16.2 | 440 | 300 |
| 10G2.5 | 17.1 | 520 | 375 |
| 12G2.5 | 18.7 | 570 | 450 |
| 14G2.5 | 18.6 | 656 | 525 |
| 18G2.5 | 20 | 852 | 675 |
| 19G2.5 | 22.5 | 910 | 712 |
| 24G2.5 | 23.6 | 1015 | 900 |
| 12×4 | 24.1 | 820 | 720 |
| 12×6 | 25.2 | 1120 | 1080 |
Options:
Further numbers of cores and cross-section upon request
Integrated BUS system cable
Integrated Optical Fiber Elements
Special cold resistant compound.
Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
