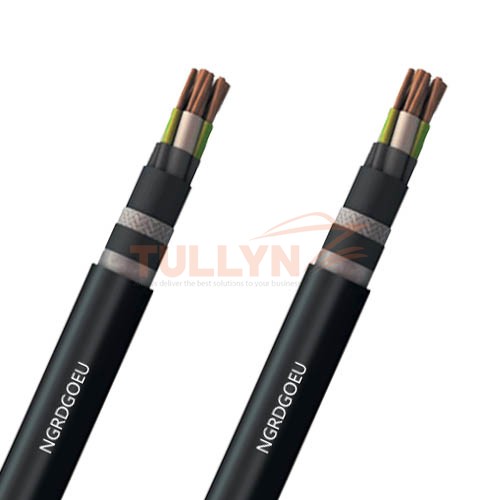

NGRDGOEU Screened Festoon Control Cable
NGRDGOEU Rubber Sheathed Festoon Control Cable Application
RONDOFLEX NGRDGOEU Rubber Sheathed Festoon Control Cable, for use on festoon systems machine tools, material handling equipment, associated with high mechanical stresses and frequent bending during operation, also suitable for light duty reeling applications.
NGRDGOEU Rubber Sheathed Festoon Control Cable Construction
| Conductor | bare Electrolytic copper, finely stranded, class 5 |
| Insulation) | High-grade special compound based on high-quality EPR (at least GI3); improved mechanical and electrical characteristics |
| Shield for individually shielded cores and twisted and shielded pairs | Braid screen made of tinned copper wires, transfer impedance optimized at 30 MHz.Surface covered:at least 60%: for individually shielded cores, at least 80%: for twisted and shielded pairs |
| Core identification | Best identification as a result of light-colored insulation with numbers printed in black for power and control cables, earth conductor green/ yellow |
| Core arrangement | Laid-up in a maximum of 3 layers |
| Inner sheath | Basic material EPR, Rubber compound GM 1b Colour: black |
| Outer sheath | High-grade special compound (at least 5GM3); based on PCP; Color: black |
NGRDGOEU Rubber Sheathed Festoon Control Cable Code Designation
| Code | Description |
| N | VDE standard |
| G | rubber insulation |
| RD | round cable |
| G | outer sheath constructed of rubber |
| Ö | oil-resistant sheath material |
| U | outer sheath with low flammability |
| according to DIN VDE 0472 | |
| -J | with a green/yellow identification of the earth/ground conductor |
| -O | without a green/yellow identification of the earth/ground conductor |
NGRDGÖEU Rubber Sheathed Festoon Control Cable Technical Data
| Rated voltage | Uo/U = 0.6/1kV |
| Max permissible operating voltage in AC systems | Uo/U = 0.7/1.2kV |
| Max permissible operating voltage in DC systems | Uo/U = 0.9/1.8kV |
| AC test voltage | 2.5 kV over 5 min |
| Ambient temperature | |
| Fully flexible operation Fixed installation |
-35℃ to +60℃ -50℃ to +80℃ |
| Max permissible operating temperature of the conductor |
90℃ |
| Short-circuit temperature of the conductor | 250℃ |
| Tensile load | Up to 15N/mm2 |
NGRDGOEU Rubber Sheathed Festoon Control Cable Specification
| Number of cores andnominal cross-section | conductor diameter | Overall diameterof cable(mm) | Approx. netweight | Maximum permissibletensile force | |
| mm2 | mm | Min. value | Max. value | kg/km | N |
| NGRDGOU-J control cables | |||||
| 12×1.5 | 1.6 | 16.2 | 18.2 | 440 | 270 |
| 18×1.5 | 1.6 | 18.7 | 20.7 | 615 | 405 |
| 24×1.5 | 1.6 | 22.1 | 24.1 | 805 | 540 |
| 30×1.5 | 1.6 | 23.3 | 25.3 | 930 | 675 |
| 36×1.5 | 1.6 | 24.6 | 27.6 | 1090 | 810 |
| 12×2.5 | 2 | 17.9 | 19.9 | 580 | 450 |
| 18×2.5 | 2 | 21.5 | 23.5 | 865 | 650 |
| 24×2.5 | 2 | 24 | 27 | 1110 | 900 |
| 30×2.5 | 2 | 26.4 | 29.4 | 1330 | 1125 |
| 36×2.5 | 2 | 28.4 | 31.4 | 1550 | 1350 |
Please noted:
1)Packing in drums or roll, or by customer request.
2)Festoon application it is not recommended to have a cross-section beyond 3×50²!
3)regular delivery time is about 25 working days.for some type cable, delivery time can be expedited within 10~15 working days.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes.All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
