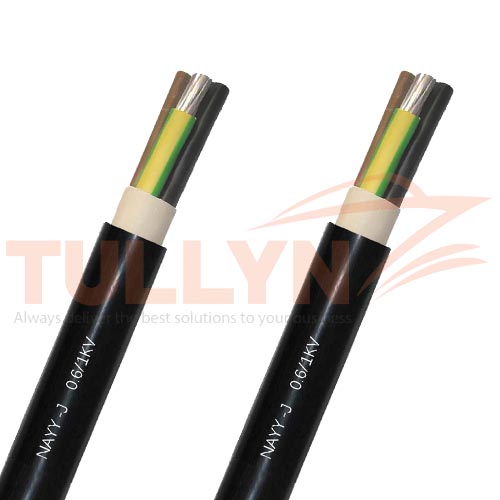

NAYY Al/PVC/PVC Power Cable 0.6/1KV
NAYY Al/PVC/PVC Power Cable 0.6/1KV APPLICATION
The NAYY cable is a power and control cable designed for fixed installation. It can be safely deployed in most applications where mechanical stresses are not anticipated – indoors, outdoors, direct burial underground, in concrete, or submerged in water. It is not suitable for installation in concrete which is shaken, vibrated or compressed.
Available in sizes up to 27 core, the NAYY is available with an RE Class 1 solid copper conductor or an RM Class 2 stranded copper conductor.
The cable is sheathed in Flame Retardant Polyvinyl Chloride (FR-PVC), has a voltage rating (U0/U) of 600/1000V and an operating temperature range of -15oC to +70oC when fixed and -5oc to +50oC when flexed.
NAYY Al/PVC/PVC Power Cable 0.6/1KV CONSTRUCTION:
| Conductor | –Single or multiple Aluminum – Solid strand to VDE-0295 Class-1 – For #4 AWG and up, VDE-0295 Class-2 strand |
| Insulation | – PVC core insulation – Color code to VDE-0293-308 with ground – Above 5 cores, color is black w/ white numbers |
| Sheath | – PVC (DMV5) outer jacket – Black (RAL 9005) |
NAYY Al/PVC/PVC Power Cable 0.6/1KV TECHNICALS:
| Working voltage | 600/1000 volts |
| Test voltage | 4000 volts |
| Flexing bending radius | 15 x Ø |
| Static bending radius | 12 x Ø |
| Flexing temp | -5º C to +50º C |
| Static temp | -40º C to +70º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | > 100 MΩ x km |
NAYY Al/PVC/PVC Power Cable 0.6/1KV Specification
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 1×25 re | 13.0 | 200 |
| 1×50 rm | 16.5 | 310 |
| 1×70 rm | 18.5 | 400 |
| 1×95 rm | 21.0 | 520 |
| 1×120 rm | 22.5 | 600 |
| 1×150 rm | 23.5 | 700 |
| 1×185 rm | 25.5 | 870 |
| 1×240 rm | 28.5 | 1090 |
| 1×300 rm | 31.5 | 1335 |
| 1×400 rm | 35.5 | 1685 |
| 1×500 rm | 39.0 | 2075 |
| 1×630 rm | 43.0 | 2540 |
| 4×25 re | 27.0 | 1000 |
| 4×35 re | 29.0 | 1200 |
| 4×50 se | 30.5 | 1350 |
| 4×70 se | 34.5 | 1750 |
| 4×120 se | 42.5 | 2630 |
| 4×150 se | 45.5 | 3000 |
| 4×185 se | 50.5 | 3780 |
| 4×240 se | 54.0 | 4740 |
| 4G25 re | 27.0 | 1000 |
| 4G35 re | 29.0 | 1200 |
| 4G50 se | 30.5 | 1350 |
| 4G70 se | 34.5 | 1750 |
| 4G95 se | 38.5 | 2250 |
| 4G120 se | 42.5 | 2750 |
| 4G150 se | 45.5 | 3200 |
| 4G185 se | 50.5 | 3950 |
| 4G240 se | 54.0 | 4700 |
| 4G240 sm | 55.5 | 4960 |
| 4G150 se+1×1.5 re | 45.5 | 3010 |
| 4G150 se+2×1.5 re | 45.5 | 3020 |
Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. Photographs are not to scale and do not represent detailed images of the respective products. All pictures shown are for illustration purposes only. Actual product may vary. Other Specification will be available upon request.
