MPYCYSLA Common Shielded Shipboard Control Cable
MPYCYSLA Common Shielded Shipboard Control Cable Application
MPYCYSLA is intended for power circuit up to 250V, Lighting & Control circuit, also for fixed installation lighting & control in both explosion risk and safe areas, general purposes.
STANDARD APPLIED
Design guideline: JIS C 3410 (2010)
Material properties :
JIS C 3410 Insulation, EPR JIS C 3410 Sheath, PVC
Flame retardant :
IEC 60332-1
IEC 60332-3, Cat. A, ‘FA–’ type only
– Any other cable marking can be applicable when purchaser required

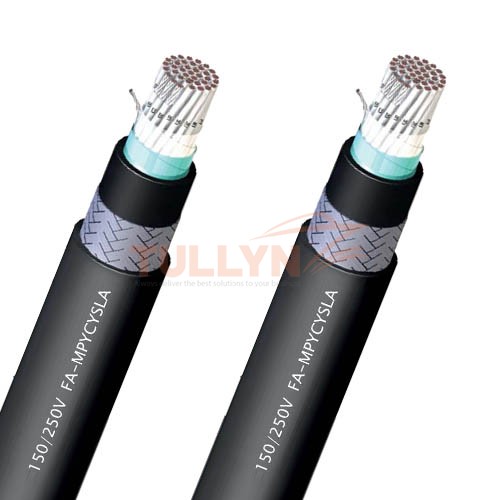

MPYCYSLA Common Shielded Shipboard Control Cable Construction
Conductor | M | Tinned annealed stranded copper, class 2 according to IEC 60228 |
Insulation | P | 85°C EPR as per JIS C 3401 |
Cabling | Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used |
|
Overall shield | SLA | Overall Shielded with Aluminium foil-mylar tape and drain wire |
Bedding | Y | PVC as per JIS C 3401 |
Armor | C | Galvanized steel wire braid |
Sheath | Y | PVC as per JIS C 3401 |
MPYCYSLA Common Shielded Shipboard Control Cable Technical Data
Conductor cross-section | 1mm² |
Conductor diameter | 1.3mm |
Diameter over armor | 1.0mm |
Average insulation thickness | 0.7mm |
Rated Voltage Uo/U (Um) | 150 / 250 V |
Max. DC resistance of the conductor at 20°C | 18.2Ohm/km |
Test voltage | 1500V |
MPYCYSLA Common Shielded Shipboard Control Cable Specification
MPYCSLA, FA-MPYCSLA
No. of cores | SQ | Construction | O.D | Nominal overall diam. | Tolerance of diam.over sheath | Cable weight (Approx.) |
No. | SQ | No./mm | mm | mm | ± mm | kg/km |
2 | 1 | 7/0.43 | 1.29 | 10.2 | 0.4 | 160 |
4 | 1 | 7/0.43 | 1.29 | 11.4 | 0.5 | 210 |
7 | 1 | 7/0.43 | 1.29 | 13.4 | 0.5 | 290 |
12 | 1 | 7/0.43 | 1.29 | 17 | 0.7 | 444 |
19 | 1 | 7/0.43 | 1.29 | 19.8 | 0.8 | 615 |
27 | 1 | 7/0.43 | 1.29 | 23.6 | 0.9 | 845 |
37 | 1 | 7/0.43 | 1.29 | 26.3 | 1.1 | 1070 |
44 | 1 | 7/0.43 | 1.29 | 29.5 | 1.2 | 1290 |
MPYCYSLA,FA-MPYCYSLA
No. of cores | SQ | Construction | O.D | Nominal overall diam. | Tolerance of diam.over sheath | Cable weight (Approx.) |
No. | mm2 | No./mm | mm | mm | ± mm | kg/km |
2 | 1 | 7/0.43 | 1.29 | 12 | 0.5 | 200 |
4 | 1 | 7/0.43 | 1.29 | 13.4 | 0.5 | 260 |
7 | 1 | 7/0.43 | 1.29 | 15.4 | 0.6 | 355 |
12 | 1 | 7/0.43 | 1.29 | 19.2 | 0.8 | 530 |
19 | 1 | 7/0.43 | 1.29 | 22.2 | 0.9 | 725 |
27 | 1 | 7/0.43 | 1.29 | 26.2 | 1 | 985 |
37 | 1 | 7/0.43 | 1.29 | 29.1 | 1.2 | 1240 |
44 | 1 | 7/0.43 | 1.29 | 32.5 | 1.3 | 1490 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
