Klipp Anchor
Klipp Anchor Introduction
The Klipp anchor is a conventional type stockless anchor. It is widely used in the marine application, mostly used by the river barges. The anchor is of high quality and good stability. The weight of Klipp Stockless Anchor is 7.5kgs-1,500kgs.
The Klipp Stockless Anchor can be supplied with certification from any of the major classification societies

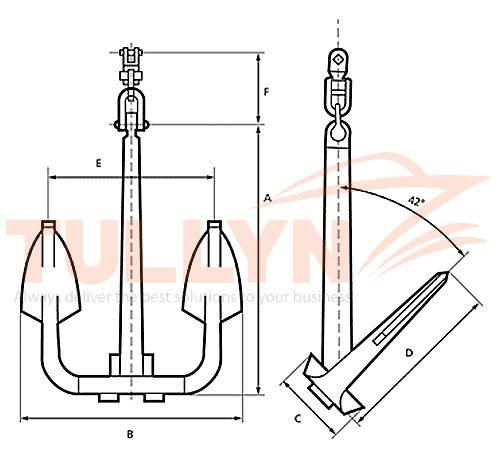

Klipp Anchor Drawing
Klipp Anchor Drawing
Klipp Anchor Specification
| Weight | A | B | C | D | E | F |
| kgs | mm | mm | mm | mm | mm | mm |
| 7.5 | 350 | 315 | 120 | 235 | 225 | – |
| 15 | 435 | 390 | 150 | 295 | 280 | – |
| 20 | 480 | 430 | 165 | 325 | 310 | – |
| 30 | 550 | 465 | 185 | 365 | 340 | 175 |
| 35 | 565 | 480 | 190 | 385 | 350 | 175 |
| 45 | 630 | 535 | 215 | 420 | 390 | 190 |
| 50 | 635 | 550 | 220 | 430 | 400 | 210 |
| 75 | 735 | 660 | 255 | 495 | 475 | 215 |
| 100 | 810 | 730 | 285 | 550 | 510 | 265 |
| 125 | 880 | 790 | 305 | 595 | 570 | 265 |
| 150 | 935 | 835 | 325 | 630 | 605 | 275 |
| 175 | 990 | 895 | 350 | 670 | 645 | 320 |
| 200 | 1020 | 920 | 370 | 710 | 660 | 320 |
| 250 | 1085 | 970 | 390 | 750 | 690 | 320 |
| 300 | 1165 | 1010 | 405 | 780 | 720 | 395 |
| 350 | 1225 | 1095 | 430 | 845 | 790 | 395 |
| 400 | 1280 | 1130 | 445 | 860 | 810 | 400 |
| 450 | 1330 | 1165 | 460 | 890 | 835 | 425 |
| 500 | 1380 | 1240 | 490 | 950 | 890 | 460 |
| 550 | 1440 | 1290 | 505 | 970 | 930 | 480 |
| 600 | 1455 | 1305 | 520 | 1000 | 940 | 480 |
| 650 | 1485 | 1330 | 530 | 1010 | 960 | 490 |
| 700 | 1525 | 1360 | 540 | 1040 | 970 | 500 |
| 750 | 1575 | 1395 | 555 | 1070 | 990 | 550 |
| 800 | 1605 | 1425 | 565 | 1090 | 1015 | 550 |
| 850 | 1635 | 1445 | 575 | 1110 | 1030 | 570 |
| 900 | 1670 | 1465 | 585 | 1130 | 1045 | 600 |
| 950 | 1690 | 1495 | 600 | 1160 | 1070 | 600 |
| 1000 | 1750 | 1540 | 615 | 1190 | 1100 | 600 |
| 1100 | 1800 | 1585 | 650 | 1250 | 1140 | 620 |
| 1200 | 1850 | 1660 | 675 | 1300 | 1200 | 650 |
| 1300 | 1900 | 1720 | 700 | 1350 | 1250 | 650 |
| 1400 | 1950 | 1760 | 715 | 1375 | 1275 | 650 |
| 1500 | 2000 | 1795 | 725 | 1400 | 1300 | 700 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
