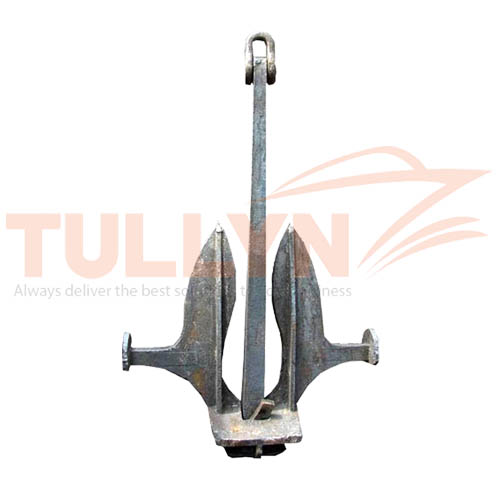

High Holding Power Matrosov Anchor
High Holding Power Matrosov Anchor Introduction
Marine Matrosov Anchor is one of High Holding Power Anchor, used for the marine and offshore field. The material of SOLAS Matrosov Anchor is high grade casting steel. UT and MT Test and other testing assure high quality and good stability. The weight of High Holding Power Steel Anchor is 25KGS-1500kgs.
Matrosov HHP anchor fluke structure is characterized by large, middle and lateral stabilizer of the jaw, in order to prevent stones stuck fluke cannot rotate, but will claw into the inside of the arc. This anchor has produced via two kinds of craftsmanship, which is welding and casting forms.
The Matrosov HHP Anchor can be supplied with certification from any of the major classification societies
High Holding Power Matrosov Anchor Drawing

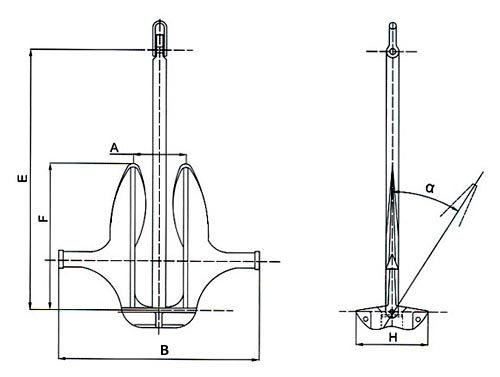

High Holding Power Anchor Matrosov Anchor Drawing
High Holding Power Matrosov Anchor Specification
| Nominal Weight |
A | B | E | F | H | α |
| Kg | mm | mm | mm | mm | mm | mm |
| 25 | 130 | 690 | 570 | 385 | 214 | 28~30 |
| 50 | 170 | 840 | 680 | 480 | 250 | 30~32 |
| 100 | 210 | 1060 | 830 | 590 | 290 | 30~33 |
| 200 | 270 | 1300 | 980 | 740 | 370 | 30~34 |
| 400 | 342 | 1630 | 1190 | 930 | 480 | 30~35 |
| 750 | 418 | 2000 | 1450 | 1140 | 590 | 30~36 |
| 1000 | 452 | 2170 | 1570 | 1240 | 630 | 30~37 |
| 1250 | 488 | 2280 | 1660 | 1300 | 660 | 30~38 |
| 1500 | 515 | 2370 | 1715 | 1350 | 675 | 30~39 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
