High Holding Power AC-14 Anchor Introduction
HHP AC-14 Anchor is widely used. There are two types, not balanced and fully balanced type.Surface treatment: sandblasting to S2.5 + one layer of shop primer; special paint available on request
AC 14 Anchor is high holding power anchor, which was developed from the stockless anchor; AC-14 HHP Anchor apply to all kinds of sea bed (Mud, Soil, Sand, Sandstone, etc.), dig into the seabed quickly and excellent stability, holding-power-to-weight is up to 14.
AC-14 HHP Anchor used for shipping or agriculture industry.

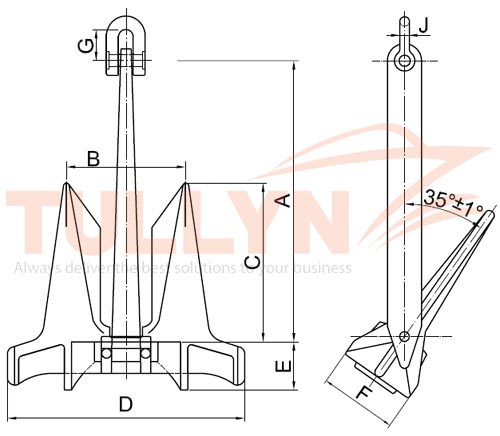

High Holding Power AC-14 Anchor Drawing
High Holding Power AC-14 Anchor Drawing
High Holding Power AC-14 Anchor Specification
| Weight/Mass | A | B | C | D | E | F | G | J |
| (KG) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 56KGS | 612 | 298 | 376 | 555 | 109 | 170 | 115 | 24 |
| 100KGS | 745 | 364 | 458 | 675 | 130 | 200 | 130 | 28 |
| 180KGS | 909 | 442 | 558 | 822 | 162 | 252 | 160 | 36 |
| 300KGS | 1075 | 524 | 660 | 975 | 194 | 298 | 192 | 45 |
| 428KGS | 1213 | 590 | 745 | 1098 | 215 | 336 | 215 | 48 |
| 675KGS | 1410 | 690 | 868 | 1278 | 250 | 390 | 255 | 60 |
| 750KGS | 1450 | 700 | 878 | 1315 | 256 | 396 | 255 | 60 |
| 910KGS | 1560 | 760 | 957 | 1410 | 273 | 430 | 255 | 60 |
| 970KGS | 1592 | 775 | 978 | 1445 | 284 | 440 | 280 | 62 |
| 1080KGS | 1650 | 805 | 1014 | 1495 | 294 | 455 | 280 | 62 |
| 1305KGS | 1760 | 858 | 1082 | 1595 | 313 | 485 | 310 | 68 |
| 1440KGS | 1818 | 885 | 1118 | 1645 | 324 | 505 | 310 | 68 |
| 1710KGS | 1925 | 940 | 1184 | 1745 | 343 | 532 | 340 | 74 |
| 1845KGS | 1975 | 965 | 1215 | 1785 | 347 | 546 | 340 | 74 |
| 2100KGS | 2065 | 1005 | 1268 | 1865 | 354 | 570 | 380 | 82 |
| 2475KGS | 2175 | 1062 | 1340 | 1970 | 385 | 605 | 385 | 82 |
| 2835KGS | 2265 | 1105 | 1393 | 2055 | 399 | 625 | 410 | 90 |
| 3550KGS | 2455 | 198 | 1508 | 2225 | 438 | 680 | 415 | 100 |
| 3940KGS | 2540 | 1240 | 1562 | 2300 | 453 | 705 | 450 | 100 |
| 4500KGS | 2655 | 1295 | 1632 | 2405 | 473 | 735 | 450 | 100 |
| 4840KGS | 2720 | 1330 | 1670 | 2465 | 490 | 755 | 480 | 110 |
| 4610KGS | 2858 | 1396 | 1758 | 2590 | 509 | 790 | 500 | 110 |
| 6000KGS | 2922 | 1426 | 1796 | 2646 | 515 | 810 | 500 | 110 |
| 6900KGS | 3062 | 1496 | 1884 | 2775 | 545 | 848 | 540 | 117 |
| 7800KGS | 3190 | 1558 | 1962 | 2890 | 569 | 884 | 600 | 130 |
| 8300KGS | 3256 | 1590 | 2002 | 2950 | 574 | 902 | 600 | 130 |
| 9300KGS | 3382 | 1652 | 2080 | 3064 | 606 | 936 | 630 | 135 |
| 9900KGS | 3452 | 1686 | 2124 | 3128 | 616 | 956 | 640 | 140 |
| 10575KGS | 3523 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
| 11100KGS | 3589 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
| 11700KGS | 3650 | 1782 | 2245 | 3308 | 648 | 1010 | 680 | 150 |
| 12300KGS | 3683 | 1794 | 2260 | 3330 | 655 | 1018 | 700 | 155 |
| 12900KGS | 3772 | 1842 | 2320 | 3418 | 670 | 1044 | 700 | 155 |
| 13500KGS | 3830 | 1870 | 2355 | 3470 | 682 | 1060 | 730 | 160 |
| 14100KGS | 3885 | 1896 | 2389 | 3520 | 689 | 1076 | 730 | 160 |
| 14700KGS | 3940 | 1924 | 2423 | 3570 | 700 | 1090 | 730 | 160 |
| 15400KGS | 4002 | 1954 | 2461 | 3626 | 710 | 1108 | 730 | 160 |
| 16100KGS | 4062 | 1982 | 2498 | 3680 | 721 | 1125 | 770 | 170 |
| 16900KGS | 4128 | 2016 | 2538 | 3740 | 721 | 1144 | 700 | 170 |
| 17800KGS | 4200 | 2050 | 2583 | 3806 | 725 | 1162 | 800 | 180 |
| 18800KGS | 4277 | 2088 | 2630 | 3875 | 729 | 1185 | 800 | 180 |
| 20000KGS | 4350 | 2101 | 2694 | 3945 | 729 | 1185 | 820 | 199 |
| 25000KGS | 5046 | 2437 | 3125 | 4577 | 846 | 1375 | 848 | 230 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
