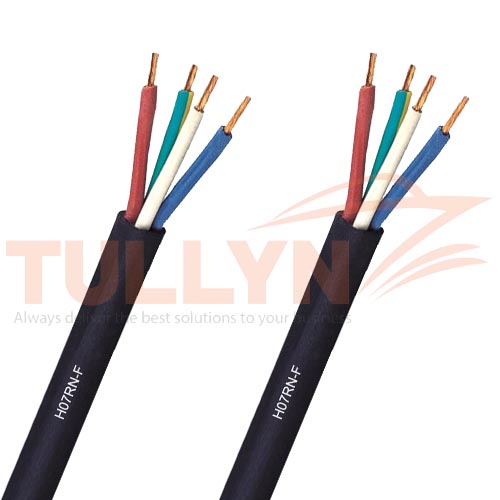

H07RN-F Harmonized Rubber Cables 450/750V
H07RN-F Harmonized Rubber Cables 450/750V Application
These H07RN-F Harmonized Rubber Cables 450/750V cables are designed for the connection of heating units, industrial tools, mobile equipment and machines, e.g. vulcanization plates, hand-operated equipment, transportable motors etc., under normal mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, as well as in industrial and agricultural applications and on building sites.
H07RN-F Harmonized Rubber Cables 450/750V Construction
| Conductors | Stranded copper conductor, class 5 according to DIN VDE 0295/HD 383 S2. |
| Insulation | Rubber type EI4 according to DIN VDE 0282 Part 1/HD 22.1. |
| Inner Sheath (for ≥ 10 mm^2 or more than 5 cores) |
NR/SBR rubber type EM1 |
| Outer Sheath | CR/PCP rubber type EM2 |
H07RN-F Harmonized Rubber Cables 450/750V Technical Data
| Voltage: | 450/750V |
| Test Voltage | 3000V |
| Temperature Range: | -25°C to +85°C |
| Ambient Temperature: | 30° C |
| Operating Temperature: | 60°C |
| Minimum Bending Radius: | 6 x Ø for cables not exceeding 25mm Static:8 x Ø for cables exceeding 25mm Flexing:15 x Ø |
H07RN-F Harmonized Rubber Cables 450/750V Specification
| Number of Cores×Nominal Cross Section | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm^2 | mm | mm | kg/km |
| 1×1.5 | 5.7 | 6.7 | 60 |
| 2×1.5 | 8.5 | 10.5 | 120 |
| 3G1.5 | 9.2 | 11.2 | 170 |
| 4G1.5 | 10.2 | 12.5 | 210 |
| 5G1.5 | 11.2 | 13.5 | 260 |
| 7G1.5 | 14.0 | 17.0 | 360 |
| 12G1.5 | 17.6 | 20.5 | 515 |
| 19G1.5 | 20.7 | 26.3 | 795 |
| 24G1.5 | 24.3 | 28.5 | 920 |
| 1×2.5 | 6.3 | 7.5 | 75 |
| 2×2.5 | 10.2 | 12.5 | 170 |
| 3G2.5 | 10.9 | 13.0 | 230 |
| 4G2.5 | 12.1 | 14.5 | 290 |
| 5G2.5 | 13.3 | 16.0 | 360 |
| 7G2.5 | 17.0 | 20.0 | 510 |
| 12G2.5 | 20.6 | 23.5 | 740 |
| 19G2.5 | 24.4 | 30.9 | 1190 |
| 24G2.5 | 28.8 | 33.0 | 1525 |
| 1×4 | 7.2 | 8.5 | 100 |
| 2×4 | 11.8 | 14.5 | 195 |
| 3G4 | 12.7 | 15.0 | 305 |
| 4G4 | 14.0 | 17.0 | 400 |
| 5G4 | 15.6 | 19.0 | 505 |
| 1×6 | 7.9 | 9.5 | 130 |
| 2×6 | 13.1 | 16.0 | 285 |
| 3G6 | 14.1 | 17.0 | 380 |
| 4G6 | 15.7 | 19.0 | 550 |
| 5G6 | 17.5 | 21.0 | 660 |
| 1×10 | 9.5 | 11.5 | 195 |
| 2×10 | 17.7 | 21.5 | 565 |
| 3G10 | 19.1 | 22.5 | 715 |
| 4G10 | 20.9 | 24.5 | 875 |
| 5G10 | 22.9 | 27.0 | 1095 |
| 1×16 | 10.8 | 13.0 | 280 |
| 2×16 | 20.2 | 23.5 | 795 |
| 3G16 | 21.8 | 25.5 | 1040 |
| 4G16 | 23.8 | 28.0 | 1280 |
| 5G16 | 26.4 | 31.0 | 1610 |
| 1×25 | 12.7 | 15.0 | 405 |
| 4G25 | 28.9 | 33.0 | 1890 |
| 5G25 | 32.0 | 36.0 | 2335 |
| 1×35 | 14.3 | 17.0 | 545 |
| 4G35 | 32.5 | 36.5 | 2505 |
| 5G35 | 35.0 | 39.5 | 2718 |
| 1×50 | 16.5 | 19.5 | 730 |
| 4G50 | 37.7 | 42.0 | 3350 |
| 5G50 | 41.0 | 46.0 | 3804 |
| 1×70 | 18.6 | 22.0 | 955 |
| 4G70 | 42.7 | 47.0 | 4785 |
| 1×95 | 20.8 | 24.0 | 1135 |
| 4G95 | 48.4 | 54.0 | 6090 |
| 1×120 | 22.8 | 26.5 | 1560 |
| 4G120 | 53.0 | 59.0 | 7550 |
| 5G120 | 59.0 | 65.0 | 8290 |
| 1×150 | 25.2 | 29.0 | 1925 |
| 4G150 | 58.0 | 64.0 | 8495 |
| 1×185 | 27.6 | 31.5 | 2230 |
| 4G185 | 64.0 | 71.0 | 9850 |
| 1×240 | 30.6 | 35.0 | 2945 |
| 1×300 | 33.5 | 38.0 | 3495 |
| 1×630 | 45.5 | 51.0 | 7020 |
Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. Photographs are not to scale and do not represent detailed images of the respective products. All pictures shown are for illustration purposes only. Actual product may vary. Other Specification will be available upon request.
