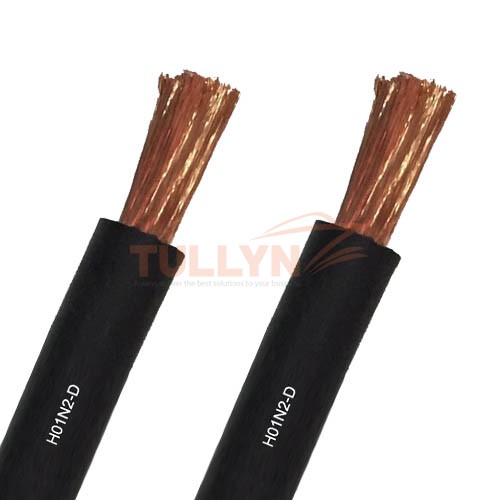

H01N2-D Rubber Welding Cable
H01N2-D Rubber Welding Cable Application
H01N2-D cables are used as a connection between the welding generator, the hand-electrode, and the workpiece. These cables are used in the automobile industry, shipbuilding, transport and conveyor systems, tool making machinery, welding robots etc.
These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil, and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone, and radiation. These cables are also ideal for outside installation in dry, moist and wet areas.
Its flexibility makes using the welding tool easier and also prevents knots from forming in the cable that could cause the internal conductor to break.
It can also be used in automatic welding and machine tools, conveyor systems and production or assembly lines, for example in automobile assembly lines.
H01N2-D Rubber Welding Cable Construction
| Conductor: | Plain copper conductors Class 5 VDE0295/IEC 60228 |
| Separator: | Polyester foil or tape |
| Outer Sheath: | Neoprene black |
H01N2-D Rubber Welding Cable Technical Data
| Voltage: | Working: Test: |
100V 1000V |
| Temperature Range: | Flexing: Static: |
-25°C to + 80°C -40°C to +80°C |
| Bending Radius: | H01N2-D: 12 x Ø H01N2-E: 10 x Ø |
|
H01N2-D Rubber Welding Cable Specification
| Number of cores and cross section mm2 |
Outer diameter ca. mm Max O.D. |
Copper weight kg/100m | Weight kg/100m |
| 10.00 | 10.0 | 9.60 | 14.00 |
| 16.00 | 11.5 | 15.40 | 21.00 |
| 25.00 | 13.0 | 24.00 | 30.00 |
| 35.00 | 14.50 | 33.60 | 41.00 |
| 50.00 | 17.0 | 48.00 | 56.00 |
| 70.00 | 19.0 | 67.20 | 79.00 |
| 95.00 | 21.5 | 91.20 | 105 |
| 120.00 | 24.0 | 115.20 | 130.00 |
| 150.00 | 26.0 | 144.00 | 163.00 |
| 185.00 | 29.0 | 177.60 | 191.60 |
Options:
100m/roll or 200m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
Photographs are not to scale and do not represent detailed images of the respective products.
