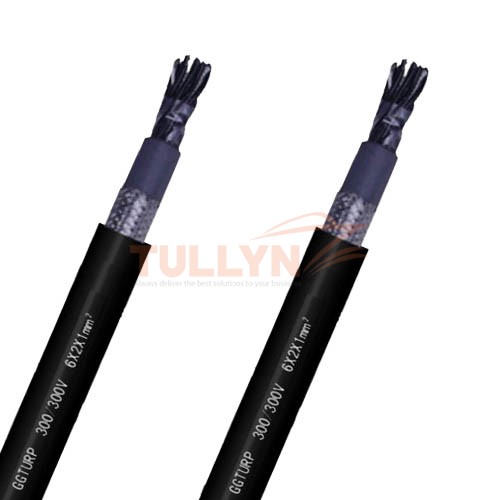

GGTURP High Flexible Energy Chain Bus Cable
GGTURP High Flexible Energy Chain Bus Cable Application
This GGTURP High Flexible Energy Chain Bus Cable is designed for continuous movement. And this bus cable is especially used where requires tight bending radii. This cable is used as signal cables on machines, portable tools, conveying equipment or similar industrial applications where requires EMC screened cable.
Its Extremely robust PUR outer sheath makes it high abrasion and tear resistant and high resistance to mineral oils and coolant emulsions. This highly flexible energy chain bus cable copper wire braided screen prevents it from external interference. This bus cable has an extra long service life and it is UV resistant, Flame retardant, High oil resistant. This bus cable is especially resistant to coolant emulsions, solvents, acids, alkalis and hydraulic liquidity.
Its extra high flexibility is suitable for continuous reciprocated movement. Also, Its PUR sheath is heat and chemical resistant, High abrasion and tear resistance.This bus cable can be used in EMC compatible glands Ozone, hydrolysis and conditionally microbe resistant.
GGTURP High Flexible Energy Chain Bus Cable Construction
| Conductor | Annealed fine plain electrolytic copper wire stranded EXTRA HIGH flexibility to VDE 0295/IEC60228 Class 6 |
| Insulation | Special TPEE Compound |
| Reinforced element | Nylon wire |
| inner Sheath | PUR Compound |
| Shield | Tinned copper braid 85% minimum coverage |
| Outer Sheath | PUR Compound |
Code design
| Cable for Port machinery | G |
| Reinforced | G |
| For Motor systems | T |
| PUR Sheath | U |
| Flexible Conductors | R |
| Shield | P |
GGTURP High Flexible Energy Chain Bus Cable Technical Data
| Rated Voltage | Uo/U 300/300v |
| Conductor long-term working temperature | 100℃ |
| Min.Working temperature | -35℃ |
| Test Voltage | 1.5kV/5min |
| Min.Bending radius | 6OD |
| Sheath Color | Black |
GGTURP High Flexible Energy Chain Bus Cable Specification
| Nominal cross section mm2 | Construction mm | Nom.OD of cable mm | Max. OD of cable mm | Ref. weight of cable(Kg/km) |
| 4×2×0.5 | 4×2×16/0.20 | 13.0 | 14.5 | 220 |
| 6×2×0.5 | 6×2×16/0.20 | 15.0 | 16.7 | 260 |
| 4×2×1 | 4×2×32/0.20 | 16.5 | 18.0 | 335 |
| 6×2×1 | 6×2×32/0.20 | 19.5 | 21.5 | 437 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
