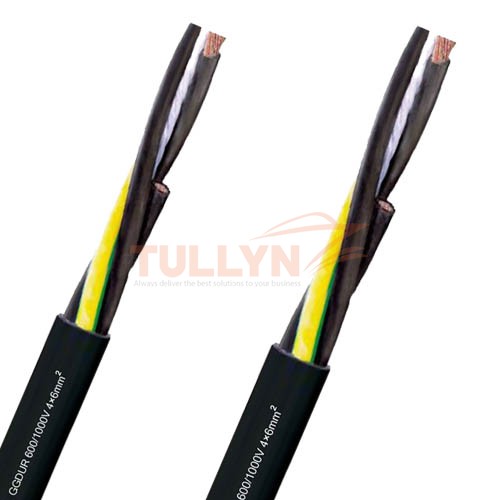

GGDUR High Flexible Energy Chain Motor Cable
GGDUR High Flexible Energy Chain Motor Cable Application
This GGDUR High Flexible Energy Chain Motor Cable is suitable for dry or wet rooms and installation without strong stress or free continuous reciprocated movement. This motor cable is intended for the working places like woodworking machine, machine tool equipment, logistics conveyor systems, crane and other similar equipment. This cable is especially suitable for heavy machinery, coastal, port, field, high and low temperature, high pollution and other harsh environment places.
This energy chain motor cable is specially designed for applications to need repeatedly bend and movement.The cable is cheap and can be widely used in towline system, robot, processing equipment, production line, warehouse, cranes, port equipment and so on.
Because of its special PUR sheath, This cable is flame retardant, abrasion resistant, ozone and UV resistant, oil resistant.
GGDUR High Flexible Energy Chain Motor Cable Construction
| Conductor | Finely stranded bare copper wire, VDE0295 Class 6 |
| Insulation | PVC Special Compound |
| Reinforcement element | Nylon wire |
| Sheath | PUR Compound, Black(RAL9005) |
Code Design
| Cable for Port machinery | G |
| Reinforced | G |
| For Motor systems | D |
| PUR Sheath | U |
| Flexible Conductors | R |
GGDUR Extra Flexible Energy Chain Motor Cable Technical Data
| Rated Voltage | 600/1000V |
| Conductor long-term working temperature | 100℃ |
| Min.Working temperature | -35℃ |
| Test Voltage | 3.5kV/5min |
| Min.Bending radius | 6OD |
GGDUR Flexible Energy Chain Motor Cable Specification
| Cross section(mm2) | Conductor construction ( tinned copper) | Nom. OD of Cable(mm) | Max. OD of Cable(mm) | Approx weight(kg/km) |
| 1×4 | 1×126/0.20 | 6.7 | 7.4 | 79 |
| 1×6 | 1×189/0.20 | 7.6 | 8.3 | 105 |
| 1×10 | 1×322/0.20 | 8.9 | 9.8 | 155 |
| 1×16 | 1×513/0.20 | 10.3 | 11.3 | 222 |
| 1×25 | 1×798/0.20 | 12.1 | 13.3 | 328 |
| 1×35 | 1×1121/0.20 | 13.5 | 14.9 | 435 |
| 1×50 | 1×703/0.30 | 15.7 | 17.3 | 599 |
| 1×70 | 1×999/0.30 | 18.4 | 19.9 | 836 |
| 1×95 | 1×1332/0.30 | 20.2 | 21.8 | 1075 |
| 1×120 | 1×1702/0.30 | 22.0 | 23.8 | 1341 |
| 1×150 | 1×2109/0.30 | 24.4 | 26.4 | 1653 |
| 1×185 | 1×1443/0.40 | 27.0 | 29.2 | 2004 |
| 4×1.5 | 4×48/0.20 | 11.3 | 12.2 | 157 |
| 4×2.5 | 4×77/0.20 | 12.5 | 13.7 | 206 |
| 4×4 | 4×126/0.20 | 13.9 | 15.3 | 286 |
| 4×6 | 4×189/0.20 | 16.4 | 18.1 | 391 |
| 4×10 | 4×322/0.20 | 20.1 | 21.7 | 610 |
| 4×16 | 4×513/0.20 | 23.2 | 25.0 | 852 |
| 4×25 | 4×798/0.20 | 27.5 | 29.7 | 1279 |
| 4×35 | 4×1121/0.20 | 32.5 | 34.5 | 2050 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
