Stud Link Anchor Chain
Stud Link Anchor Chain Introduction
Stud Link Anchor Chain is produced to ISO 1704 standards. They are used for anchor and mooring chains, stud link chains have a central stud for extra strength.
Stud Link Anchor Chain is available in various grades from grade 2 up to grade 3. The Galvanized Stud Link Anchor Chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping. The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality. Stud link chains are available in black (tarred), galvanized and stainless steel.

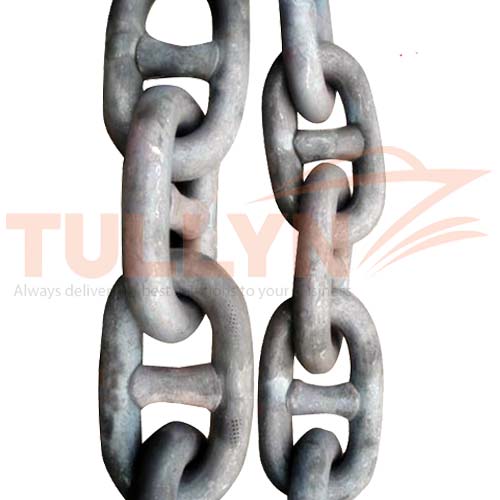

Galvanized Stud Link Anchor Chain
Stud Link Anchor Chain which is used as Mooring Chain. This Offshore Chain has a Stud Link Chain design and is an exceptional Marine Chain. This anchor chain is used For a Range of Floating Equipment, Including Oil Rigs, Ships, and Mooring Buoys.
The Stud Link Anchor Chain is available in Grades R3, R3S, R4 and 5, Sizes Range from Ø11-167mm.
The Stud Link Anchor Chain can be supplied with certification from any of the major classification societies.
Stud Link Anchor Chain Drawing
Stud Link Anchor Chain Drawing
Stud Link Anchor Chain Drawing
| Dia. | Grade 1 | Grade 2 | Grade 3 | Theoretical Weight |
|||
| mm | Breaking Load (kN) | Proof Load | Breaking Load (kN) | Proof Load (kN) | Breaking Load (kN) | Proof Load (kN) | kg/m |
| 11 | 52 | 36 | 72 | 52 | 102 | 72 | 2.65 |
| 12.5 | 66 | 46 | 92 | 66 | 132 | 92 | 3.42 |
| 14 | 82 | 58 | 116 | 82 | 165 | 116 | 4.29 |
| 16 | 107 | 76 | 150 | 107 | 216 | 150 | 5.61 |
| 17.5 | 127 | 89 | 179 | 127 | 256 | 179 | 6.71 |
| 19 | 150 | 105 | 211 | 150 | 301 | 211 | 7.91 |
| 20.5 | 175 | 123 | 244 | 175 | 349 | 244 | 9.2 |
| 22 | 200 | 140 | 280 | 200 | 401 | 280 | 10.6 |
| 24 | 237 | 167 | 332 | 237 | 476 | 332 | 12.61 |
| 26 | 278 | 194 | 389 | 278 | 556 | 389 | 14.8 |
| 28 | 321 | 225 | 449 | 321 | 642 | 449 | 17.17 |
| 30 | 368 | 257 | 514 | 368 | 735 | 514 | 19.71 |
| 32 | 417 | 291 | 583 | 417 | 833 | 583 | 22.43 |
| 34 | 468 | 328 | 655 | 468 | 937 | 655 | 25.32 |
| 36 | 523 | 366 | 732 | 523 | 1050 | 732 | 28.38 |
| 38 | 581 | 406 | 812 | 581 | 1160 | 812 | 31.62 |
| 40 | 640 | 448 | 895 | 640 | 1280 | 895 | 35.04 |
| 42 | 703 | 492 | 981 | 703 | 1400 | 981 | 38.63 |
| 44 | 769 | 538 | 1080 | 769 | 1540 | 1080 | 42.4 |
| 46 | 837 | 585 | 1170 | 837 | 1680 | 1170 | 46.34 |
| 48 | 908 | 635 | 1270 | 908 | 1810 | 1270 | 50.46 |
| 50 | 981 | 686 | 1370 | 981 | 1960 | 1370 | 54.75 |
| 52 | 1060 | 739 | 1480 | 1060 | 2110 | 1480 | 59.22 |
| 54 | 1140 | 794 | 1590 | 1140 | 2270 | 1590 | 63.86 |
| 56 | 1220 | 851 | 1710 | 1220 | 2430 | 1710 | 68.68 |
| 58 | 1290 | 909 | 1810 | 1290 | 2600 | 1810 | 73.67 |
| 60 | 1380 | 969 | 1940 | 1380 | 2770 | 1940 | 78.84 |
| 62 | 1470 | 1030 | 2060 | 1470 | 2940 | 2060 | 84.18 |
| 64 | 1560 | 1100 | 2190 | 1560 | 3130 | 2190 | 89.7 |
| 66 | 1660 | 1160 | 2310 | 1660 | 3300 | 2310 | 95.4 |
| 68 | 1750 | 1230 | 2450 | 1750 | 3500 | 2450 | 101.3 |
| 70 | 1840 | 1290 | 2580 | 1840 | 3690 | 2580 | 107.3 |
| 73 | 1990 | 1390 | 2790 | 1990 | 3990 | 2790 | 116.71 |
| 76 | 2150 | 1500 | 3010 | 2150 | 4300 | 3010 | 126.5 |
| 78 | 2260 | 1580 | 3160 | 2260 | 4500 | 3160 | 133.2 |
| 81 | 2410 | 1690 | 3380 | 2410 | 4820 | 3380 | 143.69 |
| 84 | 2580 | 1800 | 3610 | 2580 | 5160 | 3610 | 154.53 |
| 87 | 2750 | 1920 | 3850 | 2750 | 5500 | 3850 | 165.76 |
| 90 | 2920 | 2050 | 4090 | 2920 | 5840 | 4090 | 177.39 |
| 92 | 3040 | 2130 | 4260 | 3040 | 6080 | 4260 | 185.36 |
| 95 | 3230 | 2260 | 4510 | 3230 | 6440 | 4510 | 197.56 |
| 97 | 3340 | 2340 | 4680 | 3340 | 6690 | 4680 | 206.06 |
| 100 | 3530 | 2470 | 4940 | 3530 | 7060 | 4940 | 219 |
| 102 | 3660 | 2560 | 5120 | 3660 | 7320 | 5120 | 227.85 |
| 105 | 3850 | 2700 | 5390 | 3850 | 7700 | 5390 | 241.45 |
| 107 | 3980 | 2790 | 5570 | 3980 | 7960 | 5570 | 250.73 |
| 111 | 4250 | 2970 | 5940 | 4250 | 8480 | 5940 | 269.83 |
| 114 | 4440 | 3110 | 6230 | 4440 | 8890 | 6230 | 284.61 |
| 117 | 4650 | 3260 | 6510 | 4650 | 9300 | 6510 | 299.79 |
| 120 | 4850 | 3400 | 6810 | 4850 | 9720 | 6810 | 315.86 |
| 122 | 5000 | 3500 | 7000 | 5000 | 9990 | 7000 | 325.96 |
| 124 | 5140 | 3600 | 7200 | 5140 | 10280 | 7200 | 336.73 |
| 127 | 5350 | 3750 | 7490 | 5350 | 10710 | 7490 | 353.23 |
| 130 | 5570 | 3900 | 7800 | 5570 | 11140 | 7800 | 370.11 |
| 132 | 5720 | 4000 | 8000 | 5720 | 11420 | 8000 | 381.59 |
| 137 | 6080 | 4260 | 8510 | 6080 | 12160 | 8510 | 411.04 |
| 142 | 6450 | 4520 | 9030 | 6450 | 12910 | 9030 | 441.59 |
| 147 | 6840 | 4790 | 9560 | 6840 | 13660 | 9560 | 473.59 |
| 152 | 7220 | 5050 | 10100 | 7220 | 14430 | 10100 | 505.98 |
| 157 | 7600 | 5320 | 10640 | 7600 | 15200 | 10640 | 539.81 |
| 162 | 7990 | 5590 | 11180 | 7990 | 15980 | 11180 | 574.74 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
