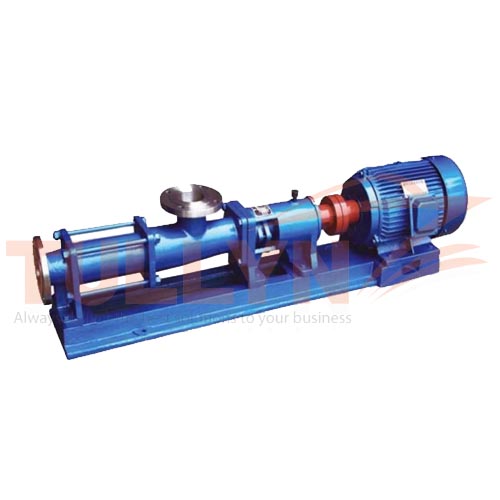

G type Stainless Steel Mono Screw Sewage Pump
G type Stainless Steel Mono Screw Sewage Pump Application
G type Stainless Steel Mono Screw Sewage Pump is one of our most welcomed products. It is mainly applied in these situations:
1. The medium in various viscosity, not only small but also in large viscosity, particularly, the heavy liquid that is hard to be pumped in the system.
2. Mixed medium, which includes gas liquid and solid particles.
3. The chemically sensitive medium that could not be mixed cut.
G type Stainless Steel Mono Screw Sewage Pump applies to deliver lubricating medium, such as oil, bitumen, with the viscosity of 3-760cSt at a temperature below 350°C. The pump’s working pressure range from 0.6Mpa to 2.5Mpa, Flow rate range from 0.6m3/h to 123 m3/h.
The pumps are mainly suited to fuel delivering, hydraulic engineering, shipping engineering, petrochemical and other industrial fields.
Standard seal: Mechanical seal, packing seal is available
G type Stainless Steel Mono Screw Sewage Pump Specification
| Model | Capacity | Pressure | Speed | Motor power | Head | (NPSH)r | Inlet | Outlet |
| (m3/h) | (MPa) | (r/min) | (KW) | (m) | (m) | (mm) | (mm) | |
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 60 | 4 | 25 | 25 |
| G20-2 | 0.8 | 1.2 | 960 | 1.5 | 120 | 4 | 25 | 25 |
| G25-1 | 2 | 0.6 | 960 | 1.5 | 60 | 4 | 40 | 32 |
| G25-2 | 2 | 1.2 | 960 | 2.2 | 120 | 4 | 40 | 32 |
| G30-1 | 5 | 0.6 | 960 | 2.2 | 60 | 4 | 50 | 40 |
| G30-2 | 5 | 1.2 | 960 | 3 | 120 | 4 | 50 | 40 |
| G35-1 | 8 | 0.6 | 960 | 3 | 60 | 4 | 65 | 50 |
| G35-2 | 8 | 1.2 | 960 | 4 | 120 | 4 | 65 | 50 |
| G40-1 | 12 | 0.6 | 960 | 4 | 60 | 4 | 80 | 65 |
| G40-2 | 12 | 1.2 | 960 | 5.5 | 120 | 4 | 80 | 65 |
| G50-1 | 20 | 0.6 | 720 | 5.5 | 60 | 4.5 | 100 | 80 |
| G50-2 | 20 | 1.2 | 720 | 7.5 | 120 | 4.5 | 100 | 80 |
| G60-1 | 30 | 0.6 | 720 | 11 | 60 | 5 | 125 | 100 |
| G60-2 | 30 | 1.2 | 720 | 15 | 120 | 5 | 125 | 100 |
| G70-1 | 40 | 0.6 | 720 | 11 | 60 | 5 | 150 | 125 |
| G70-2 | 40 | 1.2 | 720 | 18.5 | 120 | 5 | 150 | 125 |
| G85-1 | 65 | 0.6 | 630 | 15 | 60 | 5 | 150 | 150 |
| G85-2 | 65 | 1.2 | 630 | 30 | 120 | 5 | 150 | 150 |
| G105-1 | 100 | 0.6 | 500 | 30 | 60 | 5 | 200 | 200 |
| G105-2 | 100 | 1.2 | 500 | 55 | 120 | 5 | 200 | 200 |
| G135-1 | 150 | 0.6 | 400 | 45 | 60 | 5 | 250 | 250 |
| G135-2 | 150 | 1.2 | 400 | 90 | 120 | 5 | 250 | 250 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
