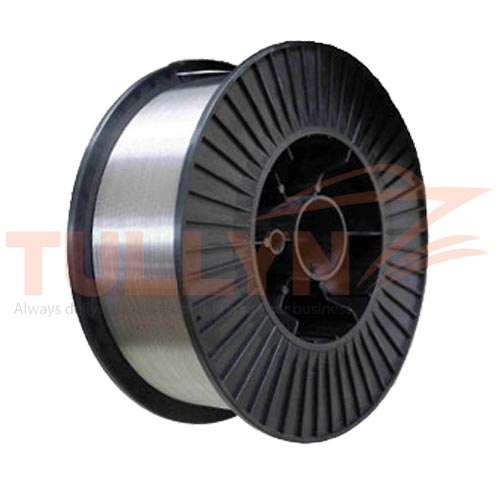

ERCuMnNiAl Mn-Ni-Al Bronze Welding Wire
ERCuMnNiAl Mn-Ni-Al Bronze Welding Wire APPLICATION
ERCuMnNiAl is particularly suitable for highly stressed corrosion resistant overlay welding on cast iron and on unalloyed and low alloyed steels. Seawater resistant zinc free copper aluminum-manganese alloy with high tensile strength and hardness.
Solid wire for GMAW used for assembly of copper-aluminum, for surfacing on steels and cast iron as well as for cavitation resistant overlayers. It has high resistance to wear and marine/sea water corrosion.
Manganese-Nickel-Aluminium bronze is suitable for seawater resistant joint welds, particularly with erosion, corrosion, and cavitation. Suitable for surfacing of Cu-alloys, Carbon-Manganese steels and cast-iron.
ERCuMnNiAl Mn-Ni-Al Bronze Welding Wire Physical and machanical data
| Solids-Temperature | 945℃ |
| Density | 7.4kg/dm³ |
| Elongation | 10% |
| Liquids-Temperature | 985℃ |
| Tensile Strength | 800-900N/mm² |
| Brinell Hardness | 180-240HB |
ERCuMnNiAl Mn-Ni-Al Bronze Welding Wire PACKING
| Make-up | Weight/Lengtd | Dimension |
| Drum / box | 175 – 200 kg | 0,80 – 1,60 mm |
| SD300 / BS300 / K300 | 12 – 15 kg | 0,80 – 2,40 mm |
| H500 / H560 / H760 | 150 – 250 kg | 0,80 – 2,40 mm |
| Coils | 25 – 100 kg | 1,60 – 6,00 mm |
| Rods | 250 – 3000 mm | 1,60 – 6,00 mm |
ERCuMnNiAl Mn-Ni-Al Bronze Welding Wire CHEMICAL COMPOSITION(%)
| Standard | ISO24373 | GB/T9460 | BS EN14640 | AWS A5.7 | DIN 1733 |
| Class | Cu6338 | SCu6338 | Cu6338 | C63380 | 2.1367 |
| Alloy | CuMn13Al8Fe3Ni2 | CuMn13Al8Fe3Ni2 | CuMn13Al7 | ERCuMnNiAl | SG-CuMn13Al7 |
| Cu | bal. | bal. | bal. | bal. | bal. |
| Al | 7.0-8.5 | 7.0-8.5 | 6.5-8.5 | 7.0-8.5 | 6.5-8.5 |
| Fe | 2.0-4 | 2.0-4 | 1.5-4 | 2.0-4 | 1.5-3 |
| Mn | 11.0-14 | 11.0-14 | 11.0-14 | 11.0-14 | 11.0-14 |
| Ni | 1.5-3 | 1.5-3 | 1.5-3 | 1.5-3 | 1.5-3 |
| P | – | – | – | – | – |
| Pb | 0.02 | max 0.02 | 0.02 | 0.02 | max 0.02 |
| Si | 0.1 | max 0.1 | 0.1 | 0.1 | max 0.1 |
| Sn | – | – | – | – | – |
| Zn | 0.15 | max 0.15 | 0.15 | 0.15 | max 0.15 |
| Other | 0.5 | max 0.5 | 0.5 | 0.5 | max 0.4 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when you place the order.
