DPNP TPNP JIS C 3410 Shipboard Portable Cable
DPNP TPNP JIS C 3410 Shipboard Portable Cable Application
DPNP TPNP FPNP Shipboard portable cable is intended for power, lighting and control system of shipboard and off-shore building where requires the flexible or portable application.
JIS C 3410 Shipboard Portable Cable Standards and Designation
Designation:0.6/1kV DPNP, 0.6/1kV TPNP, 0.6/1kV FPNP
STANDARDS:JISC 3410-2010,IEC 60332-1

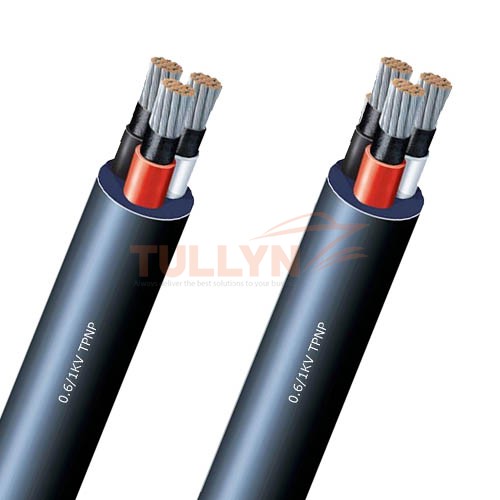

DPNP TPNP FPNP Shipboard portable cable Construction
| Conductor | D(T,F) | Tinned annealed stranded copper, class 5 according to IEC 60228 |
| Insulation | P | 85°C EPR as per IEC 60092-351 |
| Cabling | Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used |
|
| Sheath | N | PCP as per JIS C 3410 |
| P | Portable | |
| Core identification | 2C Black, White 3C Black, White, Red 4C Black, White, Red, Green |
|
| Outer sheath color | Black |
DPNP Shipboard portable cable Specification
| Conductor Size | Conductor Construction |
Conductor OD |
Nom. overall dia. | Cable Weight |
| mm2 | No./mm | mm | mm | kg/km |
| 0.75 | 24/0.20 | 1.13 | 9.7 | 130 |
| 1 | 32/0.20 | 1.27 | 9.9 | 135 |
| 1.5 | 30/0.25 | 1.58 | 10.8 | 165 |
| 2.5 | 49/0.25 | 2.02 | 11.8 | 205 |
| 4 | 55/0.30 | 2.57 | 13.1 | 265 |
| 6 | 82/0.30 | 3.14 | 14.5 | 340 |
TPNP Shipboard portable cable Specification
| Conductor Size | Conductor Construction |
Conductor OD |
Nom. overall dia. | Cable Weight |
| mm2 | No./mm | mm | mm | kg/km |
| 0.75 | 24/0.20 | 1.13 | 10.2 | 145 |
| 1 | 32/0.20 | 1.27 | 10.7 | 160 |
| 1.5 | 30/0.25 | 1.58 | 11.4 | 190 |
| 2.5 | 49/0.25 | 2.02 | 12.5 | 240 |
| 4 | 55/0.30 | 2.57 | 14.1 | 325 |
| 6 | 82/0.30 | 3.14 | 15.6 | 420 |
TPNP Shipboard portable cable Specification
| Conductor Size | Conductor Construction |
Conductor OD |
Nom. overall dia. | Cable Weight |
| mm2 | No./mm | mm | mm | kg/km |
| 0.75 | 24/0.20 | 1.13 | 11.3 | 175 |
| 1 | 32/0.20 | 1.27 | 11.8 | 200 |
| 1.5 | 30/0.25 | 1.58 | 12.2 | 225 |
| 2.5 | 49/0.25 | 2.02 | 14.1 | 310 |
| 4 | 55/0.30 | 2.57 | 15.6 | 405 |
| 6 | 82/0.30 | 3.14 | 17.2 | 525 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
