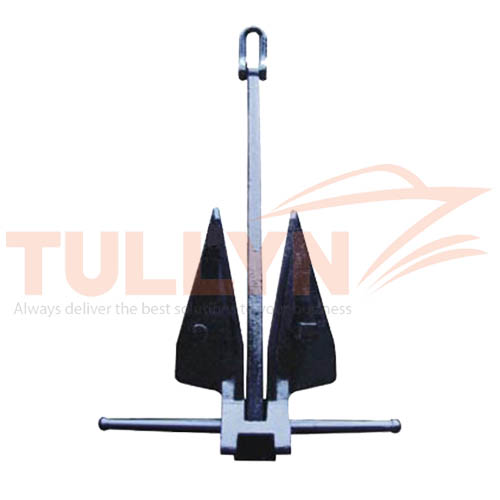

Danforth HHP Anchor Marine Anchor
Danforth HHP Anchor Marine Anchor Introduction
Danforth HHP Anchor is a widely used in the offshore, dredging and shipping sectors. Danforth HHP anchor is light and effective and completes our portfolio for these demanding sectors.
The Danforth HHP anchors have a weight range of between 20kg to 25,000kg.
The Danforth Anchor can be supplied with certification from any of the major classification societies
Danforth HHP Anchor Marine Anchor Drawing
Danforth HHP Anchor Marine Anchor Drawing
Danforth HHP Anchor Marine Anchor Specification
| NOMINAL WEIGHT |
A | B | C | D | E | F |
| kg | mm | mm | mm | mm | mm | mm |
| 20 | 121 | 243 | 526 | 373 | 614 | 166 |
| 25 | 130 | 262 | 566 | 401 | 661 | 179 |
| 30 | 138 | 279 | 602 | 427 | 703 | 190 |
| 40 | 152 | 307 | 662 | 470 | 774 | 209 |
| 50 | 164 | 330 | 713 | 506 | 833 | 225 |
| 60 | 174 | 351 | 758 | 538 | 886 | 239 |
| 75 | 187 | 378 | 817 | 579 | 954 | 258 |
| 100 | 206 | 416 | 899 | 637 | 1050 | 284 |
| 120 | 219 | 442 | 955 | 677 | 1116 | 301 |
| 135 | 228 | 460 | 993 | 704 | 1160 | 314 |
| 150 | 236 | 477 | 1029 | 730 | 1202 | 325 |
| 200 | 260 | 525 | 1133 | 803 | 1323 | 357 |
| 250 | 280 | 565 | 1220 | 865 | 1425 | 385 |
| 276 | 289 | 584 | 1261 | 894 | 1473 | 398 |
| 300 | 298 | 600 | 1296 | 919 | 1514 | 409 |
| 400 | 327 | 661 | 1427 | 1012 | 1667 | 450 |
| 500 | 353 | 712 | 1537 | 1090 | 1795 | 485 |
| 750 | 404 | 815 | 1760 | 1248 | 2055 | 555 |
| 1000 | 444 | 897 | 1937 | 1373 | 2262 | 611 |
| 1250 | 479 | 966 | 2086 | 1479 | 2437 | 548 |
| 1500 | 509 | 1027 | 2217 | 1572 | 2589 | 700 |
| 2000 | 560 | 1130 | 2440 | 1730 | 2850 | 770 |
| 2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
| 2655 | 615 | 1242 | 2682 | 1901 | 3132 | 846 |
| 2835 | 629 | 1269 | 2741 | 1943 | 3201 | 865 |
| 3040 | 644 | 1299 | 2805 | 1989 | 3277 | 885 |
| 3240 | 658 | 1327 | 2866 | 2032 | 3347 | 904 |
| 3445 | 671 | 1355 | 2925 | 2074 | 3416 | 923 |
| 3670 | 686 | 1383 | 2987 | 2118 | 3489 | 943 |
| 3940 | 702 | 1417 | 3059 | 2169 | 3573 | 965 |
| 4210 | 718 | 1448 | 3127 | 2217 | 2653 | 987 |
| 4500 | 734 | 1481 | 3197 | 2267 | 3735 | 1009 |
| 4840 | 752 | 1517 | 3276 | 2323 | 3826 | 1034 |
| 5175 | 769 | 1551 | 3350 | 2375 | 3913 | 1057 |
| 5515 | 785 | 1585 | 3422 | 2426 | 3997 | 1080 |
| 5850 | 801 | 1616 | 3424 | 2474 | 3999 | 1101 |
| 6225 | 818 | 1650 | 3563 | 2526 | 4161 | 1124 |
| 6525 | 831 | 1676 | 3619 | 2566 | 4227 | 1142 |
| 6975 | 849 | 1714 | 3700 | 2624 | 4322 | 1168 |
| 7425 | 867 | 1750 | 3778 | 2679 | 4413 | 1192 |
| 7875 | 884 | 1784 | 3853 | 2732 | 4500 | 1216 |
| 8325 | 901 | 1818 | 3925 | 2783 | 4585 | 1239 |
| 8775 | 917 | 1850 | 3994 | 2832 | 4666 | 1261 |
| 9225 | 932 | 1881 | 4062 | 2880 | 4744 | 1282 |
| 9675 | 947 | 1911 | 4127 | 2926 | 4820 | 1302 |
| 10125 | 962 | 1940 | 4190 | 2971 | 4894 | 1322 |
| 10575 | 976 | 1969 | 4251 | 3014 | 4965 | 1341 |
| 11025 | 989 | 1996 | 4310 | 3056 | 5035 | 1360 |
| 11550 | 1005 | 2027 | 4378 | 3104 | 5113 | 1381 |
| 12075 | 1020 | 2058 | 4443 | 3150 | 5190 | 1402 |
| 12675 | 1036 | 2091 | 4515 | 3201 | 5274 | 1425 |
| 13350 | 1054 | 2128 | 4594 | 3257 | 5366 | 1450 |
| 14100 | 1074 | 2167 | 4679 | 3317 | 5465 | 1476 |
| 15000 | 1096 | 2212 | 4776 | 3386 | 5579 | 1507 |
| 15400 | 1106 | 2231 | 4818 | 3416 | 5628 | 1521 |
| 16125 | 1123 | 2266 | 4893 | 3469 | 5715 | 1544 |
| 17250 | 1148 | 2317 | 5004 | 3548 | 5845 | 1579 |
| 18375 | 1173 | 2367 | 5110 | 3623 | 5969 | 1613 |
| 19500 | 1196 | 2414 | 5213 | 3696 | 6089 | 1645 |
| 20625 | 1219 | 2460 | 5311 | 3766 | 6203 | 1676 |
| 25000 | 1280 | 2530 | 5570 | 3982 | 6330 | 1760 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
