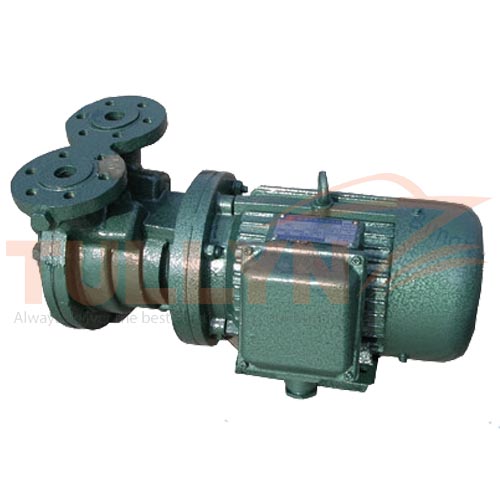

CXZ Series Horizontal Self-Priming Marine Vortex Pump
CXZ Series Horizontal Self-Priming Marine Vortex Pump Application
CXZ Series Horizontal Self-Priming Marine Vortex Pump is applicable to pumping fresh and sea water for drinking washing and sanitary uses in vessels. CXZ peripheral centrifugal pump is mainly used as fresh or sea water sanitation, washing, hydrophone tan or drink water supply and so on in marine and offshore industry, with self-priming suction head in about 3 to 4 meter.
The design of our vortex water pump is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society’s requirement. Therefore, ABS, DNV, CCS, NKK, LR, GL, BV, RINA are available for our products.
Model explanation
for the example 20CXZ-30
20: the pump’s head (m)
CXZ: marine-type horizontal self-suction vortex pump
30: Integral number of the pump intake diameter

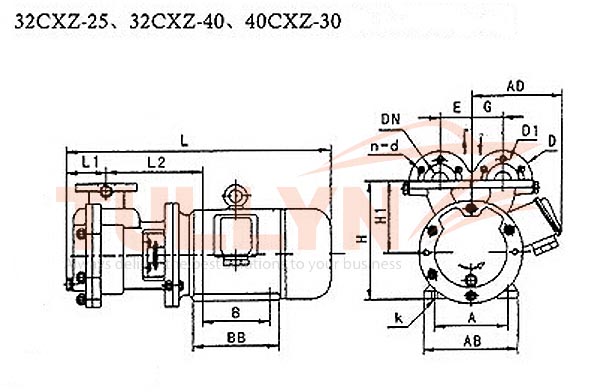

CXZ Series Horizontal Self-Priming Marine Vortex Pump Construction
CXZ Series Horizontal Self-Priming Marine Vortex Pump Construction
CXZ Series Horizontal Self-Priming Marine Vortex Pump Specification
| Type | Capacity | Head | (NPSH)r | Speed | Shaft power |
Motor power |
Suction head |
Efficiency | Unit weight |
| (m3/h) | (m) | (m) | (r/min) | (kw) | (kw) | (m) | (%) | (kg) | |
| 20CXZ-35 | 1 | 35 | 7 | 2900 | 0.43 | 0.75 | 3 | 20 | 42 |
| 32CXZ-25 | 3.5 | 28 | 7 | 2900 | 1.48 | 1.5 | 3 | 18 | 57 |
| 32CXZ-40 | 3 | 40 | 6 | 2900 | 1.82 | 2.2 | 4 | 18 | 57 |
| 40CXZ-30 | 9 | 30 | 6 | 2900 | 2.54 | 4 | 4 | 29 | 80 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
