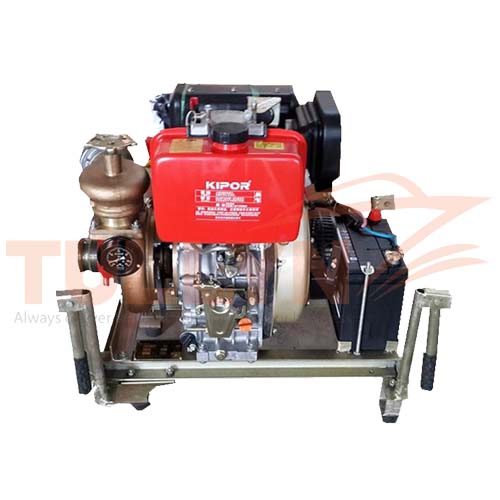

CWY Series Portable Marine Firefighting Pump
CWY Series Portable Marine Firefighting Pump Application
CWY Pump firefighting pump is a Diesel Engine Emergency Pump is driven by the diesel engine. It is produced based on the stipulations of the CCS Rules and Regulations for the Construction and Classification of Sea-going Steel Ships 1996 and the International Convention For the Safety of Life at Sea. (SOLAS Convention). It can be used mainly for emergency service, fire-fighting, drainage, and deck washing and so on. Also, it can be used for the factory, seaport, cargo store. etc.
CWY Series Marine diesel engine emergency fire pump has the feature of Lightweight, small volume, flexible movement, starting fast, fast water, fuel tank capacity big, corrosion resistant, reliable operation, convenient maintenance, etc.
When the diameter is between Ф50 to Ф65, the pump set may be started by manual or electrically started. The diesel engine may be vertical,single-cylinder,4-stroke and air cooled. When the diameter is between Ф80 to Ф100, the pump set may be started by spring starter or electrically started. The diesel engine may be vertical,multi-cylinder,4 stroke and water cooled. The outlet may be deployed as required for air cooling.
CWY Series Portable Marine Firefighting Pump Construction

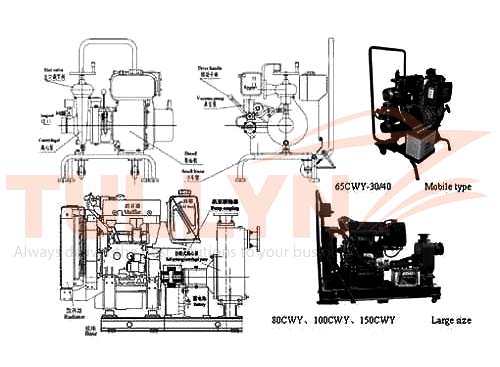

CWY Series Portable Marine Fire Fighting Pump General Arrangement
CWY Series Portable Marine Firefighting Pump Specification
CWY Series Marine diesel engine emergency firefighting pump
| Type | Capacity | Lift | Speed | Suction lift | Weight time | Efficiency | Suc./Out Diameter |
Weight |
| (m3/h) | (m) | (r/min) | (m) | (S) | (%) | (mm) | (kg) | |
| 65CWY-25 | 20 | 25 | 3600 | 5～6 | ≤35 | 63 | 65/50 | 70 |
| 65CWY-30 | 25 | 30 | 3600 | 5～7.5 | ≤35 | 63 | 65/60 | 70 |
| 65CWY-40 | 30 | 40 | 3600 | 6～7 | ≤35 | 65 | 65/50 | 87 |
CWY Series Marine diesel engine emergency fire pump(Large capacity)
| Type | Capacity | Lift | Speed | Suction lift | Weight time | Efficiency | Suc./Out Diameter |
Weight |
| (m3/h) | (m) | (r/min) | (m) | (S) | (%) | (mm) | (kg) | |
| 80CWY-55 | 60 | 55 | 3500 | 6～7 | ≤35 | 68 | 80/50 | 240 |
| 80CWY-70 | 60 | 70 | 3500 | 6～7 | ≤35 | 66 | 80/80 | – |
| 100CWY-45 | 100 | 45 | 2900 | 4～5 | ≤100 | 50 | 100/100 | 480 |
| 100CWY-70 | 90 | 70 | 2900 | 4～5 | ≤100 | 66 | 100/100 | 500 |
| 150CWY-55 | 160 | 55 | 2900 | 4～5 | ≤100 | 48 | 150/150 | 540 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
