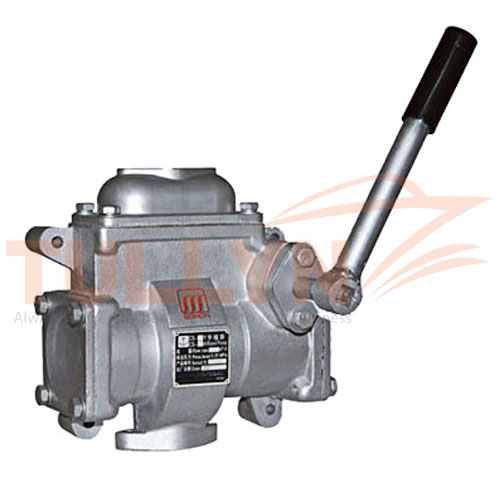

CS Series Marine Fresh Water Hand Piston Pump
CS Series Marine Fresh Water Hand Piston Pump Application
CS Series Marine Fresh Water Hand Piston Pump is suitable for various shipping pumping excluding hard particle or fiber of freshwater and seawater, and lubricant, oil, and other lubrication oils. This pump can be used in human engineering, fire, well water, kitchen sewage oil-water, transport department and so on the different places. The temperature of the medium transported not to exceed 60℃.
CS Marine Fresh Water Hand Pump is of double-acting reciprocating piston structure, suitable for delivery of fresh water, fuel sewage, and non-corrosive liquids, It is not suitable for the liquids containing fibers or other solid granules.
CS Marine Fresh Water Hand Pump is used to draw oil or freshwater, seawater.
Model Explanation
for example CS-20Y/H
C — Marine
S — Hand pump
20 — Inlet and outlet diameter 20mm
Y/H Iron cylinder or copper alloy
CS-20Y(S-20) — Applicable to pumping oil or water
CS-20H(SH-20)—Applicable to fresh water and sea water
CS Series Marine Fresh Water Hand Piston Pump Drawing

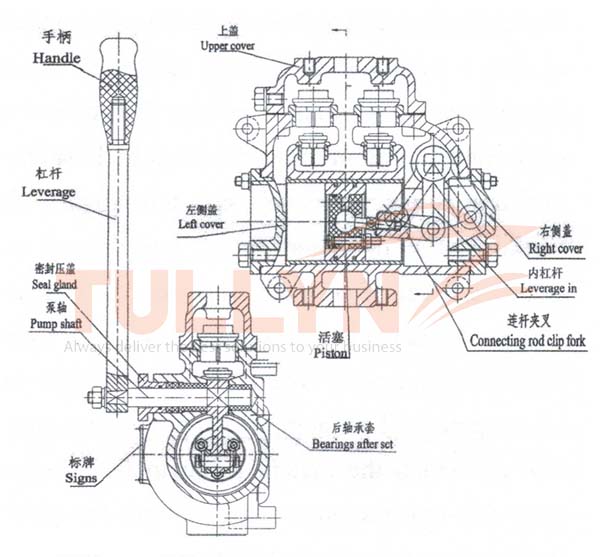

CS Series Marine Fresh Water Hand Piston Pump Construction
CS Series Marine Fresh Water Hand Piston Pump Specification
| Type | Inlet & Outlet diameter |
Capacity | Pressure | Reciprocating | Suction head |
acting force |
Weight |
| mm | L/min | MPa | min-1 | MPa | N | kg | |
| CS-15Y | 15 | 10 | 0.245 | 50 | 0.03 | 132 | 4 |
| CS-15H | 15 | 10 | 0.245 | 50 | 0.03 | 132 | 4 |
| CS-20Y | 20 | 20 | 0.245 | 50 | 0.059 | 206 | 5.5 |
| CS-20H | 20 | 20 | 0.245 | 50 | 0.059 | 206 | 5.5 |
| CS-25Y | 25 | 32 | 0.245 | 50 | 0.059 | 240 | 7.5 |
| CS-25H | 25 | 32 | 0.245 | 50 | 0.059 | 240 | 7.5 |
| CS-32Y | 32 | 48 | 0.245 | 50 | 0.059 | 275 | 9.8 |
| CS-32H | 32 | 48 | 0.245 | 50 | 0.059 | 275 | 9.8 |
| CS-40Y | 40 | 65 | 0.245 | 50 | 0.059 | 285 | 11 |
| CS-40H | 40 | 65 | 0.245 | 50 | 0.059 | 285 | 11 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
