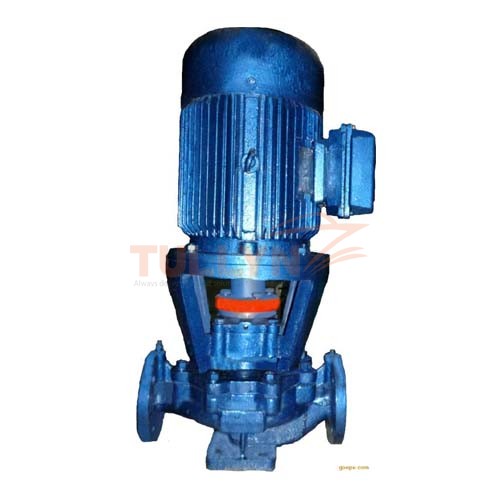

CLH Type Marine Vertical Centrifugal Pump
CLH Type Marine Vertical Centrifugal Pump Application
The CLH series vertical centrifugal marine pump is applied in all kinds of ship and warship for ballast pump, bilge pump, coolant pump, drainage pump and fire pump. It also used as a necessary feed pump for seawater desalting device and various tank equipment, and the booster pump for petroleum and chemical industry pipelines, cold and hot water circulating system and high-rise building living water supply system.
CLH Series marine vertical centrifugal pump is used at cabin bottom to cool water and fight the fire. It is able to carry seawater under 80 degrees or Freshwater and other non-eroding liquid.
CLH Type Marine Vertical Centrifugal Pump Specification
(50Hz 3φ 380V) Main technical parameter
| Type | Capacity | Head | Speed | NPSHr | Shaft power | Motor type & power | Weight |
| (m3/h) | (m) | (r/min) | (m) | (kW) | (kW) | (Kg) | |
| 25CLH-6.5Z | 3 | 8 | 2900 | 4 | 0.16 | Y80L1-2H 0.75 | |
| 40CLH-5Z | 10 | 30 | 2900 | 4 | 1.82 | Y90L-2H 2.2 | 73 |
| 40CLH-3.5Z | 5 | 30 | 2900 | 4 | 1.26 | Y90S-2H 1.5 | 65 |
| 40CLH-3Z | 10 | 50 | 2900 | 2.8 | 3.24 | Y112M-2H 4 | 110 |
| 40CLH-2.5Z | 10 | 65 | 2900 | 3 | 4.66 | Y132S1-2H 5.5 | |
| 40CLH-2Z | 5 | 50 | 2900 | 2.8 | 2.28 | Y100L-2H 3 | 104 |
| 50CLH-7Z | 20 | 30 | 2900 | 3 | 2.47 | Y112M-2H 4 | 83 |
| 50CLH-7AZ | 18 | 25 | 2900 | 3 | 1.92 | Y100L-2H 3 | 72 |
| 50CLH-4.5Z | 20 | 50 | 2900 | 3 | 4.54 | Y132S1-2H 5.5 | 98 |
| 50CLH-3.5Z | 20 | 65 | 2900 | 3.5 | 8.85 | Y160M1-2H 11 | 145 |
| 65CLH-8.5Z | 30 | 30 | 2900 | 3 | 4.02 | Y132S1-2H 5.5 | 125 |
| 65CLH-8.5AZ | 25 | 26 | 2900 | 3 | 2.95 | Y112M-2H 4 | 106 |
| 65CLH-5.5Z | 30 | 50 | 2900 | 3 | 6.92 | Y160M1-2H 11 | 171 |
| 65CLH-5.5AZ | 27 | 45 | 2900 | 3 | 5.7 | Y132S2-2H 7.5 | 140 |
| 65CLH-4.5Z | 30 | 65 | 2900 | 3 | 9.48 | Y160M1-2H 11 | 200 |
| 65CLH-4.5AZ | 27 | 58 | 2900 | 3 | 7.9 | Y160M1-2H 11 | 141 |
| 80CLH-16Z | 50 | 20 | 2900 | 3.5 | 3.6 | Y132S2-2H 5.5 | 156 |
| 80CLH-11Z | 50 | 30 | 2900 | 3.5 | 6.19 | Y132S2-2H 7.5 | 162 |
| 80CLH-11AZ | 45 | 26 | 2900 | 3.5 | 4.98 | Y132S2-2H 7.5 | 162 |
| 80CLH-7Z | 50 | 50 | 2900 | 3.5 | 10.47 | Y160M1-2H 15 | 245 |
| 80CLH-7AZ | 44 | 45 | 2900 | 3.5 | 8.56 | Y160M1-2H 11 | 230 |
| 80CLH-5.5Z | 50 | 65 | 2900 | 3.5 | 15.25 | Y160L-2H 18.5 | 275 |
| 80CLH-5.5AZ | 46 | 57 | 2900 | 3.5 | 12.76 | Y160M2-2H 15 | 250 |
| 80CLH-5 | 60 | 85 | 2900 | 4 | 24.8 | Y200L1-2H 30 | 595 |
| 80CLH-5A | 50 | 80 | 2900 | 4 | 19.5 | Y180M-2H 22 | 560 |
| 80CLH-4.5Z | 50 | 80 | 2900 | 3.5 | 19.5 | Y180M-2H 22 | 295 |
| 100CLH-22Z | 95 | 15 | 2900 | 5 | 5.18 | Y132M2-2H 7.5 | 142 |
| 100CLH-19Z | 100 | 20 | 2900 | 5 | 7.27 | Y160M1-2H 11 | 192 |
| 100CLH-15Z | 100 | 30 | 2900 | 4.8 | 11.19 | Y160M2-2H 15 | 215 |
| 100CLH-15AZ | 90 | 27 | 2900 | 4.8 | 9.32 | Y160M1-2H 11 | 192 |
| 100CLH-13Z | 70 | 30 | 2900 | 4 | 8.41 | Y160M1-2H 11 | 195 |
| 100CLH-13AZ | 63 | 27 | 2900 | 4 | 6.18 | Y160M1-2H 11 | 194 |
| 100CLH-11Z | 80 | 15 | 1450 | 2.5 | 4.36 | Y132S-4H 5.5 | 152 |
| 100CLH-10Z | 100 | 50 | 2900 | 4.8 | 18.39 | Y180M-2H 22 | 275 |
| 100CLH-10AZ | 86 | 45 | 2900 | 5 | 14.84 | Y160L-2H 18.5 | 240 |
| 100CLH-10 | 100 | 50 | 2900 | 4.8 | 18.39 | Y180M-2H 22 | 560 |
| 100CLH-10A | 86 | 45 | 2900 | 5 | 14.84 | Y160L-2H 18.5 | 540 |
| 100CLH-8.5Z | 70 | 45 | 2900 | 4 | 12.89 | Y160L-2H 18.5 | 239 |
| 100CLH-6 | 100 | 80 | 2900 | 3.8 | 30.3 | Y200L2-2H 37 | 480 |
| 100CLH-6A | 93 | 70 | 2900 | 3.8 | 24.2 | Y200L1-2H 30 | 450 |
| 100CLH-6B | 80 | 62 | 2900 | 3.8 | 18.5 | Y180M-2H 22 | 415 |
| 125CLH-19 | 150 | 30 | 2900 | 5 | 16.34 | Y180M-2H 22 | 308 |
| 125CLH-19A | 135 | 26.5 | 2900 | 5.5 | 13.32 | Y160L-2H 18.5 | 280 |
| 125CLH-19Z | 150 | 30 | 2900 | 5 | 16.34 | Y180M-2H 22 | 315 |
| 125CLH-19AZ | 135 | 26.5 | 2900 | 5.5 | 13.34 | Y160L-2H 18.5 | 295 |
| 125CLH-13 | 200 | 50 | 2900 | 5 | 34.9 | Y225M-2H 45 | 448 |
| 125CLH-13A | 185 | 44 | 2900 | 5 | 28.8 | Y200L2-2H 37 | 378 |
| 125CLH-13B | 165 | 34 | 2900 | 5 | 19.9 | Y180M-2H 22 | 313 |
| 125CLH-12 | 160 | 50 | 2900 | 5 | 28.3 | Y200L2-2H 37 | 378 |
| 125CLH-10 | 150 | 65 | 2900 | 5.5 | 36.86 | Y225M-2H 45 | 525 |
| 125CLH-10A | 130 | 58 | 2900 | 5.5 | 29.32 | Y200L2-2H 37 | 450 |
| 125CLH-8 | 140 | 86 | 2900 | 4 | 46.7 | Y250M-2H 55 | 650 |
| 125CLH-8A | 120 | 80 | 2900 | 4 | 38.5 | Y225M-2H 45 | 580 |
| 125CLH-6.5 | 150 | 110 | 2900 | 5.5 | 62.4 | Y280S-2H 75 | |
| 150CLH-26Z | 200 | 20 | 2900 | 5.5 | 14.3 | Y160L-2H 18.5 | |
| 150CLH-26AZ | 190 | 17 | 2900 | 5.5 | 11.7 | Y160M2-2H 15 | |
| 150CLH-22 | 200 | 30 | 2900 | 6 | 20.94 | Y200L1-2H 30 | |
| 150CLH-18Z | 160 | 14 | 1450 | 6.5 | 7.63 | Y160M-4H 11 | 258 |
| 150CLH-13.5 | 180 | 50 | 2900 | 5 | 32.67 | Y225M-2H 45 | 448 |
| 150CLH-13 | 200 | 20 | 1450 | 3.5 | 13.62 | Y180M-4H 18.5 | 450 |
| 150CLH-13A | 187 | 17 | 1450 | 3.5 | 11 | Y160L-4H 15 | 422 |
| 150CLH-11 | 180 | 65 | 2900 | 6.2 | 43.63 | Y250M-2H 55 | 750 |
| 150CLH-10.5 | 250 | 32 | 1450 | 4 | 29.1 | Y225S-4H 37 | 590 |
| 150CLH-10 | 260 | 86 | 2900 | 4 | 81.7 | Y315S-2H 110 | |
| 150CLH-9 | 200 | 32 | 1450 | 3.5 | 22.1 | Y200L-4H 30 | 590 |
| 150CLH-9A | 180 | 28 | 1450 | 3.5 | 18.2 | Y180L-4H 22 | 500 |
| 150CLH-9B | 160 | 25 | 1450 | 3.5 | 14.7 | Y160L-2H 18.5 | 485 |
| 150CLH-6 | 160 | 50 | 1450 | 5 | 29.8 | Y225S-4H 37 | 630 |
| 150CLH-6A | 150 | 45 | 1450 | 5 | 25.2 | Y200L-4H 30 | 610 |
| 200CLH-9 | 320 | 32 | 1450 | 4 | 36.7 | Y225M-4H 45 | 719 |
| 200CLH-12 | 300 | 30 | 1450 | 4 | 30.6 | Y225S-4H 37 | 685 |
| 200CLH-12A | 280 | 25 | 1450 | 4 | 24.1 | Y200L-4H 30 | 625 |
| 200CLH-18 | 400 | 20 | 1450 | 4.5 | 27.2 | Y225S-4H 37 | 685 |
| 250CLH-18 | 500 | 30 | 1450 | 4.5 | 51.1 | Y280S-4H 75 | 895 |
| 250CLH-18A | 500 | 24 | 1450 | 4.5 | 40.9 | Y225M-4H 45 | 789 |
| 250CLH-18B | 450 | 20 | 1450 | 4.5 | 33.6 | Y225S-4H 37 | 754 |
| 2/40CLH-2Z | 6 | 110 | 2900 | 3.5 | 5.14 | Y132S2-2H 7.5 | 170 |
| 2/40CLH-3 | 20 | 70 | 2900 | 3.5 | 10.05 | Y160M2-2H 15 | |
| 2/50CLH-2.5 | 35 | 140 | 2900 | 4 | 26.15 | Y200L1-2H 30 | |
| 2/65CLH-3.5 | 50 | 120 | 2900 | 4.5 | 27.68 | Y200L2-2H 37 |
60Hz 3φ 440V Technical Data
| Type | Capacity | Head | Speed | NPSHr | Shaft power | Motor type & power |
| (m3/h) | (m) | (r/min) | (m) | (kW) | (kW) | |
| 25CLH-6.5ZG | 3.6 | 11.5 | 3500 | 4 | 0.27 | Y80L1-2H 0.75 |
| 40CLH-5ZG | 12 | 42 | 3500 | 5 | 3.05 | Y112M-2H 4 |
| 40CLH-3.5ZG | 6 | 45 | 3500 | 5 | 2.26 | Y100L-2H 3 |
| 40CLH-3ZG | 12 | 72 | 3500 | 4 | 5.88 | Y132S2-2H 7.5 |
| 40CLH-2.5ZG | 12 | 93 | 3500 | 4 | 7.6 | Y160M1-2H 11 |
| 40CLH-2ZG | 6 | 72 | 3500 | 4 | 3.36 | Y112M-2H 4 |
| 50CLH-7ZG | 24 | 42 | 3500 | 4.2 | 4.65 | Y132S1-2H 5.5 |
| 50CLH-7AZG | 21 | 36 | 3500 | 4.2 | 3.22 | Y112M-2H 4 |
| 50CLH-4.5ZG | 24 | 72 | 3500 | 4.1 | 8.55 | Y160M1-2H 11 |
| 50CLH-3.5ZG | 24 | 93 | 3500 | 3.8 | 15.2 | Y160L-2H 18.5 |
| 65CLH-8.5ZG | 36 | 42 | 3500 | 4.3 | 6.43 | Y132S2-2H 7.5 |
| 65CLH-8.5AZG | 30 | 37 | 3500 | 4.5 | 4.88 | Y132S1-2H 5.5 |
| 65CLH-5.5ZG | 36 | 72 | 3500 | 4.9 | 12.2 | Y160M2-2H 15 |
| 65CLH-5.5AZG | 32 | 64 | 3500 | 4.9 | 9.62 | Y160M1-2H 11 |
| 65CLH-4.5ZG | 36 | 93 | 3500 | 4.2 | 16.9 | Y180M-2H 22 |
| 65CLH-4.5AZG | 32 | 82 | 3500 | 4.2 | 13.2 | Y160M2-2H 15 |
| 80CLH-16ZG | 60 | 28 | 3500 | 4.5 | 6.1 | Y132S2-2H 7.5 |
| 80CLH-11ZG | 60 | 42 | 3500 | 5 | 10.1 | Y160M2-2H 15 |
| 80CLH-11AZG | 54 | 37 | 3500 | 5 | 8.12 | Y160M1-2H 11 |
| 80CLH-7ZG | 60 | 72 | 3500 | 5.6 | 18.1 | Y180M-2H 22 |
| 80CLH-7AZG | 52 | 64 | 3500 | 5.6 | 14.4 | Y160L-2H 18.5 |
| 80CLH-5.5G | 60 | 93 | 3500 | 4.8 | 25.3 | Y200L1-2H 30 |
| 80CLH-5.5AG | 55 | 82 | 3500 | 4.8 | 21.2 | Y200L1-2H 30 |
| 80CLH-5 | 72 | 122 | 3500 | 4.8 | 42.7 | Y250M-2H 55 |
| 80CLH-5A | 60 | 115 | 3500 | 4.8 | 33.6 | Y225M-2H 45 |
| 80CLH-4.5G | 60 | 115 | 3500 | 4.8 | 33.6 | Y200L2-2H 37 |
| 100CLH-22ZG | 110 | 22 | 3500 | 6.5 | 9.03 | Y160M1-2H 11 |
| 100CLH-19ZG | 120 | 28 | 3500 | 6.5 | 12.2 | Y160M1-2H 15 |
| 100CLH-15G | 120 | 42 | 3500 | 5.7 | 19.3 | Y180M-2H 22 |
| 100CLH-15AG | 108 | 38 | 3500 | 5.7 | 15.7 | Y160L-2H 18.5 |
| 100CLH-13G | 84 | 42 | 3500 | 5.7 | 13.9 | Y160L-2H 18.5 |
| 100CLH-13AG | 75 | 38 | 3500 | 5.7 | 11.6 | Y160M2-2H 15 |
| 100CLH-11G | 95 | 21 | 1750 | 4 | 7.4 | Y160M-4H 11 |
| 100CLH-10G | 120 | 72 | 3500 | 6.5 | 33.6 | Y200L2-2H 37 |
| 100CLH-10AG | 103 | 64 | 3500 | 6.5 | 26 | Y200L1-2H 30 |
| 100CLH-8.5G | 84 | 64 | 3500 | 4.2 | 22.5 | Y200L1-2H 30 |
| 100CLH-6G | 120 | 115 | 3500 | 5.5 | 52.2 | Y280S-2H 75 |
| 100CLH-6AG | 110 | 100 | 3500 | 5.5 | 41.6 | Y250M-2H 55 |
| 100CLH-6BG | 96 | 89 | 3500 | 5.5 | 32.8 | Y200L2-2H 37 |
| 125CLH-19G | 180 | 42 | 3500 | 7 | 28.2 | Y200L2-2H 37 |
| 125CLH-19AG | 160 | 38 | 3500 | 7 | 22.7 | Y200L1-2H 30 |
| 125CLH-13G | 240 | 72 | 3500 | 7 | 60.3 | Y280S-2H 75 |
| 125CLH-13AG | 220 | 63 | 3500 | 7 | 49 | Y250M-2H 55 |
| 125CLH-13BG | 195 | 48 | 3500 | 7 | 25.5 | Y200L1-2H 30 |
| 125CLH-12G | 190 | 72 | 3500 | 7 | 48.4 | Y250M-2H 55 |
| 125CLH-10G | 180 | 93 | 3500 | 7 | 63.3 | Y280S-2H 75 |
| 125CLH-10AG | 155 | 82 | 3500 | 7 | 49.4 | Y250M-2H 55 |
| 125CLH-8G | 165 | 123 | 3500 | 6.5 | 79 | Y280M-2H 90 |
| 125CLH-6.5G | 180 | 158 | 3500 | 6.5 | 107.8 | Y315M-2H 132 |
| 150CLH-26G | 240 | 28 | 3500 | 6.5 | 24.1 | Y200L1-2H 30 |
| 150CLH-26AG | 225 | 24 | 3500 | 6.5 | 19.6 | Y180M-2H 22 |
| 150CLH-22G | 240 | 42 | 3500 | 7.2 | 35.2 | Y225M-2H 45 |
| 150CLH-18ZG | 190 | 20 | 1750 | 7.5 | 12.9 | Y160L-4H 15 |
| 150CLH-13.5G | 215 | 72 | 3500 | 6.5 | 56.2 | Y280S-2H 75 |
| 150CLH-13G | 240 | 28 | 1750 | 4.5 | 22.88 | Y200L-4H 30 |
| 150CLH-13AG | 224 | 25 | 1740 | 4.5 | 19.3 | Y180L-4H 22 |
| 150CLH-11G | 215 | 93 | 3500 | 7 | 74.6 | Y280M-2H 90 |
| 150CLH-10.5 G | 300 | 45 | 1750 | 6 | 49.1 | Y250M-4H 55 |
| 150CLH-10G | 310 | 123 | 3500 | 6 | 135.1 | Y315L1-2H 160 |
| 150CLH-9G | 215 | 45 | 1750 | 4.5 | 33.6 | Y225M-4H 45 |
| 150CLH-9AG | 180 | 40 | 1750 | 4.5 | 26.1 | Y200L-4H 30 |
| 150CLH-6G | 190 | 72 | 1750 | 6 | 51 | Y280S-4H 75 |
| 150CLH-6AG | 180 | 64 | 1750 | 6 | 43 | Y250M-4H 55 |
| 200CLH-9G | 384 | 46 | 1750 | 5.5 | 63.3 | Y280S-4H 75 |
| 200CLH-12G | 360 | 42 | 1750 | 5.5 | 51.5 | Y280S-4H 75 |
| 200CLH-12AG | 335 | 36 | 1750 | 5.5 | 41.6 | Y250M-4H 55 |
| 200CLH-18G | 482 | 29 | 1750 | 5.5 | 47.58 | Y250M-4H 55 |
| 250CLH-18G | 600 | 43 | 1750 | 5.5 | 87.8 | Y315S-4H 110 |
| 250CLH-18AG | 600 | 35 | 1750 | 5.5 | 71.5 | Y280M-4H 90 |
| 250CLH-18BG | 540 | 28 | 1750 | 5.5 | 56.4 | Y280S-4H 75 |
| 2/40CLH-2G | 7 | 158 | 3500 | 4.2 | 8.9 | Y160M2-2H 15 |
| 2/40CLH-3G | 24 | 100 | 3500 | 4.2 | 17.2 | Y180M-2H 22 |
| 2/50CLH-2.5G | 42 | 200 | 3500 | 4.2 | 44.9 | Y250M-2H 55 |
| 2/65CLH-3.5G | 60 | 172 | 3500 | 5 | 47.6 | Y250M-2H 55 |
| 250CLH-18A | 500 | 24 | 1450 | 4.5 | 40.9 | Y225M-4H 45 |
| 250CLH-18B | 450 | 20 | 1450 | 4.5 | 33.6 | Y225S-4H 37 |
| 2/40CLH-2Z | 6 | 110 | 2900 | 3.5 | 5.14 | Y132S2-2H 7.5 |
| 2/40CLH-3 | 20 | 70 | 2900 | 3.5 | 10.05 | Y160M2-2H 15 |
| 2/50CLH-2.5 | 35 | 140 | 2900 | 4 | 26.15 | Y200L1-2H 30 |
| 2/65CLH-3.5 | 50 | 120 | 2900 | 4.5 | 27.68 | Y200L2-2H 37 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
