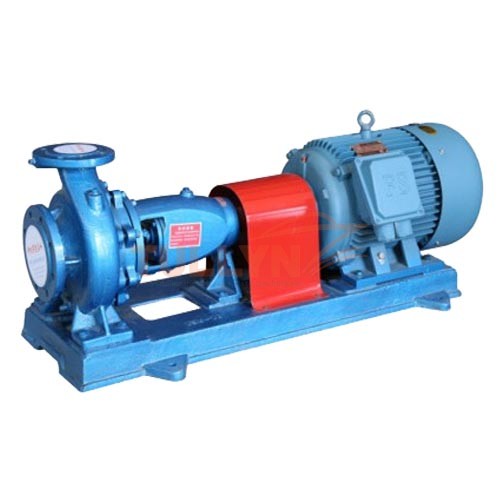

CIS Type Marine Horizontal Centrifugal Pump
CIS Type Marine Horizontal Centrifugal Pump Description
CIS Type Marine Horizontal Centrifugal Pump is single-stage,single-suction(axial inhalation) centrifugal pump, which is used onboard as fresh water and sea water cooling pump, and sanitary pump, domestic pump and daily water pump with motor-driven. Transmission medium temperature should be lower than 75c.
CIS Type Marine Horizontal Centrifugal Pump is applicable to water supply and drainage of the ship. It also can be used for the industrial, urban water supply and drainage, irrigation and water conservancy irrigation.

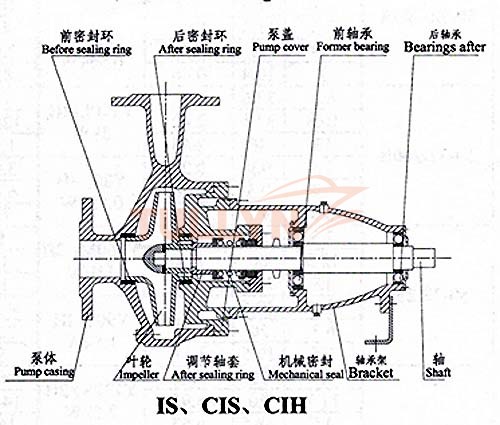

CIS Type Marine Horizontal Centrifugal Pump Drawing
CIS Type Marine Horizontal Centrifugal Pump Drawing
CIS Type Marine Horizontal Centrifugal Pump Data
| Model | The motor power kW |
Motor speed r/min |
traffic m3/h |
lift m |
|---|---|---|---|---|
| CIS50-32-125 | 2.2 | 2900 | 12.5 | 20 |
| 0.55 | 1450 | 6.3 | 5 | |
| CIS50-32-160 | 3 | 2900 | 12.5 | 32 |
| 0.55 | 1450 | 6.3 | 8 | |
| CIS50-32-200 | 5.5 | 2900 | 12.5 | 50 |
| 0.75 | 1450 | 6.3 | 12.5 | |
| CIS50-32-250 | 11 | 2900 | 12.5 | 80 |
| 1.5 | 1450 | 6.3 | 20 | |
| CIS65-40-200 | 7.5 | 2900 | 25 | 50 |
| 1.1 | 1450 | 12.5 | 12.5 | |
| CIS65-40-250 | 15 | 2900 | 25 | 80 |
| 2.2 | 1450 | 12.5 | 20 | |
| CIS65-40-315 | 30 | 2900 | 25 | 125 |
| 4 | 1450 | 12.5 | 32 | |
| CIS65-50-125 | 3 | 2900 | 25 | 20 |
| 0.55 | 1450 | 12.5 | 5 | |
| CIS65-50-160 | 4 | 2900 | 25 | 32 |
| 0.75 | 1450 | 12.5 | 8 | |
| CIS80-50-200 | 15 | 2900 | 50 | 50 |
| 2.2 | 1450 | 25 | 12.5 | |
| CIS80-50-250 | 22 | 2900 | 50 | 80 |
| 3 | 1450 | 25 | 20 | |
| CIS80-50-315 | 37 | 2900 | 50 | 125 |
| 5.5 | 1450 | 25 | 32 | |
| CIS80-65-125 | 5.5 | 2900 | 50 | 20 |
| 0.75 | 1450 | 25 | 5 | |
| CIS80-65-160 | 7.5 | 2900 | 50 | 32 |
| 1.5 | 1450 | 25 | 8 | |
| CIS100-65-200 | 22 | 2900 | 100 | 50 |
| 4 | 1450 | 50 | 12.5 | |
| CIS100-65-250 | 37 | 2900 | 100 | 80 |
| 5.5 | 1450 | 50 | 20 | |
| CIS100-65-315 | 75 | 2900 | 100 | 125 |
| 11 | 1450 | 50 | 32 | |
| CIS100-80-125 | 11 | 2900 | 100 | 20 |
| 1.5 | 1450 | 50 | 5 | |
| CIS100-80-160 | 15 | 2900 | 100 | 32 |
| 2.2 | 1450 | 50 | 8 | |
| CIS125-100-200 | 45 | 2900 | 200 | 50 |
| 7.5 | 1450 | 100 | 12.5 | |
| CIS125-100-250 | 75 | 2900 | 200 | 80 |
| 11 | 1450 | 100 | 20 | |
| CIS125-100-315 | 110 | 2900 | 200 | 125 |
| 15 | 1450 | 100 | 32 | |
| CIS150-125-250 | 18.5 | 1450 | 200 | 20 |
| CIS150-125-315 | 30 | 1450 | 200 | 32 |
| CIS200-150-250 | 37 | 1450 | 400 | 20 |
| CIS200-150-315 | 55 | 1450 | 400 | 32 |
| CIS200-200-200 | 18.5 | 1450 | 400 | 12.5 |
Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
