CGW Series Marine Inline Sewage Pump Sludge Discharge Pump

Capacity: 3-15m³/h
Head: 21-85m
Speed: 2950r/min
Power: 0.37-2.2Kw
NPSHr: 4-10m
Material: Cast iron, Stainless Steel

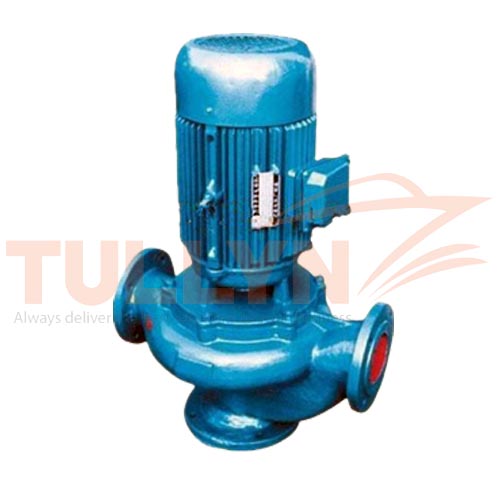

CGW Series Marine Inline Sewage Pump Sludge Discharge Pump

CGW Series Marine Inline Sewage Pump Sludge Discharge Pump Application

The CGW Series Marine Inline Sewage Pump Sludge Discharge Pump is a motor-driven uprightness single-channel impeller centrifugal drainage pump(sump pump). The pumps of this series are suitable for transferring sewage, industrial wastewater, oily water of seawater at a temperature below 85c, containing solids with a diameter up to one-third of that of the pump port, and fibers with a length up to five times of that of the ports. They are the best choice for use in conjunction with wastewater treatment plants.

Model Explanation

For the Model 20CGW-3-6

20 stand for 20mm inlet and outlet diameter

C stands for Marine pump

G stands for Meatus

W stands for Sump pump

3 stand for a rated flow of 3M3/h

6 divided 100 stands for pressure at rated flow 0.06mpa

CGW Series Marine Inline Sewage Pump Sludge Discharge Pump Specification

Model flow rate pressure Motor power Inlet pipe diameter outlet pipe diameter
Q(m3/h) (Mpa) (kw) (mm) (mm)
20CGW-3-6 3 0.06 0.37 20 20
25CGW-2-4 2 0.04 0.25 25 25
25CGW-5-10 5 0.1 0.55 25 25
25CGW-10-15 10 0.15 1.1 25 25
32CGW-8-15 8 0.15 1.1 32 32
32CGW-10-25 10 0.25 1.5 32 32
40CGW-10-15 10 0.15 1.1 40 40
40CGW-15-25 15 0.25 2.2 40 40

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
