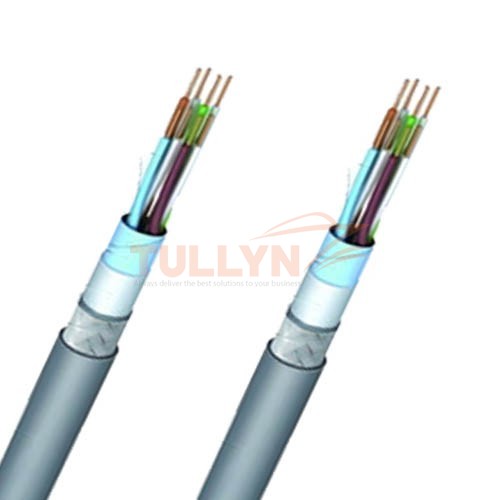

Cat6 UTP/FTP Marine Armoured Data Cable
Cat6 UTP/FTP Marine Armoured Data Cable Application
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armored & flame retardant mud resistant outer sheath, providing additional mechanical protection still maintaining the flexibility of the cable.
Cable Designation:
Cat6 F/UTP: These cables have collective shielding of aluminum/Polyester tape with drain wire.
Cat6 SF/UTP: These cables have double collective shieldings of aluminum/Polyester tape & copper wire braid with drain wire.
Standard:
Design Guide: IEC 60092-350 and IEC 60092-353
Insulation material: IEC 60092-351, XLPE Sheath material: IEC 60092-359, SHF1
Flame retardant: IEC60332-1 and IEC 60332-3 Category A
Halogen content: IEC60754-1, 0.5%↓ Smoke emission: IEC 61034, 60%↑
Cat6 UTP/FTP Marine Armoured Data Cable Construction
| Conductors | 24AWG solid bare copper |
| Insulation | HDPE |
| Pairing | Two colored insulated conductors twisted together to form a pair. |
| Bedding | Flame retardant, low smoke and halogen-free polyolefin, colored black |
| Armor | 0.2/0.3mm copper wire braid |
| Sheath | Low smoke and halogen-free polyolefin |
Cat6 UTP/FTP Marine Armoured Data Cable Electrical Data
| AWG | 23 | |
| Nominal Conductor Diameter | mm | 0.57 |
| Maximum DC Resistant@20℃ | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 3 |
| Maximum Mutual Capacitance | pF/m | 5.8 |
| Maximum Capacitance Unbalance | pF/100m | 30 |
| Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
| Maximum Propagation Delay Skew | ns/100m | 18 |
| FREQ MHz | Maximum Attenuation dB/100m | Minimum NEXT dB | Minimum PSNEXT dB | Minimum ELFEXT dB/100m | Minimum PSELFEXT dB/100m | Minimum RL dB |
| 0.772 | 1.8 | 76.0 | 74.0 | 70.0 | 67.0 | — |
| 1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
| 200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
Cat6 UTP/FTP Marine Armoured Data Cable Specification
| Construction No. of elements×No. of cores in element×Conductor diameter (mm) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|---|---|---|---|---|
| 4×2×0.57 | 0.2 | 1.2 | 11.5 | 214 |
Please Note:
More Specifications, please check with our sales.
Photographs are not to scale and do not represent detailed images of the respective products. The above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
