Byers Anchor Introduction
The Byers anchor is a conventional type stockless anchor. It is widely used in the marine application. The anchor is of high quality and good stability. The weight of Byers Anchor is 20KGS-20,000kgs.
The Byers Stockless Anchor can be supplied with certification from any of the major classification societies

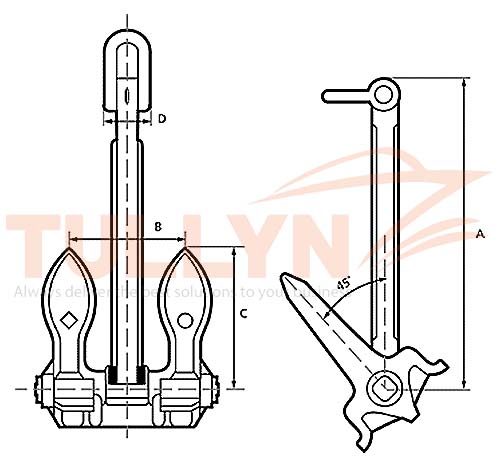

Byers Anchor Drawing
Bayers Anchor Drawing
Byers Anchor Specification
| Nominal Weight |
A | B | C | D |
| Kg | mm | mm | mm | mm |
| 220 | 1041 | 420 | 495 | 165 |
| 266 | 1067 | 432 | 502 | 165 |
| 318 | 1092 | 432 | 502 | 178 |
| 360 | 1143 | 457 | 600 | 178 |
| 412 | 1168 | 533 | 610 | 209 |
| 457 | 1219 | 533 | 650 | 209 |
| 493 | 1245 | 572 | 660 | 216 |
| 600 | 1321 | 572 | 660 | 216 |
| 700 | 1422 | 610 | 720 | 228 |
| 805 | 1575 | 640 | 740 | 241 |
| 915 | 1600 | 650 | 787 | 241 |
| 1025 | 1651 | 711 | 838 | 254 |
| 1130 | 1702 | 711 | 864 | 254 |
| 1250 | 1829 | 750 | 898 | 266 |
| 1350 | 1880 | 750 | 920 | 266 |
| 1475 | 1880 | 787 | 946 | 292 |
| 1600 | 1930 | 787 | 965 | 292 |
| 1720 | 1981 | 838 | 999 | 305 |
| 1870 | 1981 | 838 | 1022 | 305 |
| 2030 | 2108 | 838 | 1041 | 318 |
| 2200 | 2184 | 889 | 1080 | 330 |
| 2360 | 2210 | 814 | 1110 | 330 |
| 2540 | 2286 | 946 | 1118 | 330 |
| 2700 | 2362 | 980 | 1180 | 343 |
| 2900 | 2438 | 990 | 1180 | 343 |
| 3100 | 2438 | 1041 | 1219 | 370 |
| 3300 | 2489 | 1041 | 1346 | 369 |
| 3500 | 2510 | 1067 | 1372 | 369 |
| 3750 | 2591 | 1092 | 1397 | 393 |
| 4000 | 2616 | 1092 | 1397 | 393 |
| 4150 | 2667 | 1092 | 1397 | 406 |
| 4370 | 2692 | 1143 | 1448 | 406 |
| 4575 | 2769 | 1168 | 1448 | 406 |
| 4780 | 2870 | 1168 | 1448 | 432 |
| 5030 | 2896 | 1168 | 1448 | 436 |
| 5250 | 3048 | 1168 | 1473 | 438 |
| 5450 | 3073 | 1168 | 1473 | 445 |
| 5700 | 3099 | 1168 | 1473 | 452 |
| 5900 | 3099 | 1168 | 1473 | 457 |
| 6100 | 3124 | 1295 | 1549 | 457 |
| 6350 | 3200 | 1321 | 1549 | 457 |
| 6600 | 3277 | 1321 | 1549 | 470 |
| 6800 | 3353 | 1321 | 1549 | 470 |
| 7100 | 3353 | 1321 | 1549 | 470 |
| 7350 | 3353 | 1346 | 1702 | 470 |
| 7700 | 3353 | 1346 | 1702 | 477 |
| 8000 | 3353 | 1422 | 1702 | 477 |
| 8300 | 3404 | 1422 | 1753 | 528 |
| 8650 | 3404 | 1422 | 1753 | 528 |
| 8900 | 3505 | 1499 | 1803 | 559 |
| 9800 | 3658 | 1499 | 1803 | 572 |
| 9550 | 3759 | 1524 | 1803 | 572 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
