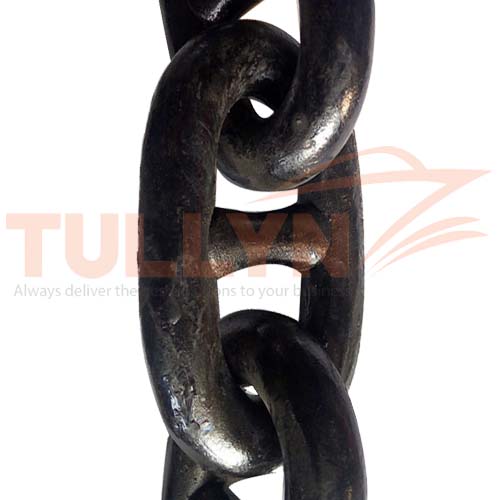

Black Painted Stud Link Anchor Chain

Black Painted Stud Link Anchor Chain

Material: Steel, Carbon steel, Galvanized Steel, Stainless Steel
Surface Treatment: Bitumen, Black tarred, Hot Dip Galvanized
Grade: AM2, AM3 Anchor Chain & Accessories
Size: 11mm – 167mm
Standard: ISO-1704-2007,IACSW18,W22,API-2F(U.S.A)
Application: Used for a Range of Floating Equipment, Including Oil Rigs, Ships, and Mooring Buoys

Categories: , Tags: , , , , , , , , ,

Black Painted Stud Link Anchor Chain

Black Painted Stud Link Anchor Chain Introduction

Black Painted Stud link chain is produced to ISO 1704 standards. They are used for anchor and mooring chains, stud link chains have a central stud for extra strength.

Black Painted Stud link chains are available in various grades from grade 2 up to grade 3. The stud link anchor chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping. The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality. Stud link chains are available in black (tarred), galvanized and stainless steel.

Black Painted Stud Link Anchor Chain which is used as Mooring Chain. This Offshore Chain has a Stud Link Chain design and is an exceptional Marine Chain. This anchor chain is used For a Range of Floating Equipment, Including Oil Rigs, Ships, and Mooring Buoys.

This stud link anchor chain is available in Grades R3, R3S, R4 and 5, Sizes Range from Ø11-167mm.

This black painted Stud link anchor chain can be supplied with certification from any of the major classification societies.

Black Painted Stud Link Anchor Chain Drawing

Stud link Anchor Chain Drawing

Stud link Anchor Chain Drawing

Black Painted Stud Link Anchor Chain Drawing

Dia. Grade 1 Grade 2 Grade 3 Theoretical
Weight
mm Breaking Load (kN) Proof Load Breaking Load (kN) Proof Load (kN) Breaking Load (kN) Proof Load (kN) kg/m
11 52 36 72 52 102 72 2.65
12.5 66 46 92 66 132 92 3.42
14 82 58 116 82 165 116 4.29
16 107 76 150 107 216 150 5.61
17.5 127 89 179 127 256 179 6.71
19 150 105 211 150 301 211 7.91
20.5 175 123 244 175 349 244 9.2
22 200 140 280 200 401 280 10.6
24 237 167 332 237 476 332 12.61
26 278 194 389 278 556 389 14.8
28 321 225 449 321 642 449 17.17
30 368 257 514 368 735 514 19.71
32 417 291 583 417 833 583 22.43
34 468 328 655 468 937 655 25.32
36 523 366 732 523 1050 732 28.38
38 581 406 812 581 1160 812 31.62
40 640 448 895 640 1280 895 35.04
42 703 492 981 703 1400 981 38.63
44 769 538 1080 769 1540 1080 42.4
46 837 585 1170 837 1680 1170 46.34
48 908 635 1270 908 1810 1270 50.46
50 981 686 1370 981 1960 1370 54.75
52 1060 739 1480 1060 2110 1480 59.22
54 1140 794 1590 1140 2270 1590 63.86
56 1220 851 1710 1220 2430 1710 68.68
58 1290 909 1810 1290 2600 1810 73.67
60 1380 969 1940 1380 2770 1940 78.84
62 1470 1030 2060 1470 2940 2060 84.18
64 1560 1100 2190 1560 3130 2190 89.7
66 1660 1160 2310 1660 3300 2310 95.4
68 1750 1230 2450 1750 3500 2450 101.3
70 1840 1290 2580 1840 3690 2580 107.3
73 1990 1390 2790 1990 3990 2790 116.71
76 2150 1500 3010 2150 4300 3010 126.5
78 2260 1580 3160 2260 4500 3160 133.2
81 2410 1690 3380 2410 4820 3380 143.69
84 2580 1800 3610 2580 5160 3610 154.53
87 2750 1920 3850 2750 5500 3850 165.76
90 2920 2050 4090 2920 5840 4090 177.39
92 3040 2130 4260 3040 6080 4260 185.36
95 3230 2260 4510 3230 6440 4510 197.56
97 3340 2340 4680 3340 6690 4680 206.06
100 3530 2470 4940 3530 7060 4940 219
102 3660 2560 5120 3660 7320 5120 227.85
105 3850 2700 5390 3850 7700 5390 241.45
107 3980 2790 5570 3980 7960 5570 250.73
111 4250 2970 5940 4250 8480 5940 269.83
114 4440 3110 6230 4440 8890 6230 284.61
117 4650 3260 6510 4650 9300 6510 299.79
120 4850 3400 6810 4850 9720 6810 315.86
122 5000 3500 7000 5000 9990 7000 325.96
124 5140 3600 7200 5140 10280 7200 336.73
127 5350 3750 7490 5350 10710 7490 353.23
130 5570 3900 7800 5570 11140 7800 370.11
132 5720 4000 8000 5720 11420 8000 381.59
137 6080 4260 8510 6080 12160 8510 411.04
142 6450 4520 9030 6450 12910 9030 441.59
147 6840 4790 9560 6840 13660 9560 473.59
152 7220 5050 10100 7220 14430 10100 505.98
157 7600 5320 10640 7600 15200 10640 539.81
162 7990 5590 11180 7990 15980 11180 574.74

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
