BFOI Fire Resistant Marine Power&Control Cable 600/1000V
BFOI Fire Resistant Marine Power&Control Cable Application
BFOI armored power and control marine cable suitable for ship wiring and shipboard cable where armor protection and fire resistant is required.
Design Guide: IEC 60092-350 and IEC 60092-353
Insulation material: IEC 60092-351, XLPE Sheath material: IEC 60092-359, SHF1
Flame retardant: IEC60332-1 and IEC 60332-3 Category A
Fire resistance : IEC 60331-21(90min) IEC 60331-1,-2(120min)
Halogen content: IEC60754-1, 0.5%↓ Smoke emission: IEC 61034, 60%↑

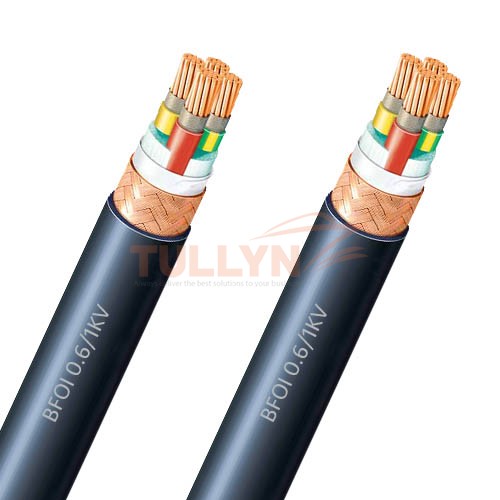

BFOI Fire Resistant Marine Power&Control Cable Construction
| Conductor: | Stranded plain annealed copper wires as per IEC 60228, class 2. | |
| Insulation: | Mica Tape+XLPE as per IEC60092-351 | |
| Cabling: | Insulated conductors shall be cabled. Flame retardant and non-hygroscopic fillers may be used. Suitable tapes may be applied on the cabled core. | |
| Inner covering: | Non-hygroscopic material | |
| Armour: | Braid of annealed copper wire/ Coverage density min. 90% | |
| Sheath: | SHF1 as per IEC60092-359 | |
| Colour: | Black | |
| Core Identification: | 1 Core – Black 2 Core – Black and Light Blue 3 Core – Black, Brown and Light Blue 4 Core – Black, Blue, Brown, and White 5 Core and Above – White and numbered |
|
BFOI Fire Resistant Marine Power&Control Cable Specification
One Core Specification
| No of Cores |
Nominal area |
Max. Conductor dia. |
Nominal Overall diameter |
Tolerance of OD |
Min. Conductor resistance (at 20°C) |
Cable weight |
| Ea | mm² | mm | mm | ±mm | Ω/km | Kg/km |
| 1 | 1.5 | 1.7 | 7 | 0.5 | 12.1 | 80 |
| 1 | 2.5 | 2.1 | 7.5 | 0.5 | 7.41 | 100 |
| 1 | 4 | 2.7 | 8 | 0.5 | 4.61 | 120 |
| 1 | 6 | 3.3 | 8.8 | 0.5 | 3.08 | 150 |
| 1 | 10 | 4.2 | 9.8 | 0.6 | 1.83 | 200 |
| 1 | 16 | 5.3 | 10.8 | 0.6 | 1.15 | 270 |
| 1 | 25 | 6.6 | 12.7 | 0.7 | 0.727 | 400 |
| 1 | 35 | 7.9 | 14.3 | 0.7 | 0.524 | 540 |
| 1 | 50 | 9.1 | 15.9 | 0.8 | 0.387 | 680 |
| 1 | 70 | 11 | 18.1 | 0.8 | 0.268 | 930 |
| 1 | 95 | 12.9 | 20.2 | 0.9 | 0.193 | 1220 |
| 1 | 120 | 14.5 | 22.2 | 0.9 | 0.153 | 1500 |
| 1 | 150 | 16.2 | 24.2 | 1 | 0.124 | 1810 |
| 1 | 185 | 18 | 26.6 | 1.1 | 0.0991 | 2230 |
| 1 | 240 | 20.6 | 29.7 | 1.2 | 0.1754 | 2850 |
| 1 | 300 | 23.1 | 32.5 | 1.3 | 0.0601 | 3510 |
Please Note:
More Specifications, please check with our sales.
Photographs are not to scale and do not represent detailed images of the respective products. The above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
