95 Type SPEK Anchor
95 Type SPEK Anchor Introduction
95 Type Spek anchor is a commonly used conventional stockless anchor found throughout the commercial shipping and cruise vessel markets. Its smart design makes it a perfect fit for the anchor pocket, making a seamless connection with the anchor and the bow of the vessel. Its additional proven performance makes the Spek anchor an attractive anchor for your ship.
The Spek anchor is designed to fit in anchor pockets. In recent years these anchors have become one of the most commonly used stockless anchors on new buildings.These anchors are available in sizes from 100kg to 26000kg. CB711-95 Spek anchor is used as bow anchor for sailing ships and used as positioning working anchor for engineering ships.
95 type SPEK anchor can be supplied with certification, from all major classification societies.

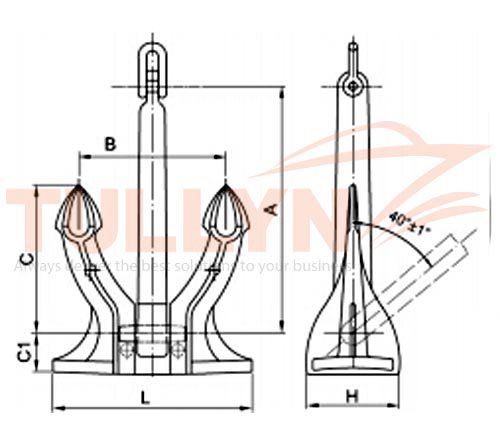

95 Type SPEK Anchor Drawing
95 Type SPEK Anchor Drawing
95 Type SPEK Anchor Specification
| Nominal Weight | A | B | C | C1 | L | H |
| KG | mm | mm | mm | mm | mm | mm |
| 100 | 672 | 373 | 373 | 112 | 515 | 250 |
| 150 | 770 | 428 | 428 | 128 | 590 | 290 |
| 180 | 846 | 470 | 470 | 140 | 640 | 300 |
| 240 | 900 | 500 | 500 | 150 | 690 | 358 |
| 300 | 990 | 550 | 550 | 166 | 760 | 398 |
| 360 | 1065 | 600 | 600 | 180 | 828 | 431 |
| 420 | 1080 | 600 | 600 | 180 | 828 | 446 |
| 500 | 1170 | 650 | 650 | 196 | 900 | 446 |
| 570 | 1170 | 650 | 650 | 196 | 900 | 486 |
| 660 | 1260 | 700 | 700 | 210 | 962 | 486 |
| 780 | 1355 | 750 | 750 | 225 | 1032 | 547 |
| 900 | 1440 | 800 | 800 | 240 | 1100 | 573 |
| 1020 | 1530 | 850 | 850 | 252 | 1170 | 591 |
| 1140 | 1620 | 900 | 900 | 268 | 1240 | 620 |
| 1290 | 1710 | 900 | 900 | 268 | 1240 | 640 |
| 1440 | 1710 | 950 | 950 | 279 | 1300 | 671 |
| 1590 | 1710 | 950 | 950 | 279 | 1378 | 689 |
| 1740 | 1800 | 1000 | 1000 | 300 | 1454 | 704 |
| 1920 | 1850 | 1050 | 1050 | 312 | 1454 | 717 |
| 2100 | 1890 | 1050 | 1050 | 312 | 1454 | 736 |
| 2280 | 2010 | 1050 | 1050 | 312 | 1514 | 764 |
| 2460 | 2010 | 1100 | 1100 | 324 | 1584 | 794 |
| 2640 | 2070 | 1150 | 1150 | 352 | 1584 | 804 |
| 2850 | 2070 | 1150 | 1150 | 352 | 1650 | 820 |
| 3060 | 2160 | 1200 | 1200 | 360 | 1650 | 834 |
| 3300 | 2155 | 1200 | 1200 | 360 | 1650 | 834 |
| 3540 | 2350 | 1200 | 1200 | 360 | 1850 | 880 |
| 3780 | 2430 | 1350 | 1350 | 393 | 1850 | 917 |
| 4050 | 2430 | 1350 | 1350 | 393 | 1926 | 930 |
| 4320 | 2520 | 1400 | 1400 | 413 | 1926 | 930 |
| 4590 | 2520 | 1400 | 1400 | 413 | 1926 | 931 |
| 4890 | 2520 | 1400 | 1400 | 413 | 2000 | 954 |
| 5250 | 2610 | 1450 | 1450 | 414 | 2000 | 964 |
| 5610 | 2610 | 1450 | 1450 | 414 | 2060 | 981 |
| 6000 | 2700 | 1500 | 1500 | 446 | 2060 | 1006 |
| 6450 | 2700 | 1500 | 1500 | 446 | 2138 | 1028 |
| 6900 | 2790 | 1550 | 1550 | 456 | 2138 | 1034 |
| 7350 | 2790 | 1550 | 1550 | 456 | 2138 | 1062 |
| 7800 | 2920 | 1550 | 1550 | 456 | 2332 | 1126 |
| 8300 | 3060 | 1700 | 1700 | 510 | 2332 | 1156 |
| 8700 | 3060 | 1700 | 1700 | 510 | 2332 | 1169 |
| 9300 | 3060 | 1700 | 1700 | 510 | 2332 | 1188 |
| 9900 | 1700 | 1700 | 1700 | 510 | 2332 | 1188 |
| 10500 | 1770 | 1770 | 1770 | 531 | 2440 | 1212 |
| 11100 | 1770 | 1770 | 1770 | 531 | 2440 | 1237 |
| 11700 | 1770 | 1770 | 1770 | 531 | 2440 | 1279 |
| 12300 | 1910 | 1910 | 1910 | 573 | 2632 | 1279 |
| 12900 | 1910 | 1910 | 1910 | 573 | 2632 | 1316 |
| 13500 | 1910 | 1910 | 1910 | 573 | 2632 | 1353 |
| 14100 | 1910 | 1910 | 1910 | 573 | 2632 | 1369 |
| 14700 | 2050 | 2050 | 2050 | 615 | 2824 | 1369 |
| 15400 | 2050 | 2050 | 2050 | 615 | 2824 | 1387 |
| 16100 | 2050 | 2050 | 2050 | 615 | 2824 | 1387 |
| 16900 | 2120 | 2120 | 2120 | 636 | 2922 | 1415 |
| 17800 | 2120 | 2120 | 2120 | 636 | 2922 | 1431 |
| 18800 | 2190 | 2190 | 2190 | 657 | 3018 | 1461 |
| 20000 | 2190 | 2190 | 2190 | 657 | 3018 | 1493 |
| 26000 | 2360 | 2360 | 2360 | 716 | 3258 | 1628 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
