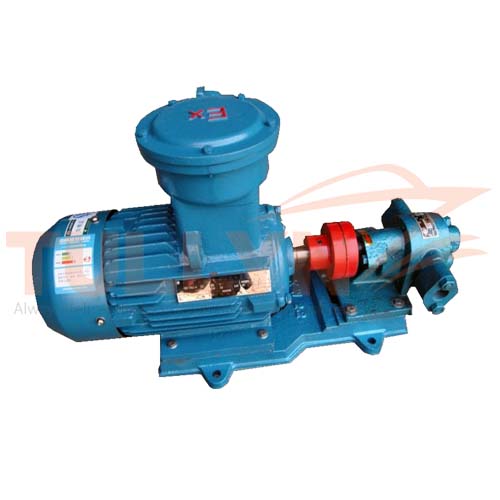

2CG Series Hard-tooth Surface Residue Oil Pump
2CG Series Hard-tooth Surface Residue Oil Pump Application
2CG Series Hard-tooth Surface Residue Oil Pump could transport mostly all kinds of medium with bad lubrication and imperceptible grains, and the temperature below 200 C degree, the viscid dimension below 1500cst.
It can transport such medium as dreg oil, coal tar, falling oil, bubble stuff, additive and so on so forth. At the same time, it is the perfect transportation and pressure equipment for glass, bubble, building material, chemical industry, architecture, petroleum, eatable oil.
2CG Series Hard-tooth Surface Residue Oil Pump Specification
| Model | Flow Capacity | Pressure | Suction Vacuum | Port Size | Motor Power | |
| m3/h | L/min | Mpa | m | mm | KW | |
| 2CG-1 | 1 | 16.7 | 1.0/1.6 | 5 | 25 | 1.5 |
| 2CG-1.5 | 1.5 | 25 | 1.0/1.6 | 5 | 25 | 1.5/2.2 |
| 2CG-2 | 2 | 33.3 | 1.0/1.6 | 5 | 25 | 2.2/3 |
| 2CG-3 | 3 | 50 | 1.0/1.6 | 5 | 25 | 3 |
| 2CG-5 | 5 | 83.3 | 1.0/1.6 | 5 | 40 | 4 |
| 2CG-6 | 6 | 100 | 1.0/1.6 | 5 | 40 | 4 |
| 2CG-7.5 | 7.5 | 125 | 1.0/1.6 | 5 | 50 | 5.5 |
| 2CG-10 | 10 | 167 | 1.0/1.6 | 5 | 50 | 5.5/7.5 |
| 2CG-12 | 12 | 200 | 1.0/1.6 | 5 | 55 | 5.5/7.5 |
| 2CG-15 | 15 | 250 | 1.0/1.6 | 5 | 55 | 7.5 /11 |
| 2CG-18 | 18 | 300 | 1.0/1.6 | 5 | 55 | 7.5/11 |
| 2CG-18 | 18 | 300 | 1 | 4.5 | 70 | 7.5 |
| 2CG-29 | 29 | 483.3 | 1 | 4.5 | 70 | 11 |
| 2CG-38 | 38 | 633 | 1 | 4 | 100 | 22 |
| 2CG-58 | 58 | 960 | 1 | 3.5 | 100 | 30 |
| 2CG-72 | 72 | 1200 | 0.6 | 4 | 150 | 37 |
| 2CG-96 | 96 | 1600 | 0.6 | 4 | 150 | 45 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
