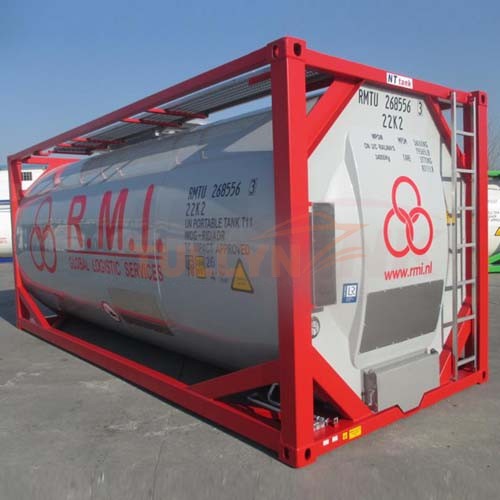

20ft ISO Milk Tank Container
20ft ISO Milk Tank Container Application
The milk tank container is a 20 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These 20ft ISO Milk tank Containers are approved by international statutory authorities for the safe transportation of various hazardous and non-hazardous chemicals, pharmaceuticals, food products like fruit juices, milk and beverages.
We can supply 25,000-litre ISO bulk milk tank containers. Our milk tank is separated for four purposes: tank containers for milk storage, short-sea, deep-sea shipping and rail transportation.
All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.
Electrical Heated Tank Container Application
| Tank Type | 20’ ISO full-frame collar tank, Type UN Portable Tank T11,
insulated, steam heated, for food grade cargo |
|
| Frame Dimensions | 20’ x 8’ x 8’6” | |
| Capacity | 26,000 Litres +/- 1% | |
| M.G.W. | 36,000 kg | |
| Tare (est.) | 3,800 kgs ±3% | |
| Max Payload | 32,230 kgs | |
| Working Pressure | 4 Bar | |
| Test Pressure | 6 Bar | |
| Design Temp | -40°C to +130°C | |
| Vessel Material | SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), 316L stainless steel equivalent
Shell: Cold Rolled 2B finish Dished ends: Internally polished to 1.2 Micron CLA |
|
| Shell Thickness | Calculated thickness: 4.18mm min.
Corrosion allowance: 0.2mm Manufacturing thickness: 4.4mm min. |
|
| Ends Thickness | Calculated thickness: 4.4 mm Minimum after forming
Corrosion allowance: 0.2mm Manufacturing allowance: 4.6mm Minimum after forming. |
|
| External pressure | 0.41 Bar | |
| Corner castings | SO 1161 – 8 off | |
| Frame Material | GB/T 1591-Q345D | |
| Frame to Shell | 304 stainless steel | |
| Corner castings | ISO 1161 – 8 off | |
| Vessel Design Code | ASME VIII Div 1 | |
| Radiography | Shell
Ends |
ASME Spot
ASME Full |
| Inspection Agency | LR or BV | |
| Cargo carried | Milk and milk products, concentrated and single strength fruit juices, vegetable oils, spirits, wine, chocolate, alcohol, beverage preparations, essences; hot or cold bulk liquids, any other food grade cargo | |
| Design Approvals |
IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT |
|
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
