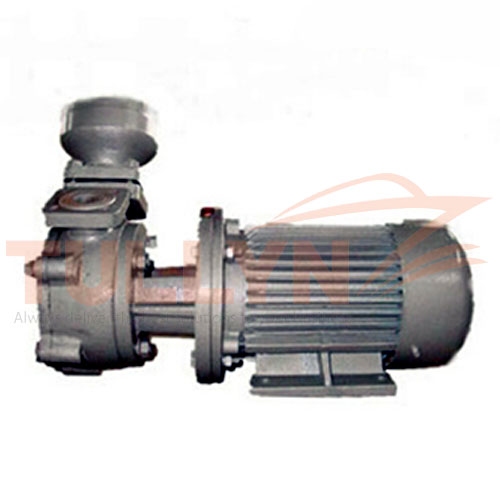

1W(Z) Series Portable Self-Priming Fresh Water Vortex Pump
1W(Z) Series Portable Self-Priming Fresh Water Vortex Pump Application
1W(Z) Series Portable Self-Priming Fresh Water Vortex Pump is designed to transport different kinds of living water such as drinking water, cleaning water as well as the salty water from the ocean, but the temperature is not more than 85 Celsius degree.
The design of our vortex water pump is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society’s requirement. Therefore, ABS, DNV, CCS, NKK, LR, GL, BV, RINA are available for our products.
1W(Z) Series Portable Self-Priming Fresh Water Vortex Pump Specification
| Type | Capacity | Head | Speed | NPSHr | Motor Power |
| m3/h | m | r/min | m | kw | |
| 1WZ-0.9 | 1 | 37 | 1400 | 3.5 | 1.5 |
| 1WZ-0.9 | 1.8 | 25.5 | 1400 | 3.5 | 1.5 |
| 1WZ-0.9 | 2.5 | 15 | 1400 | 3.5 | 1.5 |
| 1WZ-O.9(Z) | 1 | 37 | 1400 | 3.5 | 1.5 |
| 1WZ-O.9(Z) | 1.8 | 25.5 | 1400 | 3.5 | 1.5 |
| 1WZ-O.9(Z) | 2.5 | 15 | 1400 | 3.5 | 1.5 |
| 1WZ-3 | 3 | 10 | 1450 | 3.5 | 0.75 |
| 1WZ-3(Z) | 3 | 10 | 1450 | 3.5 | 0.75 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
